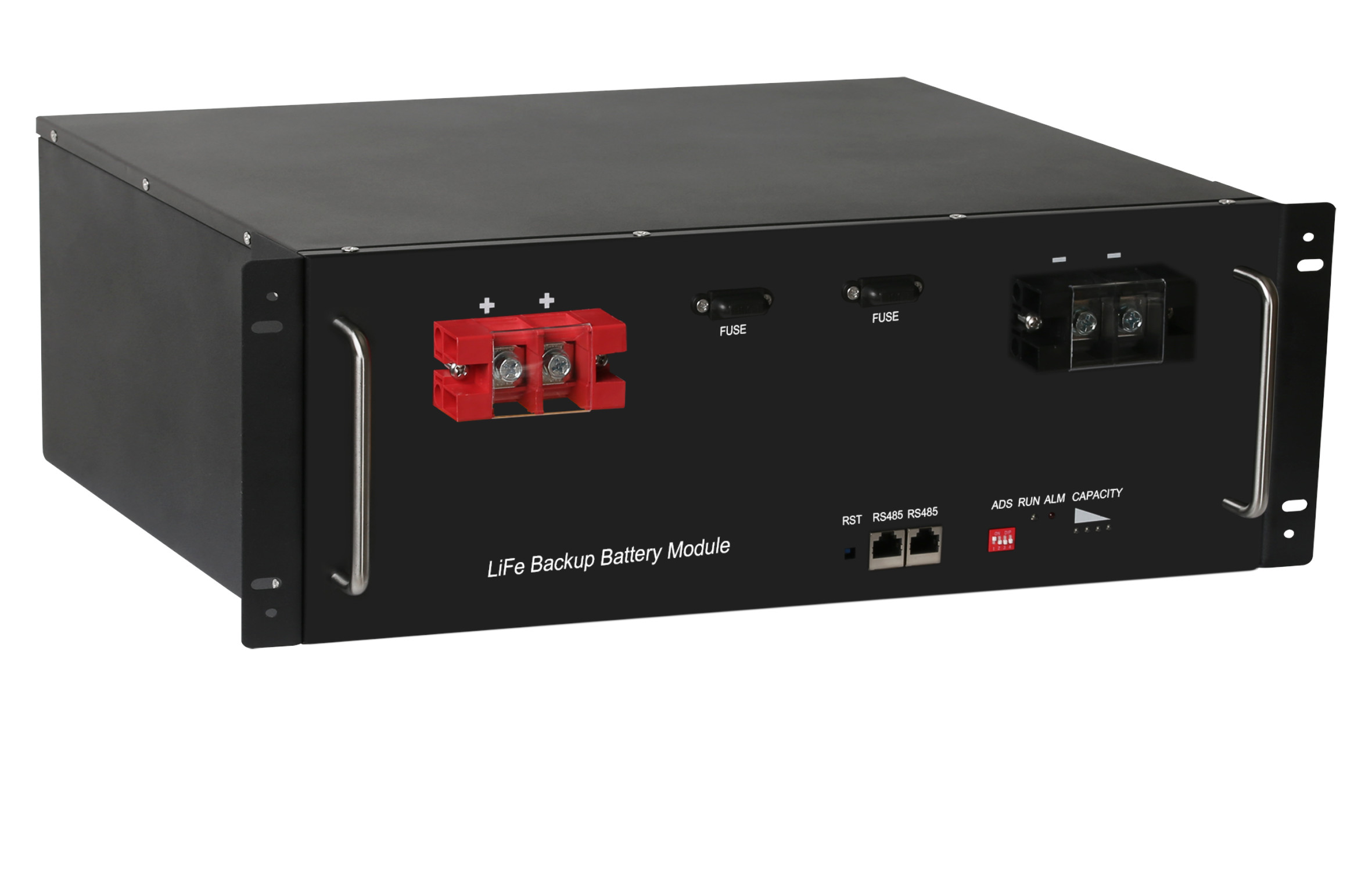

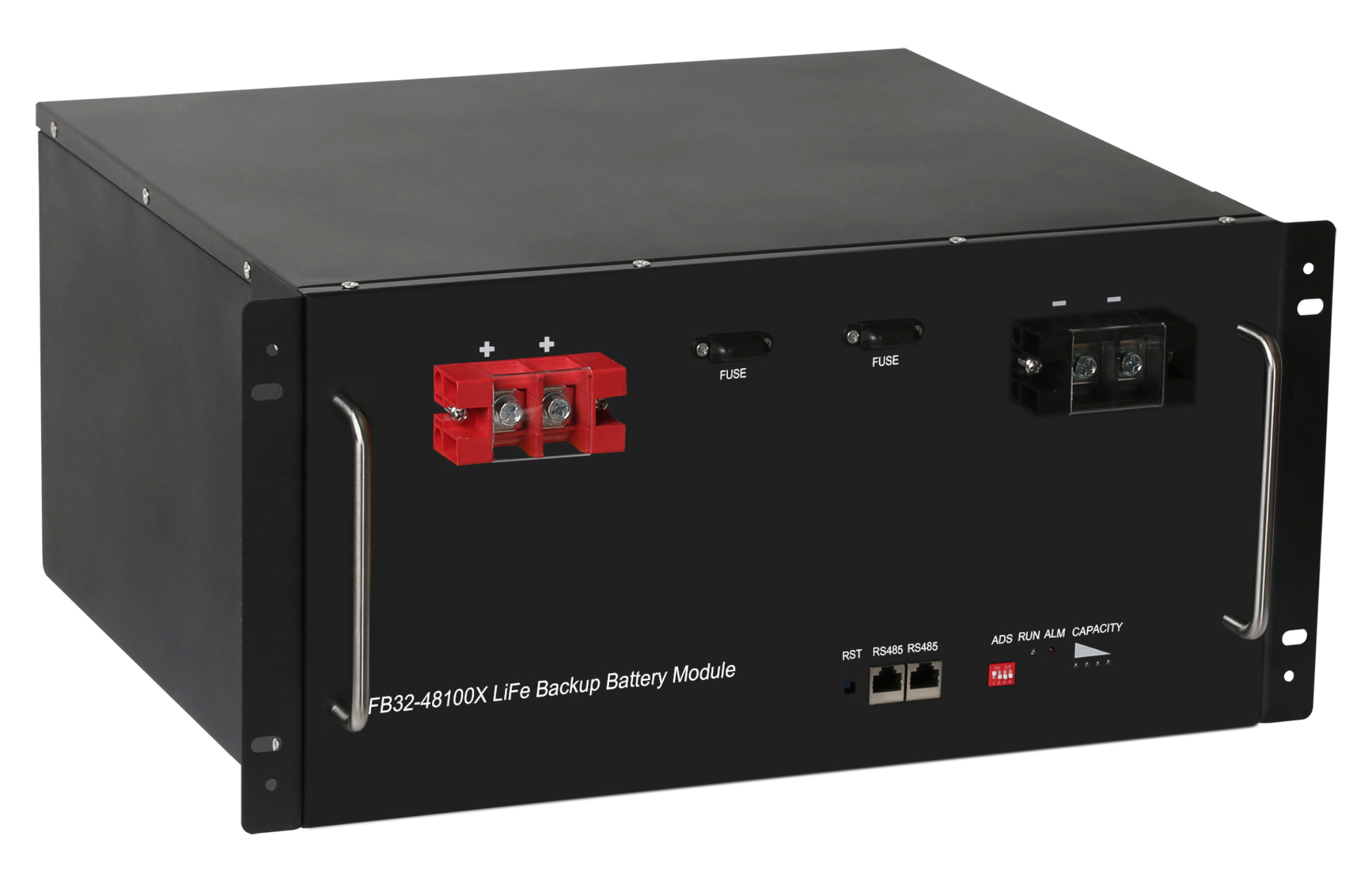

Alumium Shell 1U 2U 5U 48V 100AH Lifepo4 Battery Pack
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Blue | Warranty | 2 Years |
|---|---|---|---|
| Place Of Origin | Guangdong China | Type | Rack 1U 2U 5U |
| Battery Type | Lifepo4 Battery Pack | Material | Lifepo4 With Alumium Shell |
| Cycle Life | 3000 Times | Model Number | 48v 100ah |
| Highlight | 5U Lifepo4 Battery Pack,100AH Lifepo4 Battery Pack,48V Li Ion Battery Pack |
||
Product Description
lithium battery 12V7AH 3.2V 12V 24V 48V lifepo4 battery pack
With 2 Years Warranty for UPS, Solar, Telcom
| Model | GBS-LFP30Ah-A | GBS-LF40Ah-B |
| Rated Capacity | 30Ah | 40Ah |
| Nominal Voltage | 3.2V | 3.2V |
| Internal Impedance | ≤1.0mΩ | ≤0.6mΩ |
| Standard Charge | 0.25C | 0.25C |
| Quick-arting Charge | 1.0C | 1.0C |
| Charge cut off voltage | 3.55V | 3.55V |
| Standard Discharge | 0.5C | 0.5C |
| Maximum continuous discharge | 3.0C | 3.0C |
| Instantaneneous Discharege | 5C | 5C |
| End of Dischage | 2.5V | 2.5V |
| Work temperature | -20~65℃ | -20~65℃ |
| Cycle life(times) | ＞3000CYCLES(0.5C) | ＞3000CYCLES(0.5C) |
| Weight(kg) | 0.8±0.1kg | 1.5±0.1kg |
| Dimensions(mm) | 126*21*216±1mm | 126*46*188±1mm |
Safety Advantage
Air vent with double protection functions ensures safety
The World's first controllable air vent with double protection functions is a patented product. It exhausts and opens automatically in one-way mode at different pressure.
Good insulation and lightning resistance in the wild
Plastic shell has good insulations.Cells can be assembled into a DC-high voltage battery pack directly. Insulation ability is not affected by air humidity.Good anti-lightning performance without grounding.Not easy to generate static electricity and cause accidents due to friction generated by electric sparks.
Decompression design in special circumstances
Plasitic shell has low melting point(170℃).It melts and makes decompression automatically in the extreme conditions to ensure.
Company Introduction
-
G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.
The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.
OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.
After 17 years of efforts, we have been extended to more and more consumers. Our products are widely used in finance, securities, energy, telecommunications, transportation, communications, traffic, industrial enterprises, data center and home usage by personal purpose.
We warmly welcome friends from all over the world to explore and negotiate with us, To build a mutual benefit and win-win friendly cooperate relationship!
-
