Place of Origin:
China
Brand Name:
G-Tech
Certification:
CE ROHS
Model Number:
GBSFP24230T

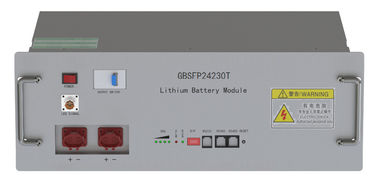

Lithium ion phosphate battery LFP 24V 230Ah LiFePO4 Battery
24V 230Ah LiFePO4 Battery Pack Good Cycle Life Time For Solar Energy Off-grid photovoltaic energy storage system
| Model | GBS-FP24230T | |
| Rated Capacity | 230Ah | |
| Nominal Voltage | 24V | |
| Work temperature | -20~65℃ | |
| Cycle life(times) | ＞3000CYCLES | |
| Weight(kg) | 58 kg | |
| Dimensions(mm) | 482*450*222mm |
Safety Advantage
Air vent with double protection functions ensures safety
The World's first controllable air vent with double protection functions is a patented product. It exhausts and opens automatically in one-way mode at different pressure.
Good insulation and lightning resistance in the wild
Plastic shell has good insulations.Cells can be assembled into a DC-high voltage battery pack directly. Insulation ability is not affected by air humidity.Good anti-lightning performance without grounding.Not easy to generate static electricity and cause accidents due to friction generated by electric sparks.
Decompression design in special circumstances
Plasitic shell has low melting point(170℃).It melts and makes decompression automatically in the extreme conditions to ensure.
Basic Performance
1. Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
2. Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.
3. Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.
4. Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
5. Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).
6. It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.
7. Low cost.
8. No pollution during manufacture and usage.
At present, the company has established four production bases in Jiangsu, Anhui, Shandong and Hubei province.
The Jiangsu base covers an area of 89,000 square meters, which is a full-industrial chain production base that integrates plates and battery assembly;
The Anhui base covers 330,000 square meters, which is diversified. Lead-all-metal processing, plate, battery and lithium battery assembly as a whole production chain production base;
The Shandong base covers 33,000 square meters, is a small dense battery assembly base;
The Hubei base covers 33,000 square meters, is a high-end OPzV, OPzS battery assembly base.
