3Kva High Frequency Online UPS

Basic Information
Place of Origin: China
Brand Name: G-Tech
Certification: CCC;CE;Rohs;ISO
Model Number: RT3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Detail Information
Product Name: 3Kva/3000w High Frequency Online UPS Rack UPS Power Factor: 1.0
Mount Way: Rack Type Wave Form: Pure Sine Wave
Application: Computer, Telecommunications, Networking, Security, Monitoring Phase: One Phase
Highlight:

3Kva High Frequency Online UPS

,

3000w High Frequency Online UPS

,

3Kva high frequency ups


Product Description

3Kva High Frequency Online UPS



3Kva/3000w High Frequency Online UPS rack UPS





High Power factor 1.0 High Frequency Uninterruptible Power supply 1KVA-10KVA

Single Phase rack type online UPS High Frequency Ups

This series of UPS applies CPU integrated control technology, which allows UPS to response promptly and accurately when power outage, high or low voltage, surge, transient or spike occurs so on. It possesses automatic startup function, automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kind of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are two alternatives.



  • Feature

  • *  High output power factor 1.0

    * True double-conversion

    * Microprocessor control optimized reliability

    * Input power factor correction

    * Wide input voltage(110V-300V)

    * Converter mode available

    * Generator compatible

    * Smart SNMP works well with either USB or RS232

    * Charger capacity expansion to 1~12A (settable) for long-run models, built in battery default in 1A;



Production Introduction

This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds

of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.

Model #

RT3000



Capacity

3KVA/3000W

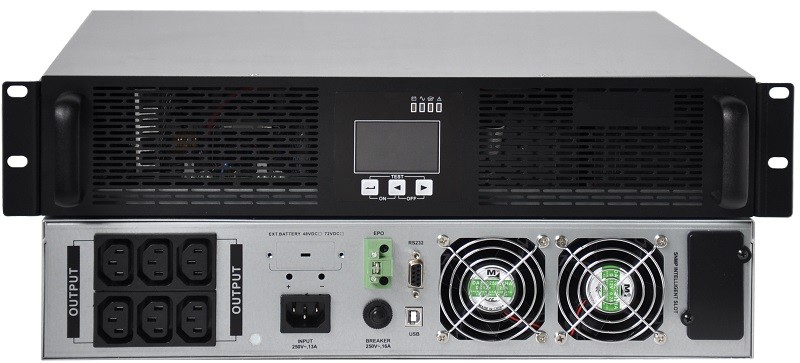

Front panel

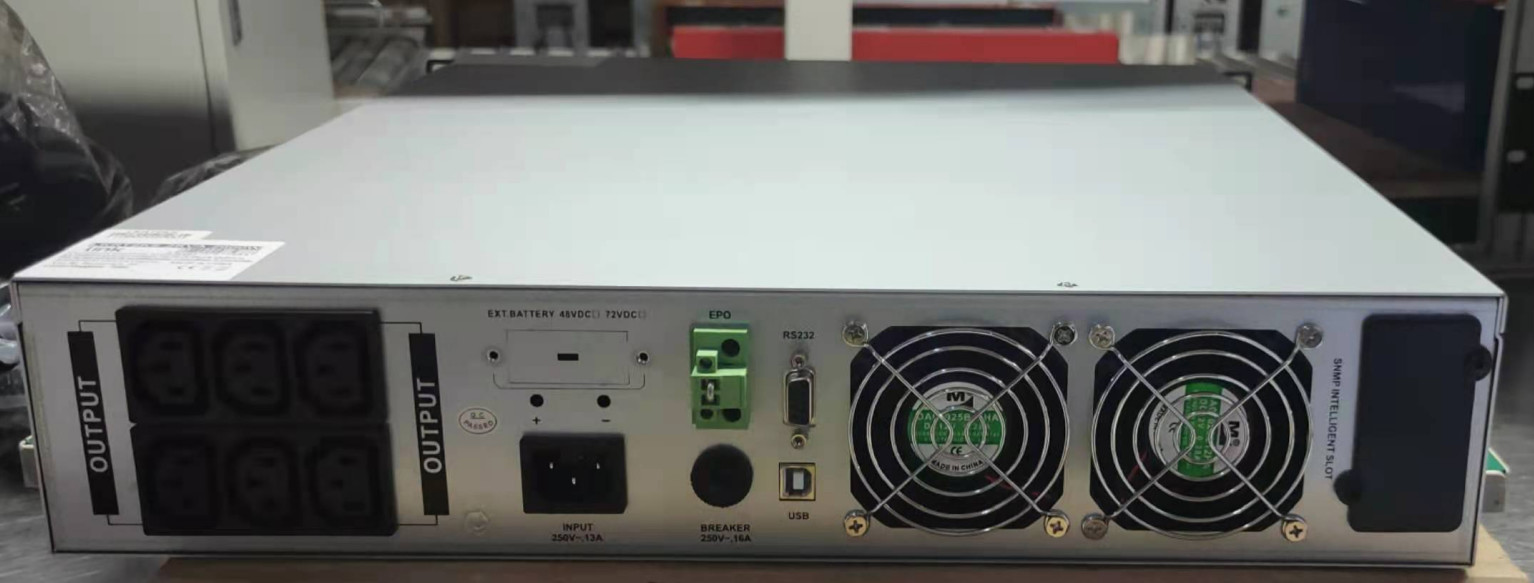

Rear panel



Display

LCD

INPUT

Input voltage range



110~300VAC,110~176VAC,280~300VAC(power limited)



Input frequency range



50/60Hz±6Hz,± 10Hz (setable)

OUTPUT

Output voltage range

208/220/230/240VAC

Output frequency

AC mode: same as AC ,Battery mode:50/60Hz±1%

Wave form

Pure Sinewave

Transfer time

0ms

BATTERY

QTY & capacity of battery

6pcs*12V  7Ah



Charging period

4~6 hours recover to 90% capacity

PROTECTION & FUNCTION

PROTECTION

1. Battery low voltage protection
2. Overload protection
3. Short circuit protection

MANAGEMENT

RS232 & USB &

EPO



Optional
