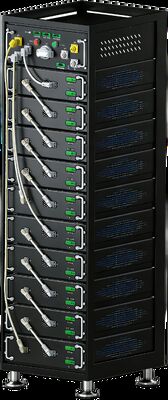

G TECH 512V High Voltage 102.4KWH LiFePO4 Battery with 6000 Long Cycle Life for Solar Energy Storage

Serial number

project

Common parameters

Remark

NO.

Item

General Parameter

Remark

1

Name​​

High voltage lithium battery system

HV Battery System

2

Model​​

HV512-200​

3

Rated voltage

512V

4

Rated capacity (0.5C )

2 00Ah

Ambient temperature 25±2℃

The ambient temperature is 25±2℃　

Rated capacity ( 0.5C )

5

Rated energy​

102.4 kWh

6

Maximum charging voltageMax Charge voltage

576V

7

Discharge cut-off voltage

432V

8

Rated continuous charge and discharge current

Rated Continuous Charge and discharge current

100 A

Ambient temperature 25±2℃

The ambient temperature is 25±2℃

9

Maximum continuous charge and discharge current

Max Continuous Charge and discharge current

2 00 A

1 0

Rated power

102.4 KW

1 1

Maximum power

102.4 KW

1 2

Cooling methodCooling method

Natural cooling

13

Battery weight ( Approx.)

≈ 1200 Kg

Weight(Approx including case)

14

Internal resistance (Max, at 1000Hz. )

≤ 200mΩ​

Impedance ( Max, at 1000Hz. )

1 5

Communication method

C AN

1 6

Cell cycle life Cycle Life

≥ 4 000 times

25±2 ℃ , 100%DOD, 0.5C/0.5C cycle until capacity decays to 80 % rated capacity

1 7

Protection level

IP20

18

Battery Shipping SOC

 50% ± 5% SOC

19

Application scenarios

UPS​

20

Operating temperature

Charge

0 ℃～55℃

discharge

-20 ℃～ 55 ℃

Storage

-20 ℃～ 45 ℃
