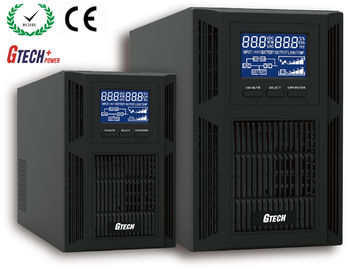

PT Series 1-10KVA True double-conversion onine UPS Tower Mount Type

• Feature
• True double-conversion online UPS
• Microprocessor control optimizes reliability
• Output power factor:0.9
• Wide input voltage range
• Generator compatible
• Charger Capacity expansion to 6A for long-run models.
• Smart Communication program works well with either USB or RS232 together.

Online High Frequency

Production Introduction

This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds

of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.

•

•

• Model	PT-1KS	PT-2KS	PT-3KS	PT-6KS	PT-10KS	PT-15KL	PT-20KL
  Capacity	1000VA/900W	2000VA/1800W	3000VA/2700W	6000VA/5400W	10000VA/9000W	15000VA/13500W	20000VA/18000W
  INPUT
  Frequency Range	Transfer:160VAC 5%-300VAC 5%			46-54Hz same as AC(AC mode)
  	No-load: 110VAC 5%-300VAC 5%
  Phase	Single phase with ground			Single phase dual wires+Earth wire		Three phase four wires+earth wire
  OUTPUT
  Voltage	220VAC±2%VAC
  Frequency Range	47-53Hz or 57-63Hz(Synchronized range)			50-60Hz Automatic sensing(AC Mode)
  	50Hz±0.25Hz or60Hz±0.3Hz(Batt.mode)
  Currrent crest factor	3:1
  Wave Form	Pure Sine Wave
  Battery
  Capacity of battery	12V/7-9AH			12V/7.5AH		-------------------------
  QTY	2-3PCS	6-8PCS	6-8PCS	16PCS		External battery
  Transfer time	0ms
  PHYSICAL
  Dimension(mm)	350*145*230	410*190*325		500*248*616
  Net weight(kg)	8.9/11.1	23.25/10.07	23.57/10.12	57	67.5	35	35
  Management
  Interface	RS232,Interlling Slot Selectable
