Place of Origin:
China
Brand Name:
G-TECH
Certification:
CE/RoHS/ISO
Model Number:
XL Series

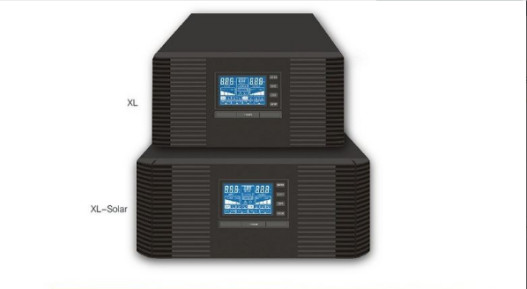

XL Series 500W-4000W Pure Sine Wave Home Inverters, 4-Step AVR, AC/Solar Power Charging
Specification:
|
Model
|
XL-600
|
XL-800
|
XL-1000
|
XL-1200
|
XL-2000
|
XL-3000
|
XL-4000
|
XL-5000
|
||
| Capacity |
600VA / 500W |
800VA/ 640W |
1000VA/ 800VA |
1200VA/ 1000W |
2000VA/ 1600W |
3000VA/ 2400W |
4000VA/ 3200W |
5000VA/ 4000W |
||
| Power factor 0.8 | ||||||||||
| Input | ||||||||||
|
Voltage range (INV,mode) |
100-290Vac ± 5 Vac | |||||||||
|
Voltage range (UPS,mode) |
145-270Vac ± 5 Vac | |||||||||
| Frequency | 45-65Hz | |||||||||
| Output | ||||||||||
|
Voltage range (INV,mode) |
150-255Vac ± 5Vac | |||||||||
|
Voltage range (UPS,mode) |
203-238Vac ± 5Vac | |||||||||
| Frequency | 50±0.1Hz (Batt. mode) | |||||||||
| Wave form | Pure sine wave (Batt. mode) | |||||||||
| Transfer time | < 10ms | |||||||||
| Battery (12V/24V) | ||||||||||
|
Charging Current(AC) |
10A/20A Max. | |||||||||
|
Type of battery (Optional) |
GEL/sealed lead acid/open lead acid | |||||||||
| Physical | ||||||||||
| Net weight (kg) | 7.6 | 9.8 | 10.8 | 12.2 | Updating | |||||
| Net weight(kg) | 7.9 | 10.1 | 11.1 | 12.5 | Updating | |||||
|
Dimension (mm) |
290*255*120 | |||||||||
| Environment | ||||||||||
|
Operating Enviroment |
Temperature 0 ºC~40ºC Humanity 20%~90% |
|||||||||
| Noise level | ≤40dB(1m) | |||||||||
| RJ45/11&USB | Optional | |||||||||
Product specifications are subject to change without notice.
