Power Backup pure sine wave UPS Tower Type with ABS/Metal material for POS machine
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Power Backup For Computer,Laptop... | Mount Way | Tower Type |
|---|---|---|---|
| Protection | Overvoltage | Type | Line Interactive |
| Color | Black | Output Wave Form | Sine Wave |
| Material | ABS/Metal | ||
| Highlight | ups backup power supply,ups unit power supply,POS machine pure sine wave UPS |
||
Product Description

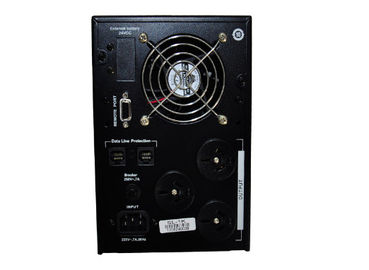

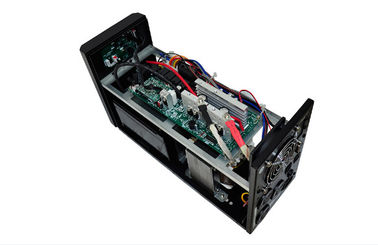

SL Series 1KVA~5KVA Line-interactive UPS Pure Sine Wave Tower Type
- SL series UPS applies CPU intergrated control technology with pure sine wave output. Its input voltage range is wide and its
- transfer speed is fast. It possesses automatic voltage regulation function and different charging current is optional. Long backup
- time models are available, which can be connected to external batteries as per user's actual need, so back up time will be unlimited.
Field of application
Applicable to household PC, office euquipment in enterprise and institution, small communication switchborad and server, LAN device,
commerical POS machines, small workstation and its peripheral equipment, banking terminal, ATM system and so on.
- Line-interactive UPS
- LCD or LED display optional
- 145-275V AC input
- 200-240V AC output
- Product description: 1KVA~5KVA Line-interactive Pure Sine Wave No Break Power Systems OEM/ODM Supply
-
Feature
2 CPU Controlled
Pure Sine Wave output
Compatible with generator
Automatically transferred to Batt.Mode when input over/low voltage
Connect to external battery for long power supply
RJ11/45, RS232/USB (Optional)
-
Specifications
|
Model |
1KL |
1.5KL |
2KL |
3KL |
5KL |
| Capacity | 1000VA/700W | 1500VA/1050W | 2000VA/1400W | 3000VA/2100W | 5000VA/3500W |
|
Display |
LCD/LED(Optional) | ||||
|
AC Mode |
|||||
|
Input |
|||||
|
Voltage |
145-275VAC |
||||
|
Frequency |
45-65Hz |
||||
|
Output voltage |
200-240VAC |
||||
|
Inverter Mode |
|||||
|
Output voltage |
220V±5% |
||||
|
Output Frequency |
50±0.5Hz |
||||
|
Power Factor |
0.7 |
||||
|
Output wave form |
Pure Sine Wave |
||||
|
Transfer Time |
Typical 2-6ms, 10ms Max |
||||
|
Overload capacity |
if 110%, then shut down within 60sec; if 120%, then shut down within 5 sec. |
||||
|
Battery |
Sealed maintenance-free lead-acid batteries |
||||
|
DC Voltage |
24VA | 48VA | 48VA | ||
|
Qty & capacity of Battery |
12V/7A*2 |
12V/9A*2 |
12V/7A*4 | 12V/9A*4 | External Battery |
| Physical | |||||
| Net Weight(kg) | 23.8 | 25.6 | 30.2 | 34.5 | 41.5 |
| Dimension(mm) | 405*145*220 | 455*195*330 | |||
| USB&RS232 | Optional | ||||
Founded In the early 2005, as an UPS/Inverter/VRLA Battery Manufacturer on the market, G-Tech has worked closely with his customers and helped them boost their business for more than 14 years.
Now, we are looking forward to exploring and discovering more opportunities with our customers, and move on to the next 30 years of successful business.
