Single Phase 2KVA High Frequency Ups Powerful Charging Current For High Capacity Battery

Single Phase 2KVA High Frequency Ups Powerful Charging Current For High Capacity Battery

online ups system

uninterrupted power supply ups

Place of Origin:

China

Certification:

CCC;CE;Rohs;ISO

Model Number:

PT

Contact Us
Request A Quote
Product Details
Brand Name:
G-Tech
Mount Way:
Rank
Material:
ABS/Metal
Color:
Black
Wave Form:
Sine Wave
Phase:
Single Phase
Payment & Shipping Terms
Minimum Order Quantity
500
Price
Negotiation
Packaging Details
Carton
Delivery Time
25 days
Payment Terms
L/C, T/T
Product Description

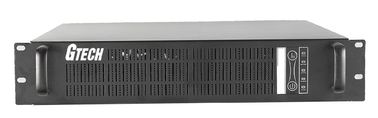

RT Series 2KVA True double-conversion onine UPS Rack Mount

  • True Double-conversion online UPS
  • Slience Function
  • Pure sine wave output
  • Output power factor 0.9
  • Generator Compatible
  • High frequency Online UPS
  • Mircroprocessor control optimizes reliablity
  • 2KVA Online high frequency UPS
  • USB Port, RS232, SNMP Slot, DB9 port, dry contact

Automatically transferred to battery mode when input over voltage or under voltage

Output overload and short circuit protection

can be connected to external battery for longer power supply

Powerful charging current for high-capacity battery.

Rank Mountable type



Product Introduction

This series UPS applies CPU integrated control technology, which allows UPS to response promptly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its surge protection port provides protection for special external devices, such as printers and so on. It possesses automatic startup function, automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds of electric power enviroment. In addition, its design is humanized and elegant with LED or LCD display, those are two alternatives.

  •
  • Single Phase 2KVA High Frequency Ups Powerful Charging Current For High Capacity Battery 0

  • Model # RT-2KS
    Rated Power 2000KVA/1800W
    Display LCD
    INPUT
    Voltage Range Transfer 160VAC±5% or 300VAC±5%
    No-load 110VAC±5% or 300VAC±5%
    Frequency 40-70Hz
    OUTPUT
    Output Voltage 220VAC



    Frequency


    47-53Hz or 57-63Hz(Synchronized Range)
    50Hz±0.25Hz or 60Hz±0.3Hz(Battery Mode)
    Wave Form Pure Sine Wave
    BATTERY
    QTY &capacity of Battery

    Battery Pack

    6pcs*12V/7AH



    External Battery Norminal DC ----------------------------------------------
    Transfer Time 0ms
    Overload Capacity

    105%-110%:Only a warning

    110%-130%:UPS shut down after 1min at battery mode or transfer to bypass when the untility is normal

    >130%:UPS shut down immediately at battery mode or transfer to bypass when the untility is normal

    Interface 220V:RJ45/11+RS232,USB or SNMP Solt selectable (optional)
    Protection
    Protections

    Auto re-start when AC recovers;

    Slient Set-up;

    Automatical Charging(Offline Charging);

    Battery Low voltage protection;

    Over-load and short circut protection

    PHYSICAL
    Unit Dimension(mm) 482*87*420
    Gross Weight 12.5
    Net weight(kg) 9.1
                              Power Factor:0.9
    Certificate CE Approved
    EMC Directive EN62040-2,EN61000-3-2
    LVD Directive EN62040-1



  •
  •
