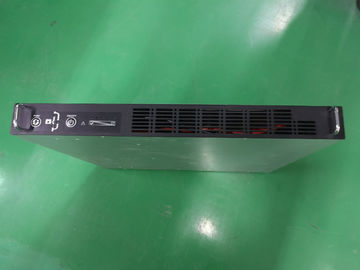

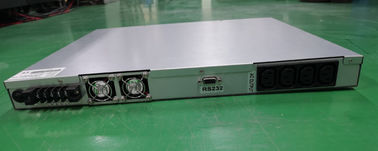

RT Series 3KVA True double-conversion onine UPS Rack Mount

• True Double-conversion online UPS
• Slience Function
• Pure sine wave output
• Output power factor 0.9
• Generator Compatible
• High frequency Online UPS
• Mircroprocessor control optimizes reliablity
• 3KVA Online high frequency UPS
• USB Port, RS232, SNMP Slot, DB9 port, dry contact

Automatically transferred to battery mode when input over voltage or under voltage

Output overload and short circuit protection

can be connected to external battery for longer power supply

Powerful charging current for high-capacity battery.

Rank Mountable type

Product Introduction

This series UPS applies CPU integrated control technology, which allows UPS to response promptly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its surge protection port provides protection for special external devices, such as printers and so on. It possesses automatic startup function, automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds of electric power enviroment. In addition, its design is humanized and elegant with LED or LCD display, those are two alternatives.

•

•

• Model #	RT-3KS
  Rated Power	3000KVA/2700W
  Display	LCD
  INPUT
  Voltage Range	Transfer	160VAC±5% or 300VAC±5%
  	No-load	110VAC±5% or 300VAC±5%
  Frequency	40-70Hz
  OUTPUT
  Output Voltage	220VAC
  Frequency	47-53Hz or 57-63Hz(Synchronized Range)
  	50Hz±0.25Hz or 60Hz±0.3Hz(Battery Mode)
  Wave Form	Pure Sine Wave
  BATTERY
  QTY &capacity of Battery	Battery Pack 6pcs*12V/7AH
  External Battery Norminal DC	----------------------------------------------
  Transfer Time	0ms
  Overload Capacity	105%-110%:Only a warning   110%-130%:UPS shut down after 1min at battery mode or transfer to bypass when the untility is normal ＞130%:UPS shut down immediately at battery mode or transfer to bypass when the untility is normal
  Interface	220V:RJ45/11＋RS232,USB or SNMP Solt selectable (optional)
  Protection
  Protections	Auto re-start when AC recovers; Slient Set-up; Automatical Charging(Offline Charging); Battery Low voltage protection; Over-load and short circut protection
  PHYSICAL
  Unit Dimension(mm)	482*87*420
  Gross Weight	12.7
  Net weight(kg)	9.3
  Power Factor:0.9
  Certificate	CE Approved
  EMC Directive	EN62040-2,EN61000-3-2
  LVD Directive	EN62040-1



•
•
