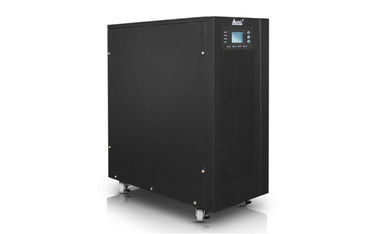

PT Series 2KVA True double-conversion onine UPS Tower Mount Type

• Feature
• True double-conversion online UPS
• Microprocessor control optimizes reliability
• Output power factor:0.9
• Wide input voltage range
• Generator compatible
• Charger Capacity expansion to 6A for long-run models.
• Smart Communication program works well with either USB or RS232 together.

Online High Frequency

Production Introduction

This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds

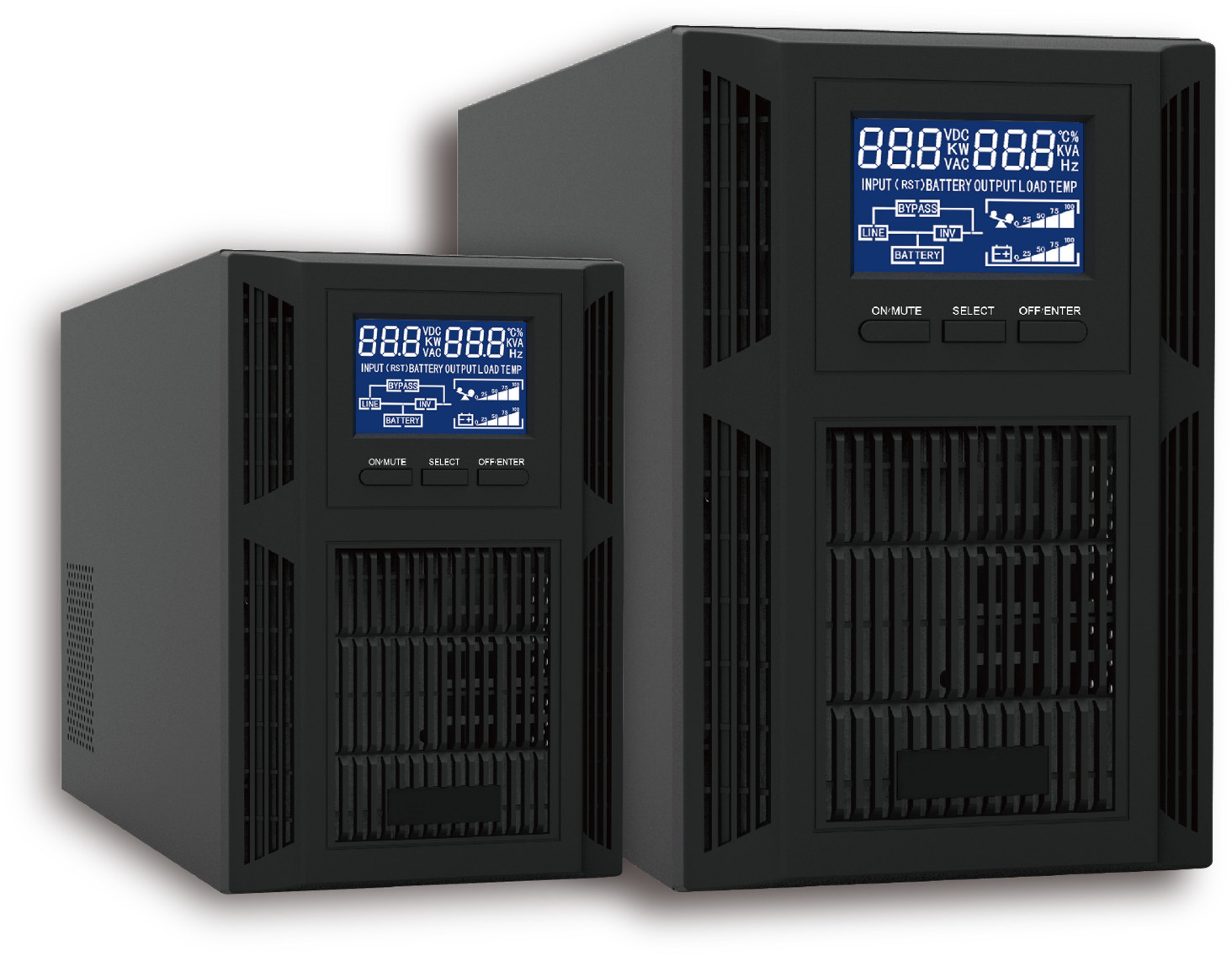

of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.

•

•

• Model	PT-2KS
  Capacity	2000VA/1800W
  INPUT
  Frequency Range	Transfer:160VAC 5%-300VAC 5%
  	No-load: 110VAC 5%-300VAC 5%
  Phase	Single phase with ground
  OUTPUT
  Voltage	220VAC±2%VAC
  Frequency Range	47-53Hz or 57-63Hz(Synchronized range)
  	50Hz±0.25Hz or60Hz±0.3Hz(Batt.mode)
  Currrent crest factor	3:1
  Wave Form	Pure Sine Wave
  Battery
  Capacity of battery	12V/7-9AH
  QTY	2-3PCS
  Transfer time	0ms
  PHYSICAL
  Dimension(mm)	350*145*230
  Net weight(kg)	23.25/28.35	10.07/10.07
  Management
  Interface	RS232,Interlling Slot Selectable

•

Company Introduction

• G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.

  The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.

  OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.

  After 17 years of efforts, we have been extended to more and more consumers. Our products are widely used in finance, securities, energy, telecommunications, transportation, communications, traffic, industrial enterprises, data center and home usage by personal purpose.

  We warmly welcome friends from all over the world to explore and negotiate with us, To build a mutual benefit and win-win friendly cooperate relationship!
