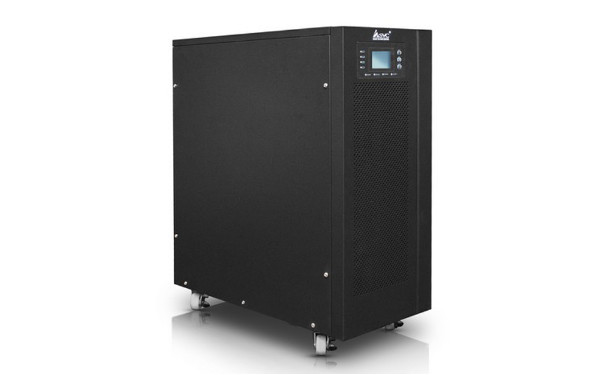

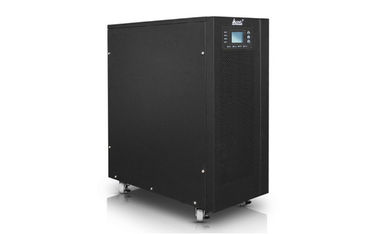

PT Series 3KVA True double-conversion onine UPS Tower Mount Type

• Feature
• True double-conversion online UPS
• Microprocessor control optimizes reliability
• Output power factor:0.9
• Wide input voltage range
• Generator compatible
• Charger Capacity expansion to 6A for long-run models.
• Smart Communication program works well with either USB or RS232 together.

Online High Frequency

Production Introduction

This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds

of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.

•

•

• Model	PT-3KS
  Capacity	3000VA/2700W
  INPUT
  Frequency Range	Transfer:160VAC 5%-300VAC 5%
  	No-load: 110VAC 5%-300VAC 5%
  Phase	Single phase with ground
  OUTPUT
  Voltage	220VAC±2%VAC
  Frequency Range	47-53Hz or 57-63Hz(Synchronized range)
  	50Hz±0.25Hz or60Hz±0.3Hz(Batt.mode)
  Currrent crest factor	3:1
  Wave Form	Pure Sine Wave
  Battery
  Capacity of battery	12V/7-9AH
  QTY	6-8PCS
  Transfer time	0ms
  PHYSICAL
  Dimension(mm)	410*190*325
  Net weight(kg)	23.57/27.97	10.12/10.12
  Management
  Interface	RS232,Interlling Slot Selectable

•
