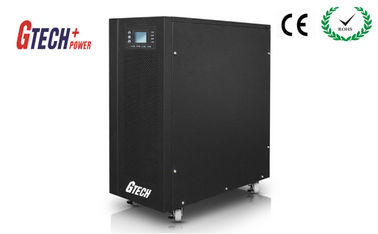

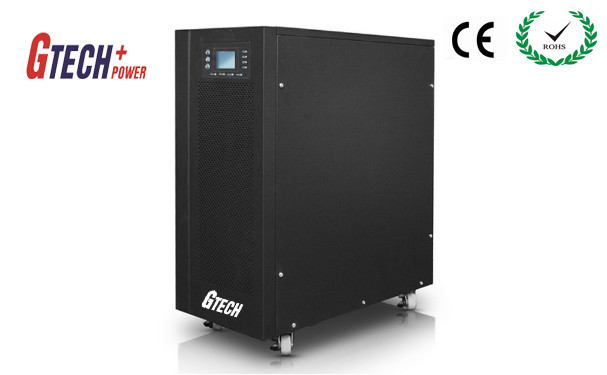

20KVA Online Ups System , UPS Backup Power Supply With LED / LCD Display

20KVA Online Ups System , UPS Backup Power Supply With LED / LCD Display

online high frequency ups

online ups system

Place of Origin:

China

Brand Name:

G-Tech

Certification:

CCC;CE;Rohs;ISO

Model Number:

PT

Contact Us
Request A Quote
Product Details
Material:
ABS
Color:
Black
Mount Way:
Tower Type
Wave Form:
Pure Sine Wave
Payment & Shipping Terms
Minimum Order Quantity
500
Price
Negotiation
Packaging Details
Carton
Delivery Time
25 days
Payment Terms
L/C, T/T
Product Description

PT Series 20KVA backup True double-conversion onine UPS Tower Mount Type

  • Feature
  • True double-conversion online UPS
  • Microprocessor control optimizes reliability
  • Output power factor:0.9
  • Wide input voltage range
  • Generator compatible
  • Charger Capacity expansion to 6A for long-run models.
  • Smart Communication program works well with either USB or RS232 together.

Online High Frequency



Production Introduction

This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds

of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.

  • 20KVA Online Ups System , UPS Backup Power Supply With LED / LCD Display 0
  •

  • ModelPT-20KL
    Capacity20000VA/18000W
    INPUT

     Frequency Range

    46-54Hz same as AC(AC mode)
    Phase3 phases with 4 wires+earth wire
    OUTPUT
    Voltage220VAC±2%VAC
    Frequency Range50-60Hz(Automatic sensing) (AC mode)
    220V:50±0.2HZ(DC mode)
    Currrent crest factor                     3:1
    Wave FormPure Sine Wave
    Battery
    Capacity of battery---------
    External Battery192VDC
    Transfer time0ms
    PHYSICAL
    Dimension(mm)500*248*616
    Net weight(kg)35
    Management
    InterfaceRS232,Interlling Slot Selectable
  •
