Place of Origin:
China
Brand Name:
G-Tech
Certification:
CE/RoHS/ISO
Model Number:
AVR series

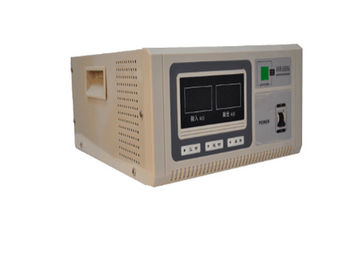

AVR Series , signle phase high precision automatic voltage regulator (AVR) with advantages
This series is single phase high precision automatic voltage regulator (AVR) with other & low voltage protection,long or short delay function and fault protection .LED digital displays of input and output voltage to indicate accurate voltage for safer and better performance.
Specification
| Model | AVR-600VA | AVR-1000VA | AVR-1500VA |
| Rated power | 600VA | 1000VA | 1500VA |
| Input | |||
| Input voltage range | 140-280Vac | ||
| Frequency | 45-65Hz | ||
| Output | |||
| Output voltage range | 220Vac ± 10% | ||
| Display | |||
| Led digital display status | Input voltage , output voltage | ||
| Led display status | Normal ,Delay,Fault | ||
| Protections | Over&low volatge,high temperature,short circuit | ||
| Physical | |||
| Unit dimension(mm) | 205*108*157.5 | ||
| Net weight(kg) | 2.3 | 2.9 | 3.6 |
| Enviroment of performance | Temperature 0℃- 40℃,Humidity 20%-90% | ||
| Noise level | Less than 40dB | ||
Feature
1. Microprocessor control guarantees high reliability;
2. Short circuit,overload,over temperature protections provide safe and reliable performance.
3. Delay function can protec refrigerators,air conditioners and other household electrical appliances when AC switches frequency.
4. High voltage cut-off.
Field of application
Applicable for equipment of computer network,household electrical appliances,madical equipment,scientific research institutions,measuring and test equipment,calibration stand in factory,etc.
