Place of Origin:
China
Brand Name:
G-Tech
Certification:
CE ROHS
Model Number:
GBS

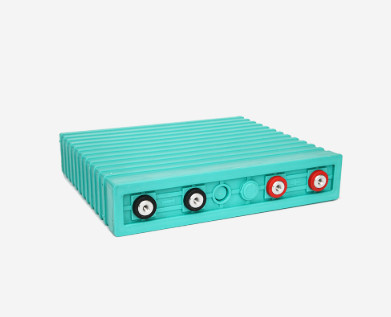

lifepo4 batteries for electrical car 48v battery pack
| Model | GBS-LFP30Ah-A | GBS-LF40Ah-B |
| Rated Capacity | 30Ah | 40Ah |
| Nominal Voltage | 3.2V | 3.2V |
| Internal Impedance | ≤1.0mΩ | ≤0.6mΩ |
| Standard Charge | 0.25C | 0.25C |
| Quick-arting Charge | 1.0C | 1.0C |
| Charge cut off voltage | 3.55V | 3.55V |
| Standard Discharge | 0.5C | 0.5C |
| Maximum continuous discharge | 3.0C | 3.0C |
| Instantaneneous Discharege | 5C | 5C |
| End of Dischage | 2.5V | 2.5V |
| Work temperature | -20~65℃ | -20~65℃ |
| Cycle life(times) | ＞3000CYCLES(0.5C) | ＞3000CYCLES(0.5C) |
| Weight(kg) | 0.8±0.1kg | 1.5±0.1kg |
| Dimensions(mm) | 126*21*216±1mm | 126*46*188±1mm |
Safety Advantage
Air vent with double protection functions ensures safety
The World's first controllable air vent with double protection functions is a patented product. It exhausts and opens automatically in one-way mode at different pressure.
Good insulation and lightning resistance in the wild
Plastic shell has good insulations.Cells can be assembled into a DC-high voltage battery pack directly. Insulation ability is not affected by air humidity.Good anti-lightning performance without grounding.Not easy to generate static electricity and cause accidents due to friction generated by electric sparks.
Decompression design in special circumstances
Plasitic shell has low melting point(170℃).It melts and makes decompression automatically in the extreme conditions to ensure.
