Place of Origin:
China
Brand Name:
G-Tech
Certification:
ISO9001, DIN/EN 60 254-2(IEC 254-1)
Model Number:
DIN Series
General Features
Robust, flooded tubular technology.
Highest standards of design, materials and workmanship.
Outstanding deep cycling capacity & reliability.
Manufactured to exacting ISO9001 standard &DIN/EN 60 254-2(IEC 254-1) specifications
Spines of antimonial lead filled with lead oxide and less maintenance.
Typical Applications

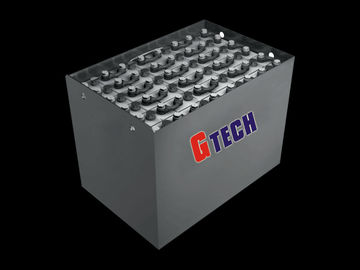

Traction lead-acid battery is used as DC power source for electric vehicles which widely used in airport, railway station, seaport and mining etc.
Traction lead-acid battery is used as a cleaning pollution-free DC power source
Traction lead-acid battery is used used in public communication, sports, and entertainment etc.
DIN Series Specifications
| Series | Model | Capacity (5 HR) | Dry Weight | The No. of Terminal | Size(L*W*H) |
| DIN Series | 2PZS120 | 120 | 7.3 | 2 | 47*198*340(370) |
| DIN Series | 3PZS180 | 180 | 9.7 | 2 | 65*198*340(370) |
| DIN Series | 4PZS240 | 240 | 12.1 | 2 | 83*198*340(370) |
| DIN Series | 5PZS300 | 300 | 15.0 | 2 | 101*198*340(370) |
| DIN Series | 6PZS360 | 360 | 17.4 | 2 | 119*198*340(370) |
| DIN Series | 7PZS420-2 | 420 | 20.3 | 2 | 137*198*340(370) |
| DIN Series | 7PZS420-4 | 420 | 21.0 | 4 | 137*198*340(370) |
| DIN Series | 8PZS480 | 480 | 23.2 | 4 | 155*198*340(370) |
| DIN Series | 9PZS540 | 540 | 25.6 | 4 | 174*198*340(370) |
| DIN Series | 10PZS600 | 600 | 28.0 | 4 | 192*198*340(370) |
| DIN Series | 2PZS160 | 160 | 8.5 | 2 | 47*198*405(435) |
| DIN Series | 3PZS240 | 240 | 11.4 | 2 | 65*198*405(435) |
| DIN Series | 4PZS320 | 320 | 14.9 | 2 | 83*198*405(435) |
| DIN Series | 5PZS400 | 400 | 18.3 | 2 | 101*198*405(435) |
| DIN Series | 6PZS480 | 480 | 21.2 | 2 | 119*198*405(435) |
| DIN Series | 7PZS560-2 | 560 | 24.1 | 2 | 137*198*405(435) |
| DIN Series | 7PZS560-4 | 560 | 25.0 | 4 | 137*198*405(435) |
| DIN Series | 8PZS640 | 640 | 27.5 | 4 | 155*198*405(435) |
| DIN Series | 9PZS720 | 720 | 30.5 | 4 | 174*198*405(435) |
| DIN Series | 10PZS800 | 800 | 33.4 | 4 | 192*198*405(435) |
| DIN Series | 2PZS180 | 180 | 9.4 | 2 | 47*198*475(505) |
| DIN Series | 3PZS270 | 270 | 12.7 | 2 | 65*198*475(505) |
| DIN Series | 4PZS360 | 360 | 16.4 | 2 | 83*198*475(505) |
| DIN Series | 5PZS450 | 450 | 20.2 | 2 | 101*198*475(505) |
| DIN Series | 6PZS540 | 540 | 23.5 | 2 | 119*198*475(505) |
| DIN Series | 7PZS630-2 | 630 | 26.8 | 2 | 137*198*475(505) |
| DIN Series | 7PZS630-4 | 630 | 27.3 | 4 | 137*198*475(505) |
| DIN Series | 8PZS720 | 720 | 30.6 | 4 | 155*198*475(505) |
| DIN Series | 9PZS810 | 810 | 33.9 | 4 | 174*198*475(505) |
| DIN Series | 10PZS900 | 900 | 37.2 | 4 | 192*198*475(505) |
| DIN Series | 2PZS210 | 210 | 10.2 | 2 | 47*198*545(575) |
| DIN Series | 3PZS315 | 315 | 14.4 | 2 | 65*198*545(575) |
| DIN Series | 4PZS420 | 420 | 18.5 | 2 | 83*198*545(575) |
| DIN Series | 5PZS525 | 525 | 22.1 | 2 | 101*198*545(575) |
| DIN Series | 6PZS630 | 630 | 25.8 | 2 | 119*198*545(575) |
| DIN Series | 7PZS735-2 | 735 | 29.4 | 2 | 137*198*545(575) |
| DIN Series | 7PZS735-4 | 735 | 29.9 | 4 | 137*198*545(575) |
| DIN Series | 8PZS840 | 840 | 33.6 | 4 | 155*198*545(575) |
| DIN Series | 9PZS945 | 945 | 37.2 | 4 | 174*198*545(575) |
| DIN Series | 10PZS1050 | 1050 | 40.8 | 4 | 192*198*545(575) |
| DIN Series | 2PZS230 | 230 | 10.9 | 2 | 47*198*545(575) |
| DIN Series | 3PZS345 | 345 | 15.3 | 2 | 65*198*545(575) |
| DIN Series | 4PZS460 | 460 | 19.7 | 2 | 83*198*545(575) |
| DIN Series | 5PZS575 | 575 | 23.6 | 2 | 101*198*545(575) |
| DIN Series | 6PZS690 | 690 | 27.5 | 2 | 119*198*545(575) |
| DIN Series | 7PZS805-2 | 805 | 31.4 | 2 | 137*198*545(575) |
| DIN Series | 7PZS805-4 | 805 | 31.9 | 4 | 137*198*545(575) |
| DIN Series | 8PZS920 | 920 | 35.9 | 4 | 155*198*545(575) |
| DIN Series | 9PZS1035 | 1035 | 39.8 | 4 | 174*198*545(575) |
| DIN Series | 10PZS1150 | 1150 | 43.7 | 4 | 192*198*545(575) |
| DIN Series | 2PZS250 | 250 | 11.5 | 2 | 47*198*570(600) |
| DIN Series | 3PZS375 | 375 | 16.2 | 2 | 65*198*570(600) |
| DIN Series | 4PZS500 | 500 | 20.9 | 2 | 83*198*570(600) |
| DIN Series | 5PZS625 | 625 | 25.1 | 2 | 101*198*570(600) |
| DIN Series | 6PZS750 | 750 | 29.3 | 2 | 119*198*570(600) |
| DIN Series | 7PZS875-2 | 875 | 33.5 | 2 | 137*198*570(600) |
| DIN Series | 7PZS875-4 | 875 | 34.0 | 4 | 137*198*570(600) |
| DIN Series | 8PZS1000 | 1000 | 38.2 | 4 | 155*198*570(600) |
| DIN Series | 9PZS1125 | 1125 | 42.4 | 4 | 174*198*570(600) |
| DIN Series | 10PZS1250 | 1250 | 46.5 | 4 | 192*198*570(600) |
| DIN Series | 2PZS280 | 280 | 13.2 | 2 | 47*198*685(715) |
| DIN Series | 3PZS420 | 420 | 19.1 | 2 | 65*198*685(715) |
| DIN Series | 4PZS560 | 560 | 23.9 | 2 | 83*198*685(715) |
| DIN Series | 5PZS700 | 700 | 28.8 | 2 | 101*198*685(715) |
| DIN Series | 6PZS840 | 840 | 33.7 | 2 | 119*198*685(715) |
| DIN Series | 7PZS980-2 | 980 | 38.6 | 2 | 137*198*685(715) |
| DIN Series | 7PZS980-4 | 980 | 39.1 | 4 | 137*198*685(715) |
| DIN Series | 8PZS1120 | 1120 | 44.0 | 4 | 155*198*685(715) |
| DIN Series | 9PZS1260 | 1260 | 48.8 | 4 | 174*198*685(715) |
| DIN Series | 10PZS1400 | 1400 | 53.7 | 4 | 192*198*685(715) |
| DIN Series | 2PZS310 | 310 | 14.2 | 2 | 47*198*720(750) |
| DIN Series | 3PZS465 | 465 | 19.9 | 2 | 65*198*720(750) |
| DIN Series | 4PZS620 | 620 | 25.0 | 2 | 83*198*720(750) |
| DIN Series | 5PZS775 | 775 | 30.1 | 2 | 101*198*720(750) |
| DIN Series | 6PZS930 | 930 | 35.2 | 2 | 119*198*720(750) |
| DIN Series | 7PZS1085-2 | 1085 | 40.3 | 2 | 137*198*720(750) |
| DIN Series | 7PZS1085-4 | 1085 | 40.8 | 4 | 137*198*720(750) |
| DIN Series | 8PZS1240 | 1240 | 46.0 | 4 | 155*198*720(750) |
| DIN Series | 9PZS1395 | 1395 | 51.1 | 4 | 174*198*720(750) |
| DIN Series | 10PZS1550 | 1550 | 56.2 | 4 | 192*198*720(750) |
