Place of Origin:
China
Brand Name:
G-Tech
Certification:
UL, CE, ISO9001
Model Number:
DC12
Sealed lead acid battery Deep Cycle Battery Type for Solar power systems, UPS systems, Telecommunications equipment
AGM Battery
Batteries of this series are not serviced, do not require replenishment of water, are designed for cyclic operation (can withstand up to 600 cycles). Low level of self-discharge provides a service life of 2 to 4 years in standby (buffer) mode. Sealed design allows the battery to be used in any position. The main scope of application of this product is Uninterruptible Power Supply (UPS) of any power and configuration. Also, these batteries are widely used in fire protection and other equipment that requires backup power, for today, out of competition for the ratio of price / quality.
Applications:

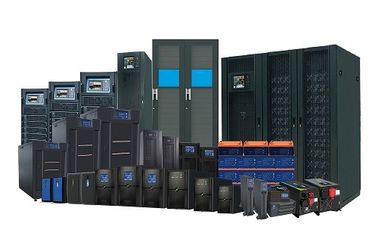

UPS systems
Solar powered systems
Telecommunications equipment
Emergency lighting
Fire and burglar alarm systems
Access control devices
Electronic equipment require memory protection
Electronic
|
Features: |
|
Battery cycle life is over 400 cycles at 80% DOD at 20℃/68℉ Absorbent Glass Mat (AGM) technology Extremely high cycle life and float life performance Wide range of operating temperature -20℃ to +50℃ Delivered ready for use at 100% of its nominal capacity Computer designed lead, calcium tin alloy grid for high power density Easy for installation, maintenance free operation Shock resistant ABS flame retardant container and lid UL, CE, ISO9001 recognized component Non-hazardous cargo for ground, sea and air transport |
Deep Cycle Battery Type Specifications
| Series | Model | Capacity | Weight | Terminal | Size(L*W*H) |
| DC Series | DC12-26 | 26 | 8.1 | F13(M5) | 166*175*125(125) |
| DC Series | DC12-26P | 26 | 8.3 | F11(M6) | 165*126*174(174) |
| DC Series | DC12-28P | 28 | 8.8 | F11(M6) | 165*126*174(174) |
| DC Series | DC6-180 | 180 | 28 | F12(M8) | 306*168*222(227) |
| DC Series | DC6-180E | 180 | 28 | F12(M8) | 306*168*222(227) |
| DC Series | DC6-200 | 200 | 29 | F14(M8) | 322*177.5*226(247) |
| DC Series | DC6-200E | 200 | 29 | F14(M8) | 322*177.5*226(247) |
| DC Series | DC6-225 | 225 | 31 | F14(M8) | 322*177.5*226(247) |
| DC Series | DC6-225E | 225 | 30.5 | F14(M8) | 322*177.5*226(247) |
| DC Series | DC6-225S | 225 | 32 | F14(M8) | 243*187.5*275(275) |
| DC Series | DC12-40 | 40 | 13 | F11(M6) | 198*166*171(171) |
| DC Series | DC12-40E | 40 | 12.4 | F11(M6) | 198*166*171(171) |
| DC Series | DC12-50 | 50 | 15.5 | F15(M6) | 250*160*178(183) |
| DC Series | DC12-55 | 55 | 18 | F11(M6) | 229*138*210(235) |
| DC Series | DC12-65 | 65 | 21 | F11(M6) | 350*167*180(183) |
| DC Series | DC12-65E | 65 | 19.5 | F11(M6) | 350*167*180(183) |
| DC Series | DC12-75 | 75 | 23.5 | F11(M6) | 260*169*210(235) |
| DC Series | DC12-75E | 75 | 23 | F11(M6) | 260*169*210(235) |
| DC Series | DC12-80E | 80 | 22.7 | F11(M6) | 350*167*180(183) |
| DC Series | DC12-80 | 80 | 24 | F11(M6) | 350*167*180(183) |
| DC Series | DC12-90 | 90 | 28.5 | F12(M8) | 306.5*168.5*210(235) |
| DC Series | DC12-90E | 90 | 28 | F12(M8) | 306.5*168.5*210(235) |

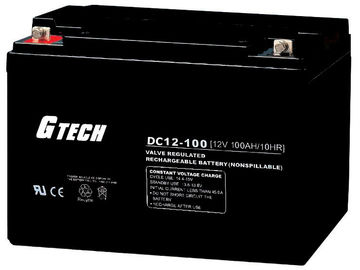

| DC Series | DC12-100 | 100 | 30 | F12(M8) | 328*172*222(222) |
| DC Series | DC12-100E | 100 | 29 | F12(M8) | 328*172*222(222) |
| DC Series | DC12-120E | 120 | 34 | F12(M8) | 407*177*225(225) |
| DC Series | DC12-120 | 120 | 35 | F12(M8) | 407*177*225(225) |
| DC Series | DC12-115 | 115 | 32 | F12(M8) | 328*172*222(222) |
| DC Series | DC12-134 | 134 | 41.5 | F12(M8) | 340*173*280(285) |
| DC Series | DC12-145 | 145 | 44 | F12(M8) | 340*173*280(285) |
| DC Series | DC12-150 | 150 | 44.5 | F12(M8) | 483*170*240(240) |
| DC Series | DC12-150A | 150 | 43.7 | F12(M8) | 483*170*240(240) |
| DC Series | DC12-160A | 160 | 49 | F12(M8) | 530*209*214(219) |
| DC Series | DC12-160 | 160 | 50 | F12(M8) | 530*209*214(219) |
| DC Series | DC12-180A | 180 | 52 | F12(M8) | 530*209*214(219) |
| DC Series | DC12-180 | 180 | 53 | F12(M8) | 530*209*214(219) |
| DC Series | DC12-200A | 200 | 59 | F10(M8) | 522*240*219(240) |
| DC Series | DC12-200 | 200 | 60 | F10(M8) | 522*240*219(240) |
| DC Series | DC12-225A | 225 | 64 | F10(M8) | 522*240*219(240) |
| DC Series | DC12-225 | 225 | 65 | F10(M8) | 522*240*219(240) |
| DC Series | DC12-230 | 230 | 67 | F12(M8) | 521*269*203(208) |
| DC Series | DC12-260 | 260 | 74 | F14(M8) | 520*268*220(225) |
| DC Series | DC2-200 | 200 | 14 | F10(M8) | 171*111*366(366) |
| DC Series | DC2-250 | 250 | 16 | F10(M8) | 171*111*366(366) |
| DC Series | DC2-300 | 300 | 19 | F10(M8) | 171*150*365(365) |
| DC Series | DC2-350 | 350 | 21.5 | F10(M8) | 171*150*365(365) |
| DC Series | DC2-400 | 400 | 26 | F10(M8) | 211*176*329(367) |
| DC Series | DC2-450 | 450 | 28 | F10(M8) | 211*176*329(367) |
| DC Series | DC2-500 | 500 | 30.5 | F10(M8) | 242*172*329(366) |
| DC Series | DC2-600 | 600 | 37 | F10(M8) | 302*175*328(365) |
| DC Series | DC2-650 | 650 | 40 | F10(M8) | 302*175*328(365) |
| DC Series | DC2-750 | 750 | 46 | F10(M8) | 411*175*327(368) |
| DC Series | DC2-800 | 800 | 50 | F10(M8) | 411*175*327(368) |
| DC Series | DC2-1000 | 1000 | 62 | F10(M8) | 479*175*327(368) |
| DC Series | DC2-1200 | 1200 | 71 | F10(M8) | 479*175*327(368) |
| DC Series | DC2-1500 | 1500 | 96 | F10(M8) | 401*352*338(383) |
| DC Series | DC2-1800 | 1800 | 105 | F10(M8) | 401*352*338(383) |
| DC Series | DC2-2000 | 2000 | 126.5 | F10(M8) | 490*349*338(383) |
| DC Series | DC2-2500 | 2500 | 140 | F10(M8) | 490*349*338(383) |
| DC Series | DC2-3000 | 3000 | 193 | F10(M8) | 712*351*338(383) |
