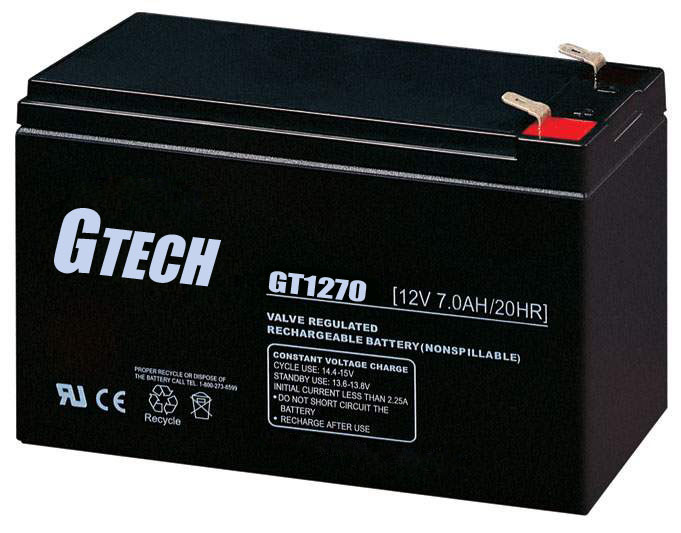

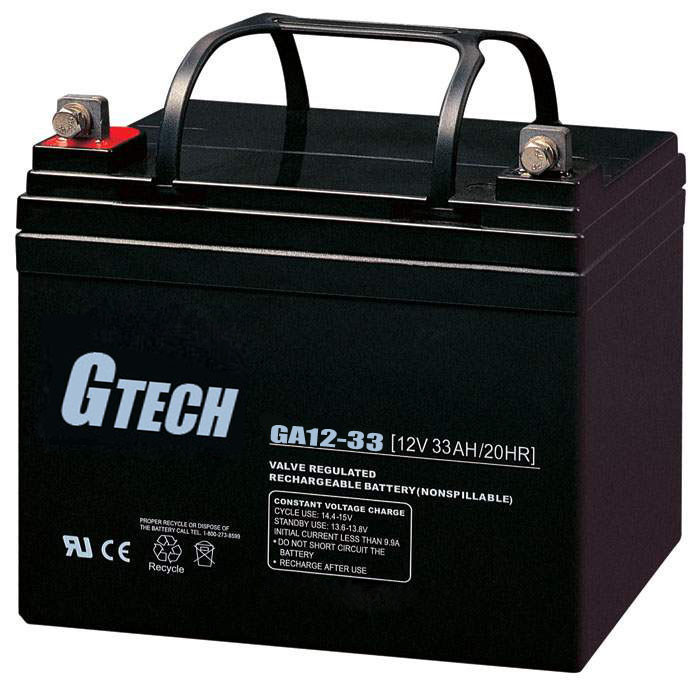

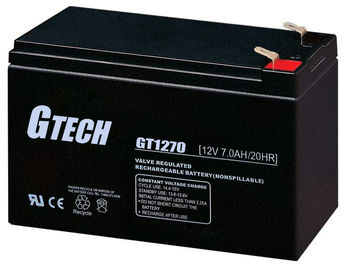

Compact Design VRLA Regulated Lead Acid Battery Deep Cycle Terminal Sealing

  • Compact Design VRLA Regulated Lead Acid Battery Deep Cycle Terminal Sealing
  • Compact Design VRLA Regulated Lead Acid Battery Deep Cycle Terminal Sealing
Place of Origin China
Brand Name G-Tech
Certification UL, CE, ISO9001
Model Number GT Series
Minimum Order Quantity 500
Price Negotiation
Delivery Time 7-15 days
Payment Terms L/C, T/T, Western Union
Supply Ability 500000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 2V,6V, 12V Product Name AGM VRLA Regulated Lead Acid Battery Deep Cycle High Capacity Lead Acid Battery For UPS Systems, Solar Energy
Warranty 1 Year Application UPS,Solar System,Street Light,Telecommunication, Etc
Sealed Type Sealed Color Optional
Highlight

vrla lead acid battery

,

valve regulated lead acid battery
Leave a Message
Product Description

AGM Battery General SLA Battery Type for Solar power systems, UPS systems, Telecommunications equipment

Applications:

  • UPS systems / Telecommunications equipment / Emergency lighting / Fire and burglar alarm systems / Access control devices / Electronic equipment require memory protecting / Solar powered systems



Features:
  • Structure: compact design, shorter internal connectors between cells, thus low internal resistance
    Plate: Pasted flat type, with patent deep cycle formula of AM
    Terminal: Two or more types terminals are convenient for selection
    Vent system: Gas can be vented through flame arrester
    Separator: Using improved AGM separator, make lower resistance higher assembling pressure to increase dep cycle life
    Battery case: Made of high strength ABS and UL94-V0 is optional
    Terminal sealing: Double sealing technics(mechanical+epoxy gule)



General SLA Battery Specification

Series Model Capacity Weight Terminal Size(L*W*H)
GT Series GT6-4 4 0.65 F1 70*47*101(107)
GT Series GT6-4.5 4.5 0.72 F1 70*47*101(107)
GT Series GT6-4.5E 4.5 0.7 F1 70*47*101(107)
GT Series GT6-5 5 0.75 F1/F2 70*47*101(107)
GT Series GT6-5.5 5.3 0.8 F1/F2 70*47*101(107)
GT Series GT6-7 7 1.05 F1/F2 151*34*94(100)
GT Series GT6-7E 7 1 F1/F2 151*34*94(100)
GT Series GT6-7.2 7.2 1.15 F1/F2 151*34*94(100)
GT Series GT6-8 8 1.2 F1/F2 151*34*94(100)
GT Series GT6-10 10 1.65 F1/F2 151*50*95(101)
GT Series GT6-10E 10 1.55 F1/F2 151*50*95(101)
GT Series GT6-12 12 1.8 F1/F2 151*50*95(101)
GT Series GT6-12E 12 1.66 F1/F2 151*50*95(101)
GT Series GT12-4 4 1.3 F1/F2 90*70*101(107)
GT Series GT12-4.5 4.5 1.4 F1/F2 90*70*101(107)
GT Series GT12-4.5E 4.5 1.35 F1/F2 90*70*101(107)
GT Series GT12-5 5 1.6 F1/F2 90*70*101(107)
GT Series GT12-5.6 5.6 1.8 F1/F2 151*65*93.5(100)
GT Series GT12-6.5 7 1.9 F1/F2 151*65*93.5(100)
GT Series GT12-7 7 2.04 F1/F2 151*65*93.5(100)
GT Series GT12-7E 7 2 F1/F2 151*65*93.5(100)
GT Series GT12-7.2 7.2 2.15 F1/F2 151*65*93.5(100)
GT Series GT12-8 8 2.35 F1/F2 151*65*93.5(100)
GT Series GT12-8E 8 2.26 F1/F2 151*65*93.5(100)
GT Series GT12-9 9 2.55 F1/F2 151*65*93.5(100)
GT Series GT12-10 10 3.2 F1/F2 151*98*95(101)
GT Series GT12-10E 10 3 F1/F2 151*98*95(101)
GT Series GT12-12 12 3.6 F1/F2 151*98*95(101)
GT Series GT12-12E 12 3.3 F1/F2 151*98*95(101)
GT Series GT12-17 18 4.75 F13(M5) 181*77*167(167)
GT Series GT12-18 18 5.2 T26(M5) 181*77*167(167)
GT Series GT12-18E 18 5 F13(M5) 181*77*167(167)
GT Series GT12-20 20 5.9 F13(M5) 181*77*167(167)
GT Series GT12-24 24 7.4 F13(M5) 166*175*125(125)
GT Series GT12-24P 23 7.4 T28(M5) 165*126*174(174)
GT Series GT12-26 26 8.1 F13(M5) 166*175*125(125)
GT Series GT12-26P 26 8.3 F11(M6) 165*126*174(174)
GT Series GT12-28 28 8.6 F13(M5) 166*175*125(125)
GT Series GT12-28P 28 8.8 F11(M6) 165*126*174(174)
GT Series GT2-100 100 5.6 F10(M8) 171*72*206(206)
GT Series GT2-150 150 8 F10(M8) 172*102*205(227)
GT Series GT6-100 100 16.5 F14(M8) 194*170*205(210)
GT Series GT6-150 150 23.5 F12(M8) 260*180*247(252)
GT Series GT6-180 180 26.5 F12(M8) 306*168*222(227)
GT Series GT6-200 200 29 F14(M8) 322*177.5*226(247)
GT Series GT6-200S 200 30 F12(M8) 260*180*247(252)
GT Series GT6-225 225 31 F14(M8) 322*177.5*226(247)
GT Series GT6-225S 225 32 F14(M8) 243*187.5*275(275)
GT Series GT12-33 33 10.2 F11(M6) 195*130*159(180)
GT Series GT12-33E 33 9.9 F11(M6) 195*130*159(180)
GT Series GT12-40 40 13 F11(M6) 198*166*171(171)
GT Series GT12-40E 40 12.4 F11(M6) 198*166*171(171)
GT Series GT12-45 45 13.5 F11(M6) 198*166*171(171)
GT Series GT12-55 55 18 F11(M6) 229*138*210(235)
GT Series GT12-55E 55 17.5 F11(M6) 229*138*210(235)
GT Series GT12-60 60 20.5 F11(M6) 260*169*210(235)
GT Series GT12-65 65 21 F11(M6) 350*167*180(183)
GT Series GT12-65E 65 19.5 F11(M6) 350*167*180(183)
GT Series GT12-70 70 22.5 F11(M6) 350*167*180(183)
GT Series GT12-70S 70 21.5 F11(M6) 260*169*210(235)
GT Series GT12-75 75 23.5 F11(M6) 260*169*210(235)
GT Series GT12-75E 75 23 F11(M6) 260*169*210(235)
GT Series GT12-80 80 24 F11(M6) 350*167*180(183)
GT Series GT12-80E 80 22.7 F11(M6) 350*167*180(183)
GT Series GT12-85 85 26 F12(M8) 306.5*168.5*210(235)
GT Series GT12-90 90 28.5 F12(M8) 306.5*168.5*210(235)
GT Series GT12-90E 90 28 F12(M8) 306.5*168.5*210(235)
GT Series GT12-100 100 30 F12(M8) 328*172*222(222)
GT Series GT12-100E 100 29 F12(M8) 328*172*222(222)
GT Series GT12-120 120 35 F12(M8) 407*177*225(225)
GT Series GT12-120E 120 34 F12(M8) 407*177*225(225)
GT Series GT12-115 115 32 F12(M8) 328*172*222(222)
GT Series GT12-134 134 41.5 F12(M8) 340*173*280(285)
GT Series GT12-145 145 44 F12(M8) 340*173*280(285)
GT Series GT12-150 150 44.5 F12(M8) 483*170*240(240)
GT Series GT12-150E 150 43.7 F12(M8) 483*170*240(240)
GT Series GT12-160 160 50 F12(M8) 530*209*214(219)
GT Series GT12-160E 160 49.5 F12(M8) 530*209*214(219)
GT Series GT12-180 180 53 F12(M8) 530*209*214(219)
GT Series GT12-180E 180 52 F12(M8) 530*209*214(219)
GT Series GT12-200 200 60 F10(M8) 522*240*219(240)
GT Series GT12-200E 200 59 F10(M8) 522*240*219(240)
GT Series GT12-225 225 65 F10(M8) 522*240*219(240)
GT Series GT12-225E 225 63.5 F10(M8) 522*240*219(240)
GT Series GT12-230 230 67 F12(M8) 521*269*203(208)
GT Series GT12-240 240 69 F10(M8) 522*240*219(240)
GT Series GT12-240E 240 67.5 F10(M8) 522*240*219(240)
GT Series GT12-260 260 74 F14(M8) 520*268*220(225)
GT Series GT12-260E 260 72.5 F14(M8) 520*268*220(225)
GT Series GT2-200 200 14 F10(M8) 171*111*366(366)
GT Series GT2-250 250 16 F10(M8) 171*111*366(366)
GT Series GT2-300 300 19 F10(M8) 171*150*365(365)
GT Series GT2-350 350 21.5 F10(M8) 171*150*365(365)
GT Series GT2-400 400 26 F10(M8) 211*176*329(367)
GT Series GT2-450 450 28 F10(M8) 211*176*329(367)
GT Series GT2-500 500 30.5 F10(M8) 242*172*329(366)
GT Series GT2-600 600 37 F10(M8) 302*175*328(365)
GT Series GT2-650 650 40 F10(M8) 302*175*328(365)
GT Series GT2-750 750 46 F10(M8) 411*175*327(368)
GT Series GT2-800 800 50 F10(M8) 411*175*327(368)
GT Series GT2-1000 1000 62 F10(M8) 475*175*327(368)
GT Series GT2-1200 1200 71 F10(M8) 475*175*327(368)
GT Series GT2-1500 1500 96 F10(M8) 401*352*338(383)
GT Series GT2-1800 1800 105 F10(M8) 401*352*338(383)
GT Series GT2-2000 2000 126.5 F10(M8) 490*349*338(383)
GT Series GT2-2500 2500 140 F10(M8) 490*349*338(383)
GT Series GT2-3000 3000 193 F10(M8) 712*351*338(383)



Compact Design VRLA Regulated Lead Acid Battery Deep Cycle Terminal Sealing 0
