True Double Conversion High Frequency Online UPS Single Phase With LCD Display

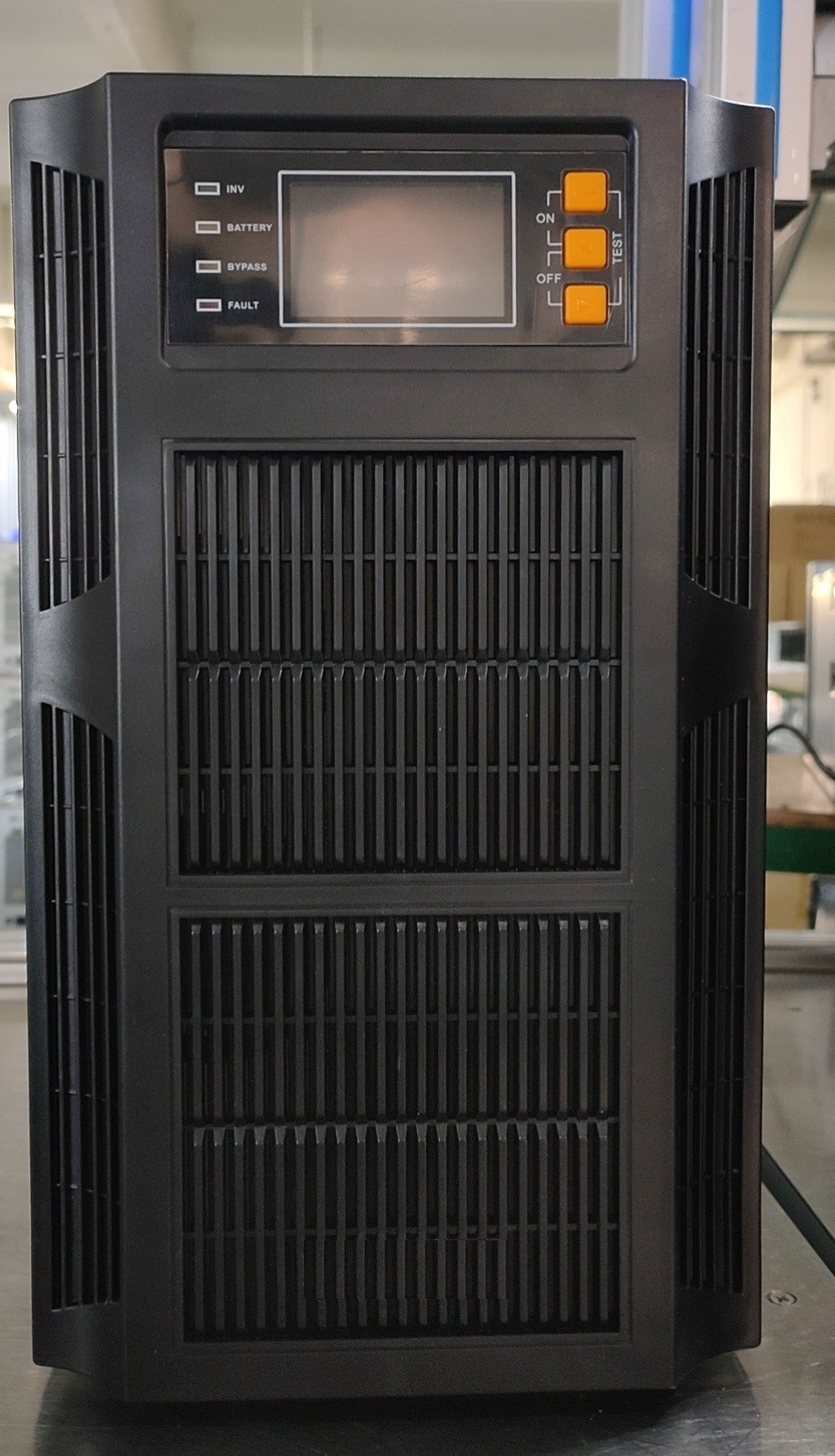

True Double Conversion High Frequency Online UPS Single Phase With LCD Display

online high frequency ups

online ups system

Place of Origin:

China

Brand Name:

G-Tech

Certification:

CCC;CE;Rohs;ISO

Model Number:

PT Series

Contact Us
Request A Quote
Product Details
Material:
ABS
Color:
Optional
Mount Way:
Tower Type
Wave Form:
Pure Sine Wave
Application:
Computer, Telecommunications, Networking, Security, Monitoring
Phase:
One Phase
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Carton
Delivery Time
15-25 days
Payment Terms
L/C, T/T, Western Union
Product Description

PT Series 3KVA True double-conversion onine UPS Tower Mount Type

True Double Conversion High Frequency Online UPS With LCD Display single phase online ups

  • Feature
  • True double-conversion online UPS
  • Microprocessor control optimizes reliability
  • Output power factor:1.0
  • Wide input voltage range
  • Generator compatible
  • Charger Capacity expansion to 12A for long backup models.
  • Smart Communication program works well with either USB or RS232 together.

Online High Frequency



Production Introduction

This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds

of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.

  • True Double Conversion High Frequency Online UPS Single Phase With LCD Display 0
  •

  • Model PT-3K
    Capacity 3000VA/3000W
    INPUT


    Frequency Range


    Transfer:160VAC 5%-300VAC 5%
    No-load: 110VAC 5%-300VAC 5%
    Phase Single phase with ground
    OUTPUT
    Voltage 220VAC±2%VAC
    Frequency Range 47-53Hz or 57-63Hz(Synchronized range)
    50Hz±0.25Hz or60Hz±0.3Hz(Batt.mode)
    Currrent crest factor                      3:1
    Wave Form Pure Sine Wave
    Battery
    Capacity of battery 12V/7-9AH
    QTY 6-8PCS
    Transfer time 0ms
    PHYSICAL
    Dimension(mm) 350*145*230
    Net weight(kg) 23.25/28.35 10.07/10.07
    Management
    Interface RS232,Interlling Slot Selectable
  •

Company Introduction



  • G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.

    The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.

    OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.

    After 17 years of efforts, we have been extended to more and more consumers. Our products are widely used in finance, securities, energy, telecommunications, transportation, communications, traffic, industrial enterprises, data center and home usage by personal purpose.

    We warmly welcome friends from all over the world to explore and negotiate with us, To build a mutual benefit and win-win friendly cooperate relationship!
