6KV High Frequency Display Power Supply Online UPS Homage Ups Circuit Diagram

6KV High Frequency Display Power Supply Online UPS Homage Ups Circuit Diagram

online high frequency ups

online ups system

Place of Origin:

China

Model Number:

PT

Contact Us
Request A Quote
Product Details
Brand Name:
GTECH
Certification:
ISO9001, ISO14001, CE, ROHS
Protection:
Overload Protection
UPS Capacity:
6KAV-10KVA
Wave Form:
Pure Sine Wave Online Ups
Product Name:
High Frequency Online UPS
Transfer Time:
0ms
Output Power Factor:
1.0
Payment & Shipping Terms
Minimum Order Quantity
20PCS
Price
Negotiation
Packaging Details
Carton packing
Delivery Time
7-25workdays
Payment Terms
L/C, T/T, Western Union
Product Description

SPECIFICATION



MODEL PT-6K PK-6KL PT-10K PT-10KL PT-3C10KL
Capacity 6000VA/6000W 10KVA/10000W
INPUT
Wires Single phase dual wires +earth wire Three phases four wires +earth wire
Power factor 1.0
Frequency range 46-54Hz same as AC(AC mode)
Voltage 220V:176~276Vac 220V:304~478Vac
OUTPUT
Output voltage 220V:220v±2%Vac
Frequency 50~60Hz Automatic sensing(AC mode)
  220V:50±0.2Hz(DC mode)
Current crest factor 3:1
Wave form Sine Wave
BATTERY
QTY&capacity of battery 12V/7.5AH*16pcs ------ 12V*7.5AH*16pcs ------ --------
External battery   192VDC ------- 192DC
Transfer time 0ms
Overload capability 105%-130% for 10 minutes,130% above for 1 minute
ENVIRONMENT
Environment of performance Temperature 0℃-40℃ Humidity 20%-90%
PHYSICAL
Unit dimension(mm) 500*248*616 500*240*460 500*248*616 500*240*616 500*248*616
Net weight(kg) 57 18 67.5 20 27
MANEGEMET
Interface RS232,Intelling slot selectable

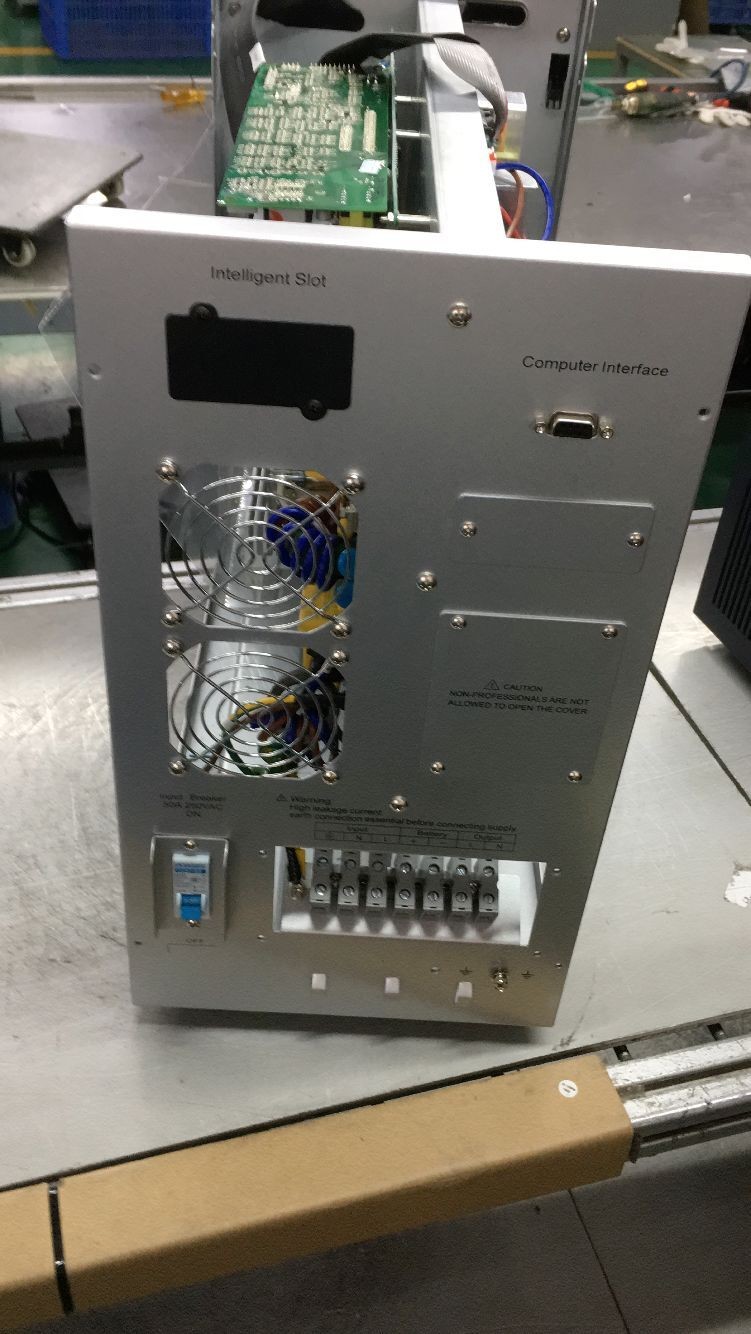

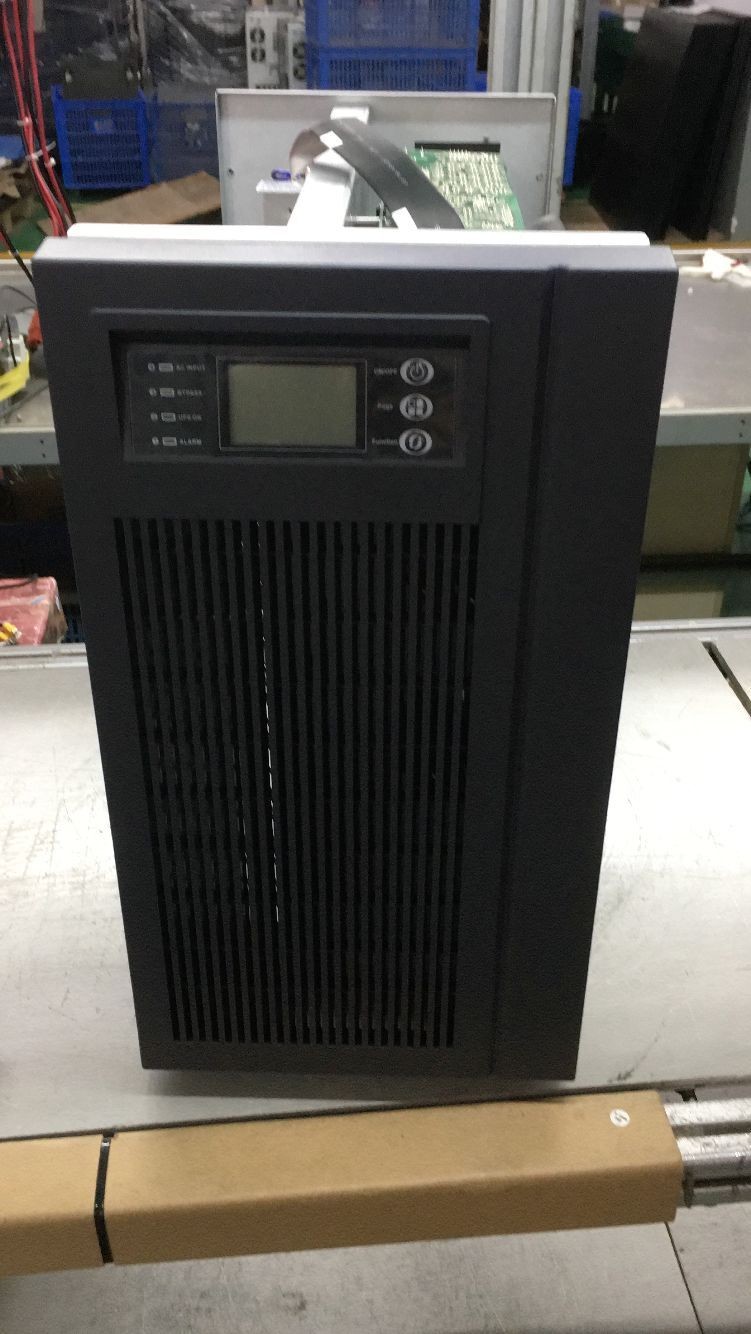

6KV High Frequency Display Power Supply Online UPS Homage Ups Circuit Diagram 06KV High Frequency Display Power Supply Online UPS Homage Ups Circuit Diagram 1

FAQ

Q1:How do you control the quality?

A:We strictly implement quality control following IQC,IPQC,FQC,QQC standards.



Q2:How to Pay?

A:We accept TT and L/C.



Q3:Warranty

A:1 year warranty for UPS.1 year warranty for battery7AH-17AH,2 years warranty for battery 24AH-200AH.



Q4:Do you have OEM & ODM service?

A:Yes,our products can be customized.
