Place of Origin:
China
Brand Name:
G-Tech
Certification:
CE ROHS
Model Number:
ECO Series

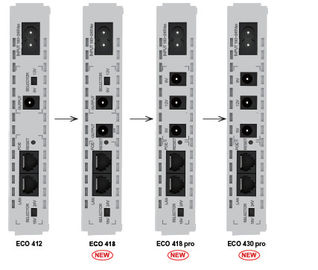

Multi Output Mini DC Ups High capacity Lithium Battery UPS Portable Online Ups For IP Camera, Modem, CCTV etc
| Model | Eco Series | |||||||
| 212 | 415 | 415P | 430P | 430M | 430S | 860 | 1660 | |
| INPUT | ||||||||
| Input voltage | 100-240Vac | |||||||
| OUTPUT | ||||||||
| DC output voltage(optional) | USB 1.5A 9/12V 1A |
5V+USB 2A 9V/12V 1A 12V 1A |
5V+USB 2A 9V+12V 1A 15V/24V (0.5A) (POE) |
5V+USB 2A 9V/12V 2A 15V+24V 1A (POE) |
5V+USB 2A 9V/12V 2A 12V*4 2A |
5V+USB 2A 9V/12V*4 2A Solar input |
5V+USB*2 2A 9/12V 2A 15V/24V(POE) 1A 12*4 5A Solar input 2A |
|
| Voltage select | choosing through the slide switch | |||||||
| Out power (Max) | 12W | 15W | 30W | 60W | ||||
| Transfer time | 0ms | |||||||
| BATTERY | ||||||||
| Battery type | Lithium Battery | |||||||
| QTY.& capacity of battery | 4400mAh | 8800mAh | 2200mAh*8 | 2200mAh*16 | ||||
| CHARGE | ||||||||
| Charging period | 1-2hours | 2-3hours | 4-5hours | |||||
| PHYSICAL | ||||||||
| Unit Dimension(mm) | 141.5*84.5*35 | 1890*106*29 | 258*152*46 | |||||
| Net weight(Kg) | 0.3 | 0.4 | 0.94 | 1.28 | ||||
| ENVIORONMENT | ||||||||
| Envionment of performance | Temperature:0℃-40℃,Humidity:20-90% | |||||||
| Noise level | Less than 40dB | |||||||
Feature
1,High capacity lithium batteries,provides long backup to the loads.
2,High compatibility,suitable for most digital products in the market.
3,POE can transmit power and simplify wiring.
4,Intelligent circuit design with over-charging,over-discharging and short circuit protections.
5,Built-in adapter allows wide AC voltage range (100-240Vac)
6,Solar panel is acceptable for the input interface.
