Single Phase 1-10Kva Online High Frequency Ups uninterruptible power systems

Single Phase 1-10Kva Online High Frequency Ups uninterruptible power systems

10Kva Online Ups Power Supply

Ups Uninterrupted Power Supply

Place of Origin:

China

Brand Name:

G-Tech

Certification:

CCC;CE;Rohs;ISO

Model Number:

PT Series

Contact Us
Request A Quote
Product Details
Product Name:
Single Phase 1-10Kva Online High Frequency Ups Uninterruptible Power Systems
Color:
Optional
Mount Way:
Tower Type
Wave Form:
Pure Sine Wave
Application:
Computer, Telecommunications, Networking, Security, Monitoring
Phase:
One Phase And Three Phase
Output Voltage:
110V/120V/220V/230V
Input Voltage:
100-240VAC
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Carton
Delivery Time
15-25 days
Payment Terms
L/C, T/T, Western Union
Product Description

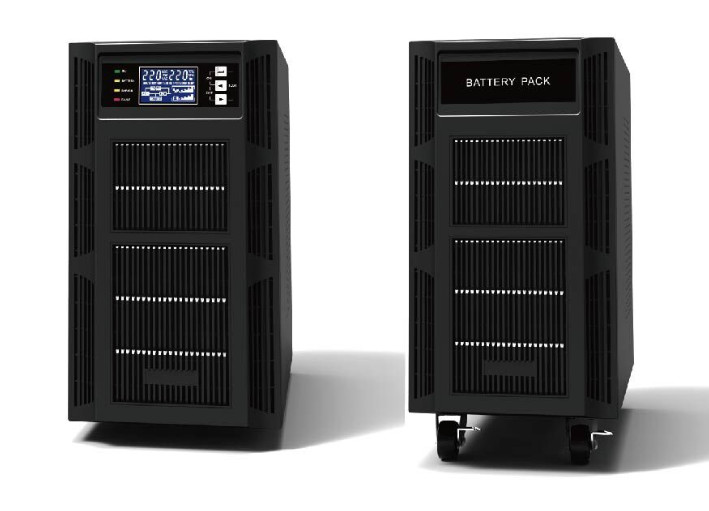

High Power factor 1.0 High Frequency Uninterruptible Power supply 1KVA-10KVA

This series of UPS applies CPU integrated control technology, which allows UPS to response promptly and accurately when power outage, high or low voltage, surge, transient or spike occurs so on. It possesses automatic startup function, automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kind of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are two alternatives.

  • Features of High Frequency Online UPS:
  • * High output power factor 1.0 ( 6KVA /6KW or 10KVA/10KW output for option)
    * battery available: 16pcs/17pcs/18pcs/19pcs/20pcs for option
    * True double-conversion
    * Microprocessor control optimized reliability
    * Input power factor correction
    * Wide input voltage(110V-300V)
    * Converter mode available
    * Generator compatible
    * Smart SNMP works well with either USB or RS232
    * Charger capacity expansion to 1~12A (settable) for long-run models, built in battery default in 1A;
Specifications
Model # PT-1KS(1KVA/1000W) PT-2KS(2KVA/2000W) PT-3KS(3KVA/3000W)
Display LCD
INPUT
Input voltage range

110~300VAC,110~176VAC,276~300VAC(power limited)





Input frequency range

50/60Hz±6Hz,± 10Hz (setable)




OUTPUT
Output voltage range 208/220/230/240VAC

Output frequency AC mode: same as AC ,Battery mode:50/60Hz±1%
Wave form Pure Sinewave
Transfer time 0ms
BATTERY
QTY & capacity of battery 2pc*12V7Ah 4pc*12V7Ah 6pc*12V7Ah
Charging period 4~6 hours recover to 90% capacity
PROTECTION & FUNCTION
PROTECTION 1. Battery low voltage protection
2. Overload protection
3. Short circuit protection

MANAGEMENT
RS232 & USB RS232, SNMP card slot, USB port

G-TECH UPS Introduction

This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds

of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.



Company Introduction



  • G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.

    The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.

    OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.

    After 17 years of efforts, we have been extended to more and more consumers. Our products are widely used in finance, securities, energy, telecommunications, transportation, communications, traffic, industrial enterprises, data center and home usage by personal purpose.

    We warmly welcome friends from all over the world to explore and negotiate with us, To build a mutual benefit and win-win friendly cooperate relationship!
