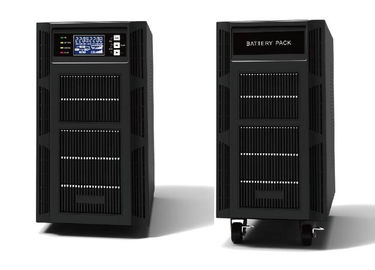

High Power Factor 1.0 High Frequency Online UPS PT series -6Kva ~10Kva online ups power supply

This series of UPS applies CPU integrated control technology, which allows UPS to response promptly and accurately when power outage, high or low voltage, surge, transient or spike occurs so on. It possesses automatic startup function, automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kind of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are two alternatives.

• Feature
• * High output power factor 1.0 ( 6KVA /6KW or 10KVA/10KW output for option)
  * battery available: 16pcs/17pcs/18pcs/19pcs/20pcs for option
  * True double-conversion
  * Microprocessor control optimized reliability
  * Input power factor correction
  * Wide input voltage(110V-300V)
  * Converter mode available
  * Generator compatible
  * Smart SNMP works well with either USB or RS232
  * Charger capacity expansion to 1~12A (settable) for long-run models, built in battery default in 1A;

Production Introduction

This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds

of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.

•

• Model	PT-6KS
  Capacity	6000VA/6000W
  INPUT
  Frequency Range	Transfer:160VAC 5%-300VAC 5%
  	No-load: 110VAC 5%-300VAC 5%
  Phase	Single phase with dual wires+earth wire
  OUTPUT
  Voltage	220VAC±2%VAC
  Frequency Range	50-60Hz(Automatic sensing) (AC mode)
  	220V:50±0.2HZ(DC mode)
  Currrent crest factor	3:1
  Wave Form	Pure Sine Wave
  Battery
  Capacity of battery	12V/7.5
  QTY	16PCS
  Transfer time	0ms
  PHYSICAL
  Dimension(mm)	500*248*616
  Net weight(kg)	57
  Management
  Interface	RS232,Interlling Slot Selectable

•
