ABS 12v 7ah Valve Regulated Sealed Lead Acid Battery

  • ABS 12v 7ah Valve Regulated Sealed Lead Acid Battery
  • ABS 12v 7ah Valve Regulated Sealed Lead Acid Battery
  • ABS 12v 7ah Valve Regulated Sealed Lead Acid Battery
Place of Origin China
Brand Name G-Tech power
Certification CE and ROHS
Model Number GT12-7
Minimum Order Quantity 1000
Price Negotiation
Packaging Details carton
Delivery Time 30 days
Payment Terms T/T, Western Union, L/C
Supply Ability 50,000pcs/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 7Ah@20hr-rate To 1.75V Per Cell @25 C Voltage 12V
Weight Approx. 2.05 Kg Sealed Type Sealed
Self Discharge Up To 6 Months At 25 C. Self-discharge Ratio Less Than 3% O Per Month At 25 C. Please Charge Batteries Before Using Terminal Terminal F1/F2
Highlight

7ah Vrla Rechargeable Battery

,

12v Vrla Deep Cycle Battery
Leave a Message
Product Description

12V 7Ah lead acid battery for ups backup powerABS 12v 7ah Valve Regulated Sealed Lead Acid Battery 0

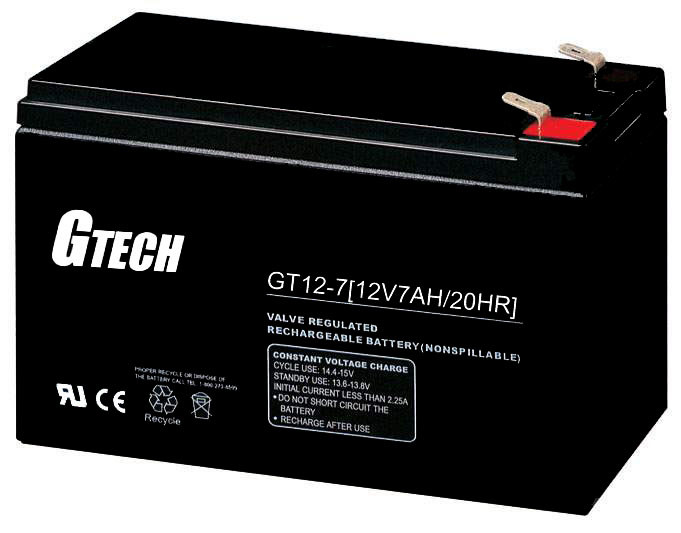

GT12-7.0(12V7Ah)

Features:
Structure: compact design, shorter internal connectors between cells, thus low internal resistance
Plate: Pasted flat type, with patent formula of AM
Terminal: Two or more types terminals are convenient for selection
Vent system: Gas can be vented through flame arrester
Separator: Using improved AGM separator, make lower resistance higher assembling pressure to increase cycle life
Battery case: Made of high strength ABS and UL94-V0 is optional
Terminal sealing: Double sealing technics(mechanical+epoxy gule)

Application:
Small UPS
Emergency Light
Security System
Toys
Illumination light
Fire alarms
Medical equipments

Specification
Cells Per Unit
6
Voltage Per Unit
12
Capacity
7Ah@20hr-rate to 1.75V per cell @25 C
Weight
Approx. 2.05 Kg
Max. Discharge Current
70A (5 sec)
Internal Resistance
Approx. 25 mΩ
Operating Temperature Range
Discharge: -20 C~60 C
Charge: 0 C~50 C
Storage: -20 C~60 C
Normal Operating
Temperature Range
25 C±5 C
Float charging Voltage
13.7 to 13.9 VDC/unit Average at 25 C
Recommended Maximum
Charging Current Limit
2.16 A
Equalization and Cycle Service
14.6 to 14.8 VDC/unit Average at 25 C
Self Discharge
Up to 6 months at 25 C. Self-discharge ratio less than 3%
o per month at 25 C. Please charge batteries before using.
Terminal
Terminal F1/F2
Container Material
A.B.S. (UL94-HB) , Flammability resistance of UL94-V1
can be available upon request.



Constant Current Discharge Characteristics : A(25 C)
ABS 12v 7ah Valve Regulated Sealed Lead Acid Battery 1
ABS 12v 7ah Valve Regulated Sealed Lead Acid Battery 2
ABS 12v 7ah Valve Regulated Sealed Lead Acid Battery 3
Discharge Current VS. Discharge Voltage
Final Discharge
Voltage V/cell
1.75V
1.70V
1.60V
Discharge
Current (A)
A≤ 0.2C
0.2C < A < 1.0C
A ≥ 1.0 C



Charging Method:
Constant Voltage
-0.2Cx2h+2.4~2.45V/Cellx24h,Max. Current 0.3CA
Constant Current
-0.2Cx2h+0.1CAx12h
Fast
-0.2Cx2h+0.3CAx4.0h
