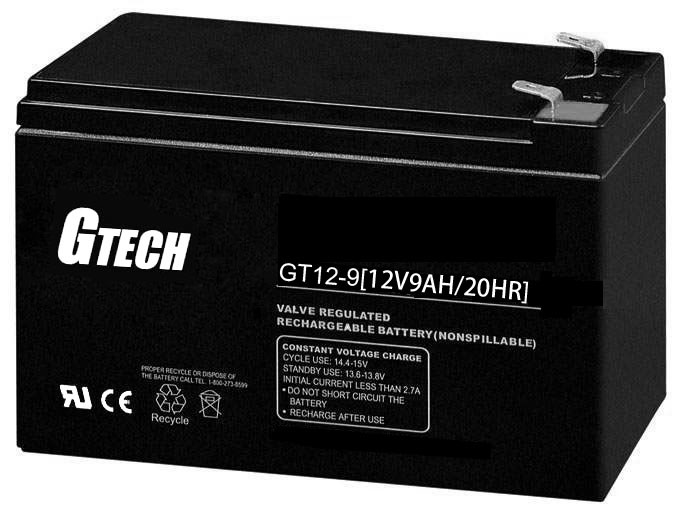

Telecom UPS Backup Power 12v 9Ah VRLA Lead Acid Battery

Telecom UPS Backup Power 12v 9Ah VRLA Lead Acid Battery

9Ah Vrla Rechargeable Battery

12v Vrla Deep Cycle Battery

Place of Origin:

China

Brand Name:

G-Tech power

Certification:

CE and ROHS

Model Number:

GT12-9

Contact Us
Request A Quote
Product Details
Material:
Printed
Capacity:
9Ah@20hr-rate To 1.75V Per Cell @25 C
Voltage:
12V
Weight:
Approx. 2.55 Kg
Usage:
UPS,Telecom,solar System,alarm Systerm
Sealed Type:
Sealed
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
Negotiation
Packaging Details
carton
Delivery Time
30 days
Payment Terms
T/T, Western Union, L/C
Supply Ability
50,000pcs/day
Product Description

12V 9Ah lead acid battery for ups backup powerTelecom UPS Backup Power 12v 9Ah VRLA Lead Acid Battery 0

GT12-9.0
(12V9Ah)
Features:
Structure: compact design, shorter internal connectors between cells, thus low internal resistance
Plate: Pasted flat type, with patent formula of AM
Terminal: Two or more types terminals are convenient for selection
Vent system: Gas can be vented through flame arrester
Separator: Using improved AGM separator, make lower resistance higher assembling pressure to increase cycle life
Battery case: Made of high strength ABS and UL94-V0 is optional
Terminal sealing: Double sealing technics(mechanical+epoxy gule)

Application:
Small UPS
Emergency Light
Security System
Toys
Illumination light
Fire alarms
Medical equipments

Specification
Cells Per Unit
6
Voltage Per Unit
12
Capacity
9Ah@20hr-rate to 1.75V per cell @25 C
Weight
Approx. 2.55 Kg
Max. Discharge Current
90A (5 sec)
Internal Resistance
Approx. 18 mΩ
Operating Temperature Range
Discharge: -20 C~60 C
Charge: 0 C~50 C
Storage: -20 C~60 C
Normal Operating
Temperature Range
25 C±5 C
Float charging Voltage
13.7 to 13.9 VDC/unit Average at 25 C
Recommended Maximum
Charging Current Limit
2.16 A
Equalization and Cycle Service
14.6 to 14.8 VDC/unit Average at 25 C
Self Discharge
Up to 6 months at 25 C. Self-discharge ratio less than 3%
o per month at 25 C. Please charge batteries before using.
Terminal
Terminal F1/F2
Container Material
A.B.S. (UL94-HB) , Flammability resistance of UL94-V1
can be available upon request.





Telecom UPS Backup Power 12v 9Ah VRLA Lead Acid Battery 1



Telecom UPS Backup Power 12v 9Ah VRLA Lead Acid Battery 2

Telecom UPS Backup Power 12v 9Ah VRLA Lead Acid Battery 3
Telecom UPS Backup Power 12v 9Ah VRLA Lead Acid Battery 4
Discharge Current VS. Discharge Voltage
Final Discharge
Voltage V/cell
1.75V
1.70V
1.60V
Discharge
Current (A)
A≤ 0.2C
0.2C < A < 1.0C
A ≥ 1.0 C



Charging Method:
Constant Voltage
-0.2Cx2h+2.4~2.45V/Cellx24h,Max. Current 0.3CA
Constant Current
-0.2Cx2h+0.1CAx12h
Fast
-0.2Cx2h+0.3CAx4.0h



Charge the batteries at least once every six months, if they are stored at 25 C
Avoid battery over discharge, especially battery sereis connection use..
