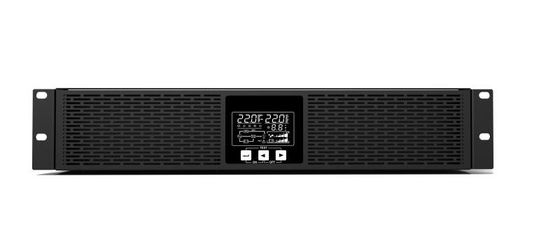

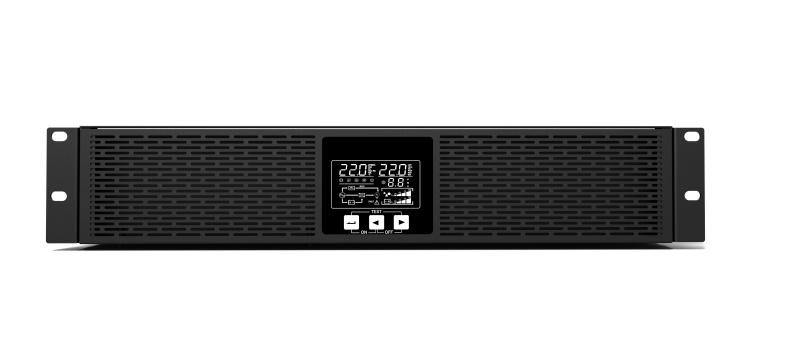

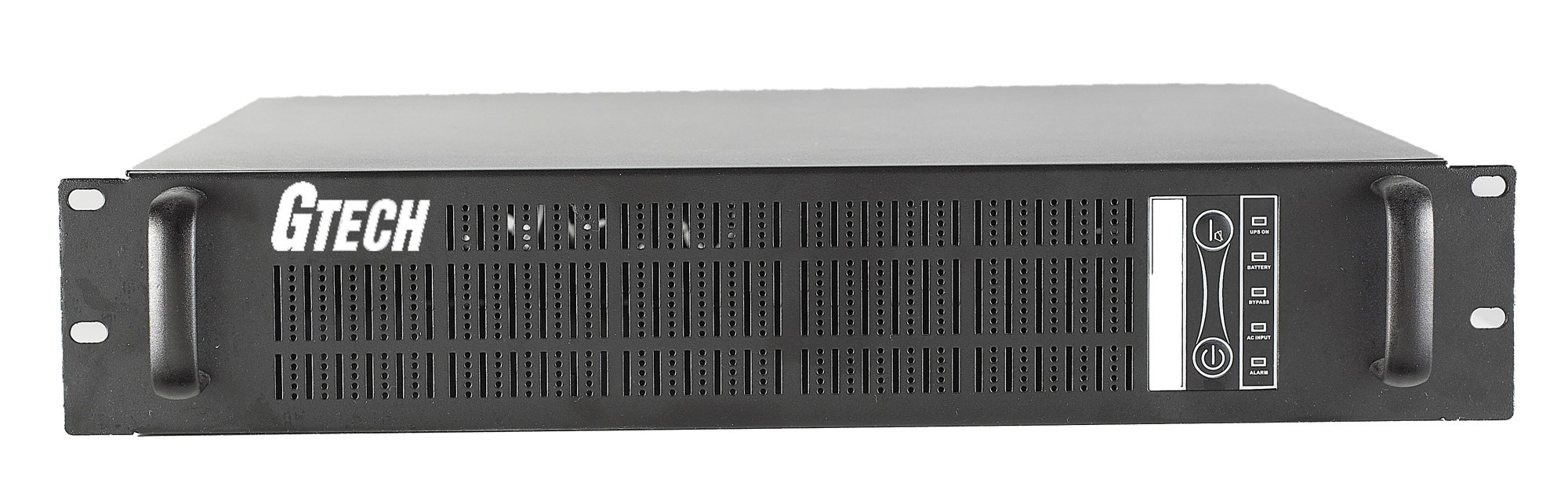

1-10KVA High Frequency Online UPS Rack Mounted UPS Output Power Factor 0.9 With LED / LCD Status Display

• True Double-conversion online UPS
• Output power factor 0.9
• Generator Compatible
• High frequency Online UPS
• Mircroprocessor control optimizes reliablity
• 1KVA-10KVA Online high frequency UPS
• USB Port, RS232, SNMP Slot, DB9 port, dry contact

Product Introduction

This series UPS applies CPU integrated control technology, which allows UPS to response promptly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its surge protection port provides protection for special external devices, such as printers and so on. It possesses automatic startup function, automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds of electric power enviroment. In addition, its design is humanized and elegant with LED or LCD display, those are two alternatives.

•

• Model #	RT-1KS	RT-1KL	RT-2KS	RT-2KL	RT-3KS	RT-3KL	RT-6KS	RT-6KL	RT-10KS	RT-10KL
  Rated Power	1KVA/900W		2KVA/1800W		3KVA/2700W		6KVA/5400W		10KVA/9000W
  Display	LCD
  INPUT
  Voltage Range	Transfer	145VAC±5% or 300VAC±5%					120-275VAC
  	comback	140VAC±5% or 290VAC±5%
  Frequency	40-70Hz						46-50Hz or 56-60Hz
  OUTPUT
  Output Voltage	220/230/240VAC
  Frequency	47-53Hz or 57-63Hz(Synchronized Range)						50/60Hz*(1±0.1%)Hz(Batt. Mode)
  	50Hz±0.25Hz or 60Hz±0.3Hz(Battery Mode)
  Wave Form	Sine Wave
  BATTERY
  QTY &capacity of Battery	Built-in: 2pcs*12V/7AH	---------	Battery Pack: 6pcs*12V/7AH	---------	BatteryPack: 6pcs*12V7/AH	---------	BatteryPack: 16pcs*12V/7Ah	-----------	Batterypack:  16pcs*12v/7Ah	-----------
  External Battery Norminal DC	-------------------	36VDC	-------------------	72VDC	-------------------	96VDC	--------------------	192VDC	----------------------	192VDC
  Transfer Time	0ms
  Overload Capacity	105%-110%:Only a warning   110%-130%:UPS shut down after 1min at battery mode or transfer to bypass when the untility is normal ＞130%:UPS shut down immediately at battery mode or transfer to bypass when the untility is normal
  Interface	220V:RJ45/11＋RS232,USB or SNMP Solt selectable (optional)
  Protection
  Protections	Auto re-start when AC recovers; Slient Set-up; Automatical Charging(Offline Charging); Battery Low voltage protection; Over-load and short circut protection
  PHYSICAL
  Unit Dimension(mm)	482*87*420						482.6*130*600
  Gross weight(kg)	11	12	12.5	13.5	12.7	13.7	18.7	19.7	20.5	21.5
  Net weight(kg)	8	9	9.1	10.1	9.3	10.3	14.6	15.6	16.4	17.4
  All UPS weight with NO battery including
  Certificate	CE
  EMC Directive	EN62040-2,EN61000-3-2						EN2040-2
  LVD Directive	EN62040-1						EN62040-1



•
•
