Uninterruptible Power Supply 1KVA 2KVA 3KVA 6KVA 10KVA High Frequency Online UPS

Uninterruptible Power Supply 1KVA 2KVA 3KVA 6KVA 10KVA High Frequency Online UPS

7AH High Frequency Online UPS

2KVA High Frequency Online UPS

2KW Online Uninterrupted Power Supply

Place of Origin:

China

Brand Name:

G-Tech

Certification:

ISO, CE, ROHS

Model Number:

Rack UPS

Contact Us
Request A Quote
Product Details
Product Name:
High Power Factor 1.0 High Frequency Online UPS PT Series 1Kva To 10Kva
Wave Form:
Pure Sine Wave
Application:
Computer, Telecommunications, Networking, Security, Monitoring
Phase:
One Phase In, One Phase Out
OEM Service:
Support, Free Of Charge
Warranty:
3 Years
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Carton
Delivery Time
25-30 days
Payment Terms
L/C, T/T, Western Union
Product Description

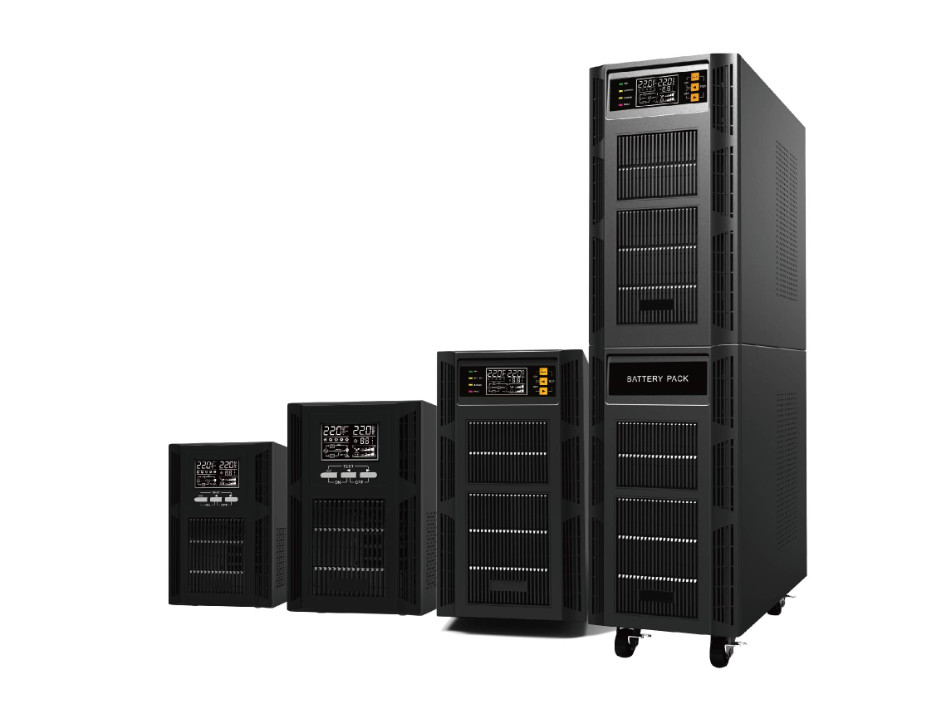

Tower type Power factor 1.0 High Frequency Uninterruptible Power supply 1KVA-10KVA

1-12A Charger current, adjustable by user

This series of UPS applies CPU integrated control technology, which allows UPS to response promptly and accurately when power outage, high or low voltage, surge, transient or spike occurs so on. It possesses automatic startup function, automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kind of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are two alternatives.


Production Introduction

This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds

of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.



Model # PT-1KS PT-1KL PT-2KS PT-2KL PT-3KS PT-3KL
Capacity 1KVA / 1KW 2KVA / 2KW 3KVA /3KW
Display LCD
INPUT
Voltage range Full load 85~140 VAC or 160~280 VAC
half load 55~150 VAC or 110~300 VAC
Frequency Range 40Hz~70Hz
Phase Single phase with ground
Power factor ≥ 0.99 @ 220-230 VAC (input voltage)
OUTPUT
Output voltage range 100/110/115/120/127VAC or 200/208/220/230/240VAC
AC Voltage Regulation ± 1% (Batt. Mode)
Frequency Range Line Mode: (Synchronized Range) , Batt. Mode: 50/60Hz±0.1%
Overload Line Mode: 1min@105%~125%Load 30s@125~150% Load 0.5ms@>150%Load
Current Crest Ratio 3:1
Harmonic Distortion ≤2% THD (Linear load); ≤5% THD (non-linear load)
Transfer time AC Mode to Batt. Mode: Zero
Inverter to Bypass: 4ms (Typical)
Wave form (Batt. Mode) Pure Sine Wave
EFFICIENCY
AC Mode Peak efficiency 93% Peak efficiency 94% Peak efficiency 94%
Full load efficiency 90% Full load efficiency 91% Full load efficiency 91%
BATTERY
Battery type ( standard model) 12 / 7AH
Capacity & quantity of battery 2pcs*12V7Ah ------- 6(4)pcs*12V7Ah ------- 6(8)*12V7Ah -------

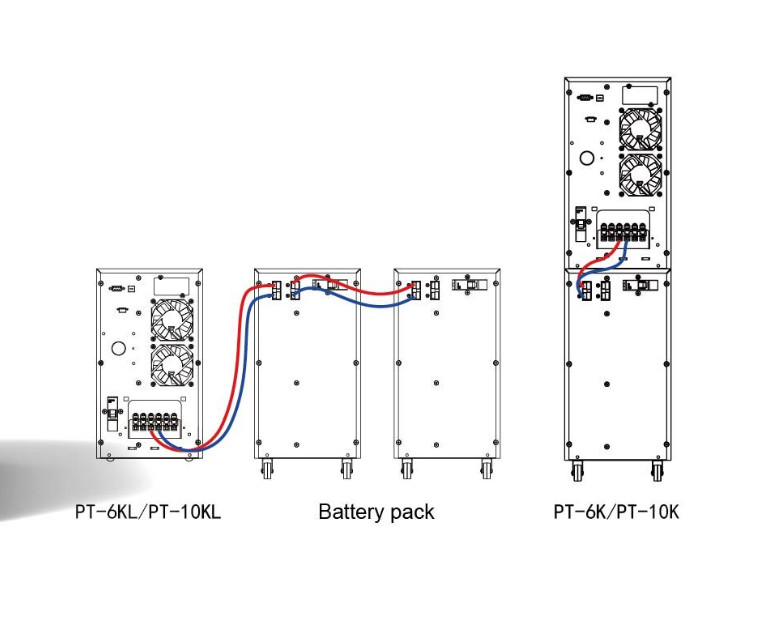

External battery norminal DC voltage ------- 36VDC ------- 72VDC ------- 96VDC
Recharge Time 4 hours recover to 90% capacity ( Typical) , depends on users' needs
Charging Current 1.0 (default) 1~12A(settable) External battery pack 1~12A(settable) 1.0 (default) 1~12A(settable) External battery pack 1~12A(settable) 1.0 (default) 1~12A(settable) External battery pack 1~12A(settable)






Company Introduction



  • G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.

    The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.

    OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.

    After 17 years of efforts, we have been extended to more and more consumers. Our products are widely used in finance, securities, energy, telecommunications, transportation, communications, traffic, industrial enterprises, data center and home usage by personal purpose.

    We warmly welcome friends from all over the world to explore and negotiate with us, To build a mutual benefit and win-win friendly cooperate relationship!
