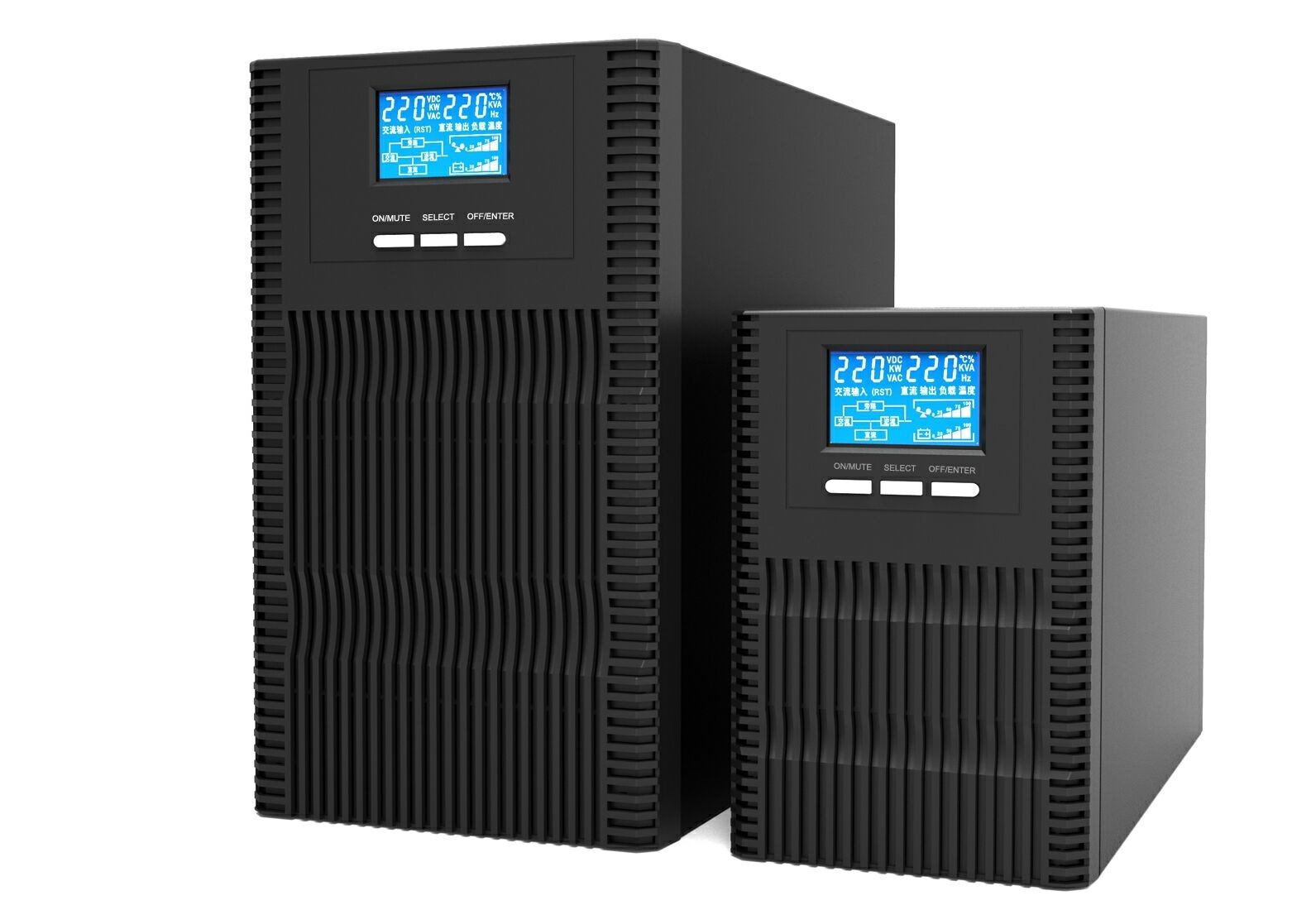

Single Phase Sine Wave 10kva High Frequency Online UPS

Production Introduction

This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds

of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.

Suitable for IT and network equipment,Embedded and automatic control system,

Office and business equipment

1~10KVA High frequency Online UPS power factor 1.0

Model #

PT-6KS

PT-6KL

PT-10KS

PT-10KL

Capacity

6KVA/6000W

10KVA/10000W

Front panel

Rear panel

Display

LCD

INPUT

Input voltage range

110~300VAC,110~176VAC,280~300VAC(power limited)

Input frequency range

50/60Hz±6Hz,± 10Hz (setable)

OUTPUT

Output voltage range

208/220/230/240VAC

Output frequency

AC mode: same as AC ,Battery mode:50/60Hz±1%

Wave form

Pure Sinewave

Transfer time

0ms

BATTERY

QTY & capacity of battery

20pcs*12V7Ah

----------

20pcs*12V7Ah

-----------

Charging period

4~6 hours recover to 90% capacity

PROTECTION & FUNCTION

PROTECTION

1. Battery low voltage protection 2. Overload protection 3. Short circuit protection

MANAGEMENT

RS232 & USB & EPO

Optional

PHYSICAL

Unit dimension (mm)

461*200*800

461*200*360

461*200*800

461*200*360

Master box dimension (mm)

605*300*989

585*300*520

605*300*989

585*300*520

Pcs in one master carton

1

1

1

1

Gross weight (1pc, kg)

61

14

61.5

14.8

Net weight (1pc, kg)

55

12.4

55.25

12.7

Company Introduction

• G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.

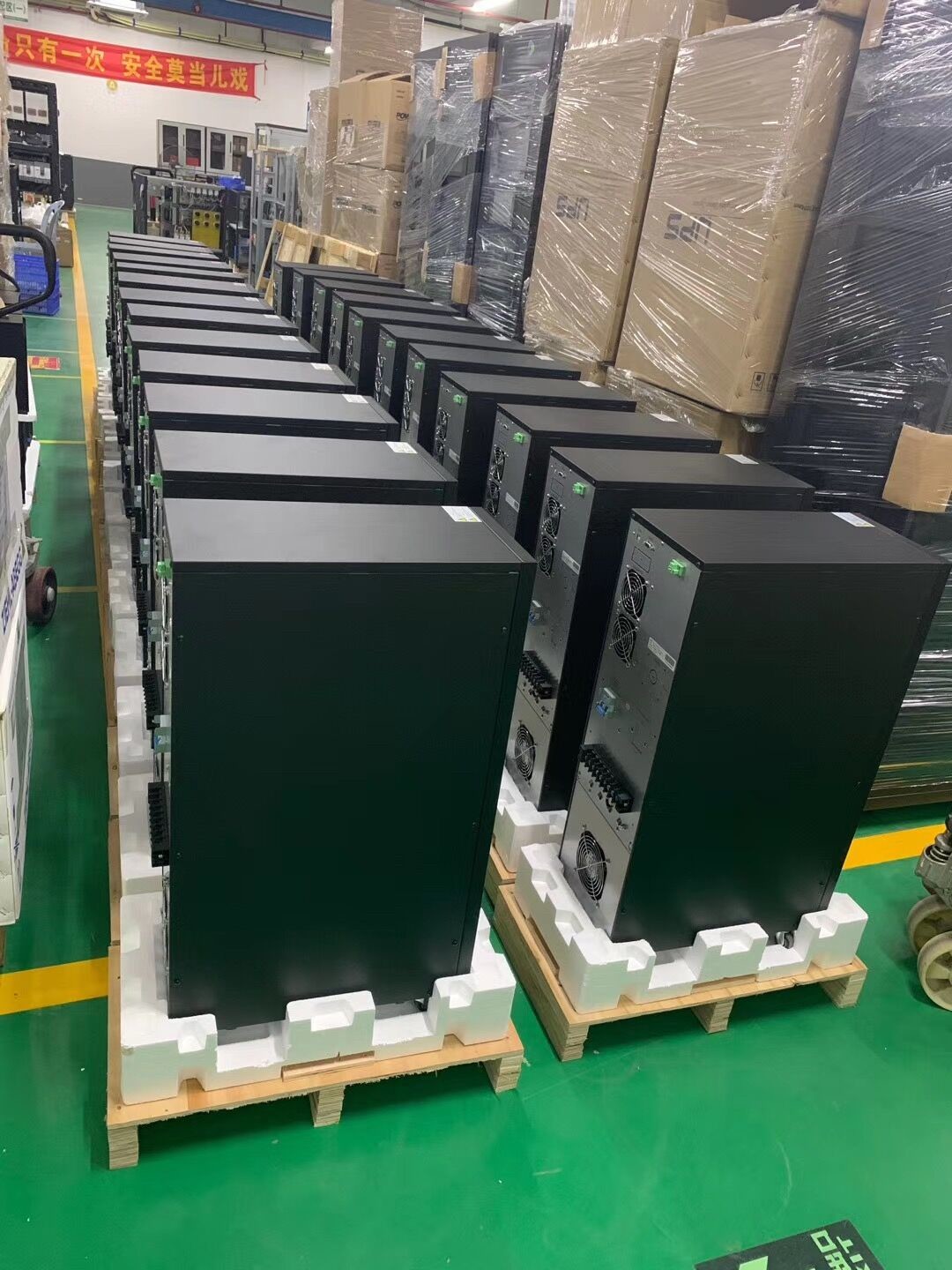

  The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.

  OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.

  After 17 years of efforts, we have been extended to more and more consumers. Our products are widely used in finance, securities, energy, telecommunications, transportation, communications, traffic, industrial enterprises, data center and home usage by personal purpose.

  We warmly welcome friends from all over the world to explore and negotiate with us, To build a mutual benefit and win-win friendly cooperate relationship!
