Top Sockets 800VA 1000VA 1500VA USB Line Interactive UPS
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Protection | Low Voltage Protection,overload Discharge Overcharge | Type | Line Interactive UPS |
|---|---|---|---|
| Phase | Single Phase | Free OEM Service | Support |
| Battery | Sealed Lead Acid Batteries | Sockets | GERMAN, UNIVERSAL, ITALY, ETC. |
| Highlight | 800VA Line Interactive UPS,Top Sockets Line Interactive UPS,OEM best line interactive ups |
||
Product Description

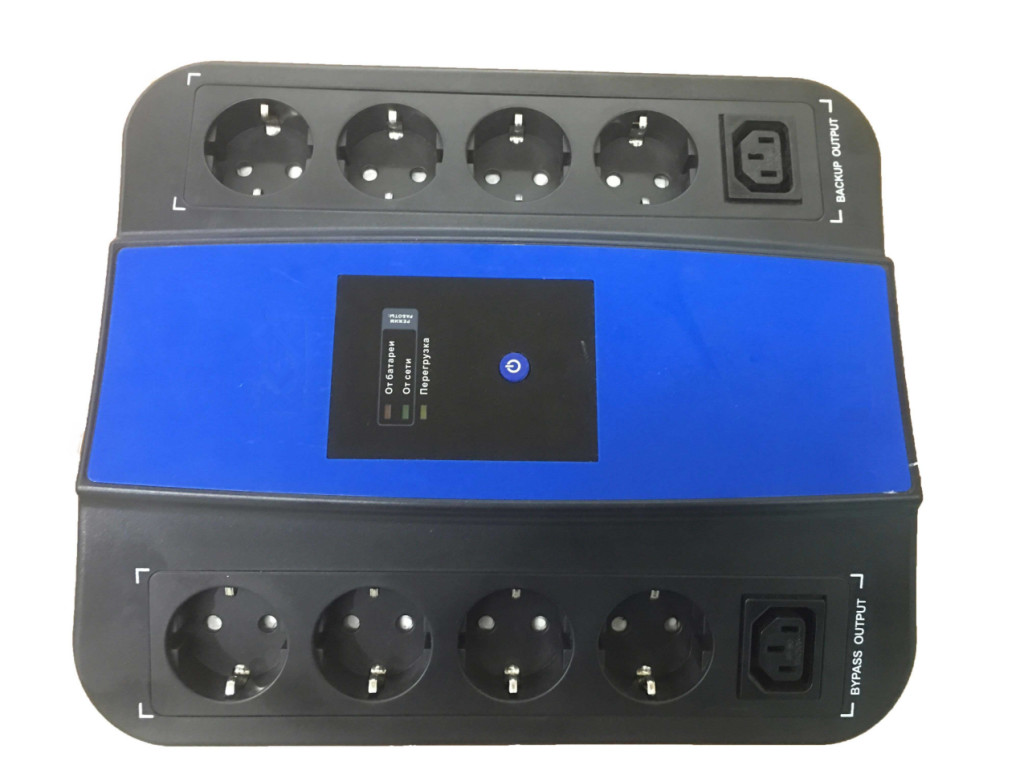

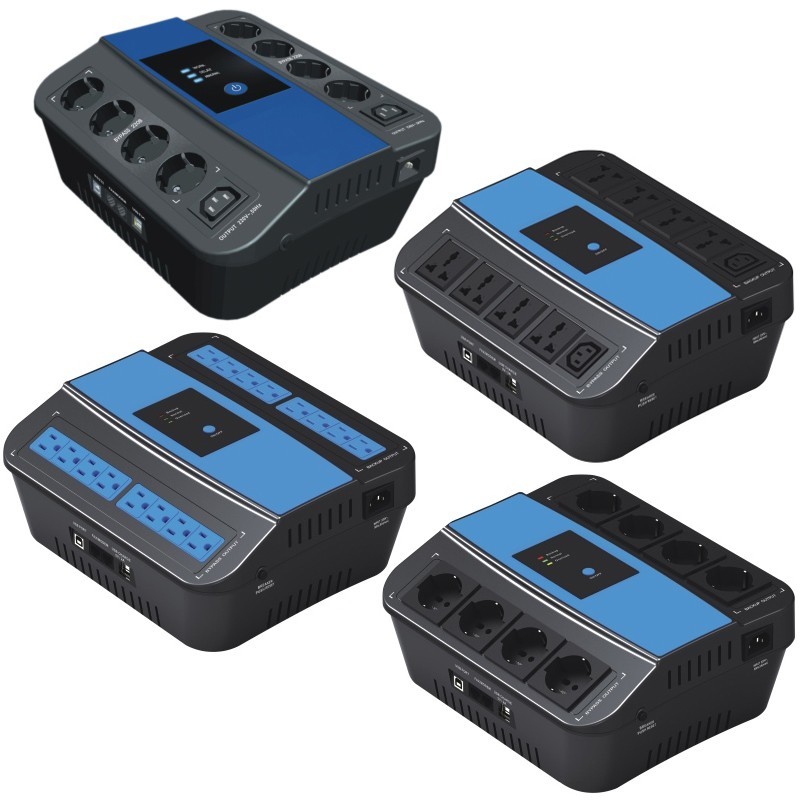

Top Sockets 800VA 1000VA 1500VA USB Line Interactive UPS Simulated Sine Wave, Schuko Sockets
TOP SOCKETS LINE INTERACTIVE UPS 600VA 850VA 1000VA with USB
| Fields of application |
Suitable for the PC,router,POS machine communication processor,industrial products which for the enterprises,government,scientific research,traffic,national defense,information and education industries.
| Specifications |
| Model | U-650 | U-850 | U-1000 |
| Input | |||
| Input Voltage range | 165 -275 Vac | ||
| Input Frequency Range | 65/45Hz | ||
| Output | |||
| Output Voltage | 230Vac | ||
| Output voltage range | 198-242Vac | ||
| Output frequency | 65/45Hz | ||
| Output wave form | PWM | ||
| Battery | |||
| Battery Rating | 12V/7Ah | 12V/9Ah | 12V/9Ah |
| Charging Period | 4-6 hours recover to 90% capacity | ||
| Socket | Universal/Intalian/American/European | ||
| Protection | |||
| Full Protection | Low voltage & overload & short circuit protection | ||
| Physical | |||
| Net weight (KG) | 4.8kgs | 5.6kgs | 6.4kgs |
| Unit Dimension mm | 280 * 245 * 130 mm | ||
| Environment | |||
| Environment of performance | temperature 0~40 degree, humidity 20%~90% | ||
| Noise level | Less than 40dB | ||
| Performance Characteristics |
1. Wide range of input voltage
The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.
2. Wide range of AVR(Automatic voltage regulation)
In the product's input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.
3. Automatic self detection when UPS on(LED).
Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.
4. Silence function
In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.
5. Overload protection
In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.
6. Short circuit protection
When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.
7. The low current switch
This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.
8. Automatic charging
There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.
9. With a bypass output
Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.
Factory Profile:
G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.
The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.
OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.
