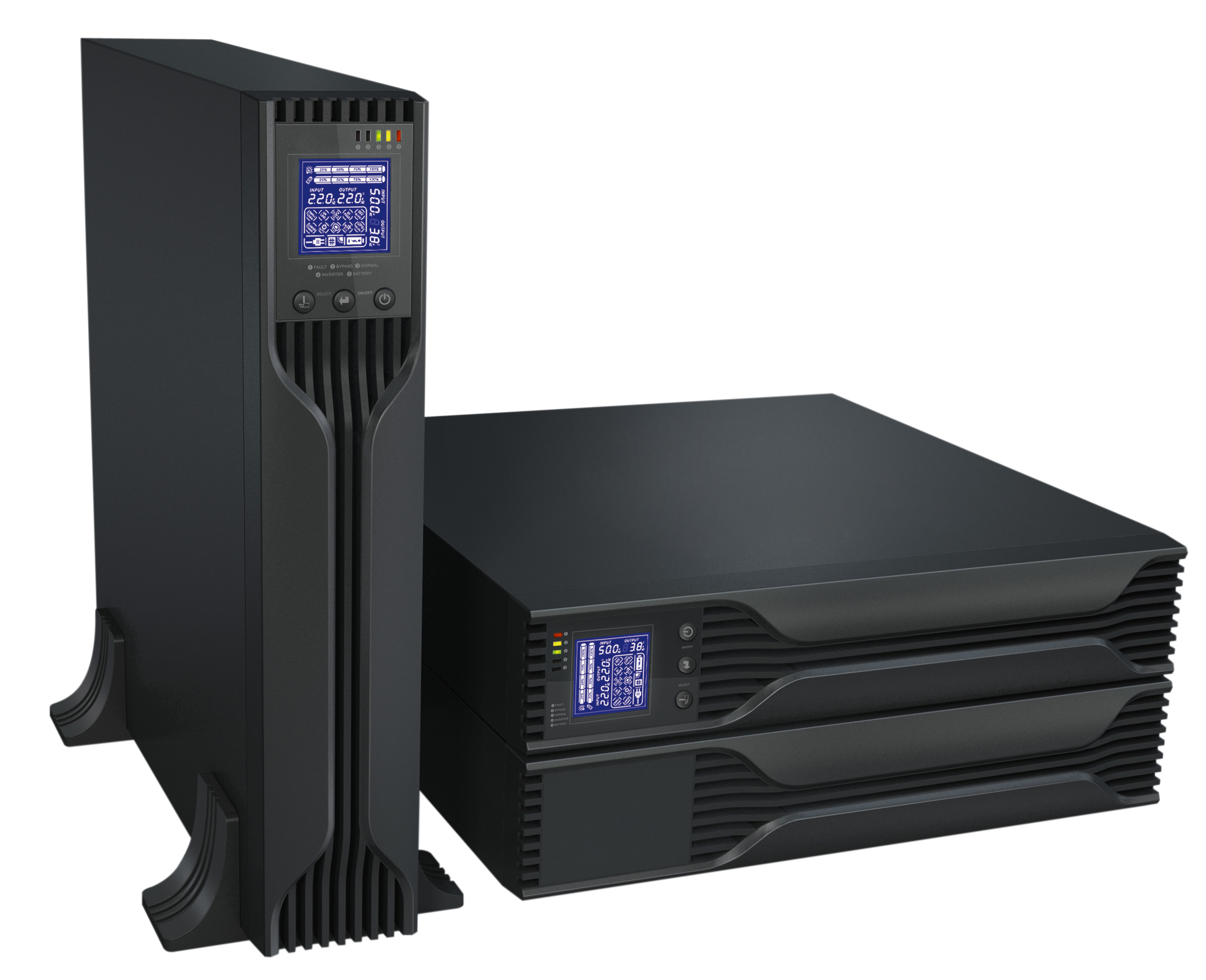

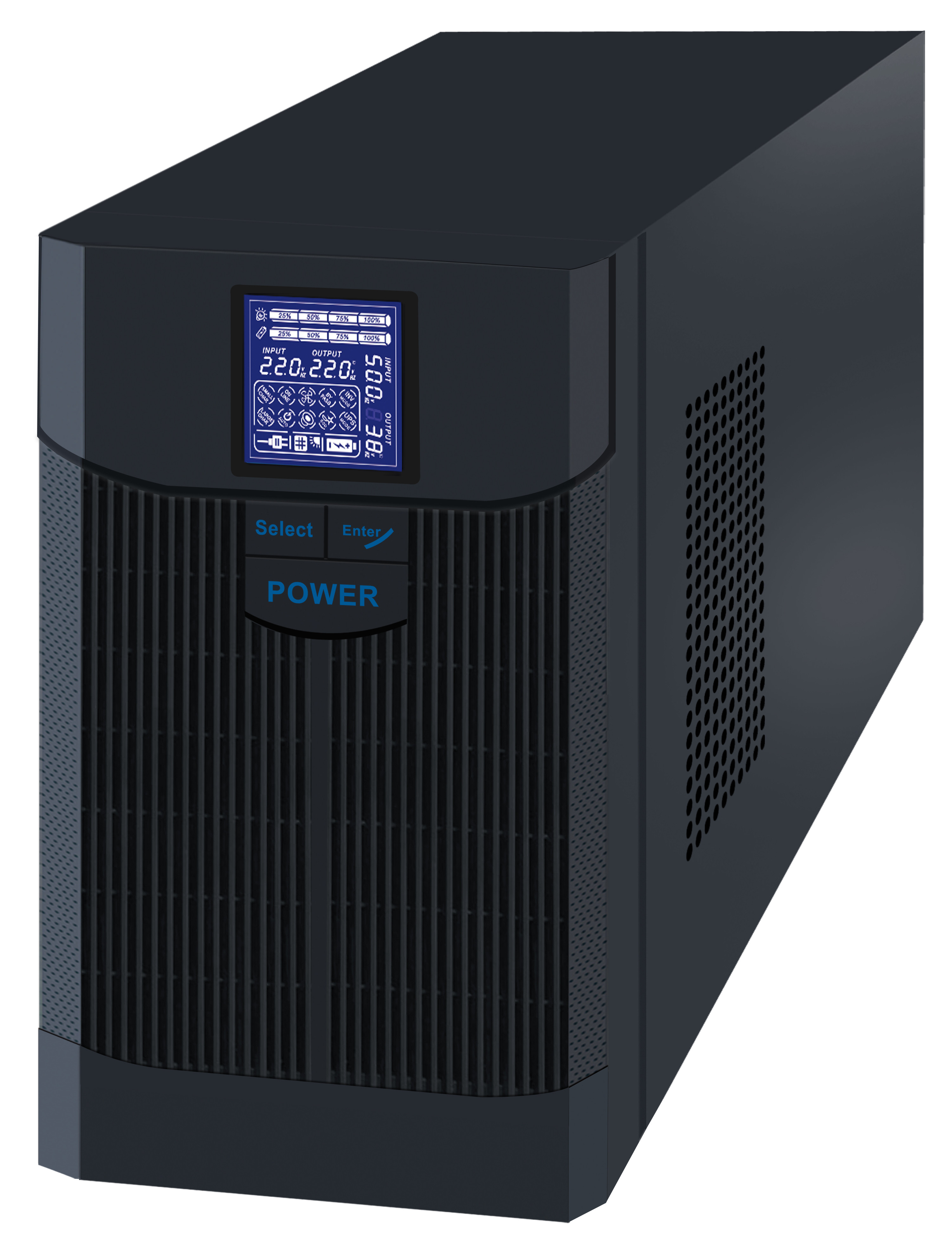

line interactive ups pure Sine Wave 600VA 800VA 1KVA 1.5KVA 2KVA 3KVA 5KVA uninterruptible power supply ups power supply

Pure Sine Wave, LED or LCD, Metal, Plastic case, support USB communication &RJ45/11, with Wide input voltage range

• Feature:

  1. CPU controlled

  2.Auto re-starts when AC recovers

  3.Silence setup

  4.Automatic charging (offline charging)

  5.Battery low voltage protection

  6.Overload & short circuit protection

  7.Wide input voltage range



  Application:

  Suitable for the PC, router, POS machine communication processor, industrial products which for the enterprises, government, scientific research, traffic, national defense, information and education industries.

•

Specification:

Model #

SL-1K

SL-1.5K

SL-2K

SL-3K

SL-5K

SL-1KL

SL-1.5KL

SL-2KL

SL-3KL

SL-5KL

Capacity

1000VA/800W

1500VA/1200W

2000VA/1600W

3000VA/2400W

5000VA/3.5KW

1000VA/800W

1500VA/1200W

2000VA/1600W

3000VA/2400W

5000VA/3.5KW

Display

LCD

AC Mode

Input voltage range

230V: 145~275Vac

Input frequency

50Hz (48Hz-54Hz)

Output voltage range

230V: 200~240Vac

Efficienty

≥ 96% (AC mode)

Inverter Mode

Output voltage range

220Vac±5%

Output frequency

50±0.5Hz

Output wave form

Pure sine wave

Transfer time

Typical 2~6ms, Max.10ms.

Overload capability

Automally shut down in 60sec while with 110% load, and shut down in 5sec while with 120% load

BATTERY

QTY & capacity of battery

2 pc*12V7Ah

2 pc*12V9Ah

4pcs*12V7Ah

4pcs*12V9Ah

4pcs*12V17Ah

External batteries(24V), capacity depends on user's choice.

External batteries(48V), capacity depends on user's choice.

Charging period

6~8 hours recover to 90% capacity

Charging current

2-5A

5A/10A

MANAGEMENT

USB

Optional (Refer to customers' requires)

PROTECTION

PROTECTIONS

1. Auto re-starts when AC recovers 2. Automatic charging (offline charging) 3. Battery low voltage protection 4. Overload & Short circuit protection 4.Over current protection (Breaker for AC mode; System automaticlly shut down wihin 20ms in Inverter mode).

PHYSICAL

Unit dimension (mm)

405*145*220

455*195*330

/

405*145*220

455*195*330

Net weight (1pc, kg)

11

13

22.0

24.5

/

9.2

11.8

18.0

21.4

41.5

Note: If any place do not meet your requires, please feel free to contact me.
