Pure Sine Wave Single Phase 6Kva Computer Ups Online

• Feature
• * High output power factor 1.0 ( 6KVA /6KW or 10KVA/10KW output for option)
  * battery available: 16pcs/17pcs/18pcs/19pcs/20pcs for option
  * True double-conversion
  * Microprocessor control optimized reliability
  * Input power factor correction
  * Wide input voltage(110V-300V)
  * Converter mode available
  * Generator compatible
  * Smart SNMP works well with either USB or RS232
  * Charger capacity expansion to 1~12A (settable) for long-run models, built in battery default in 1A;

Production Introduction

This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds

of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.

Model #			PT-6KS		PT-6KL	PT-10KS	PT-10KL
Capacity			6KVA/6000W			10KVA/10000W

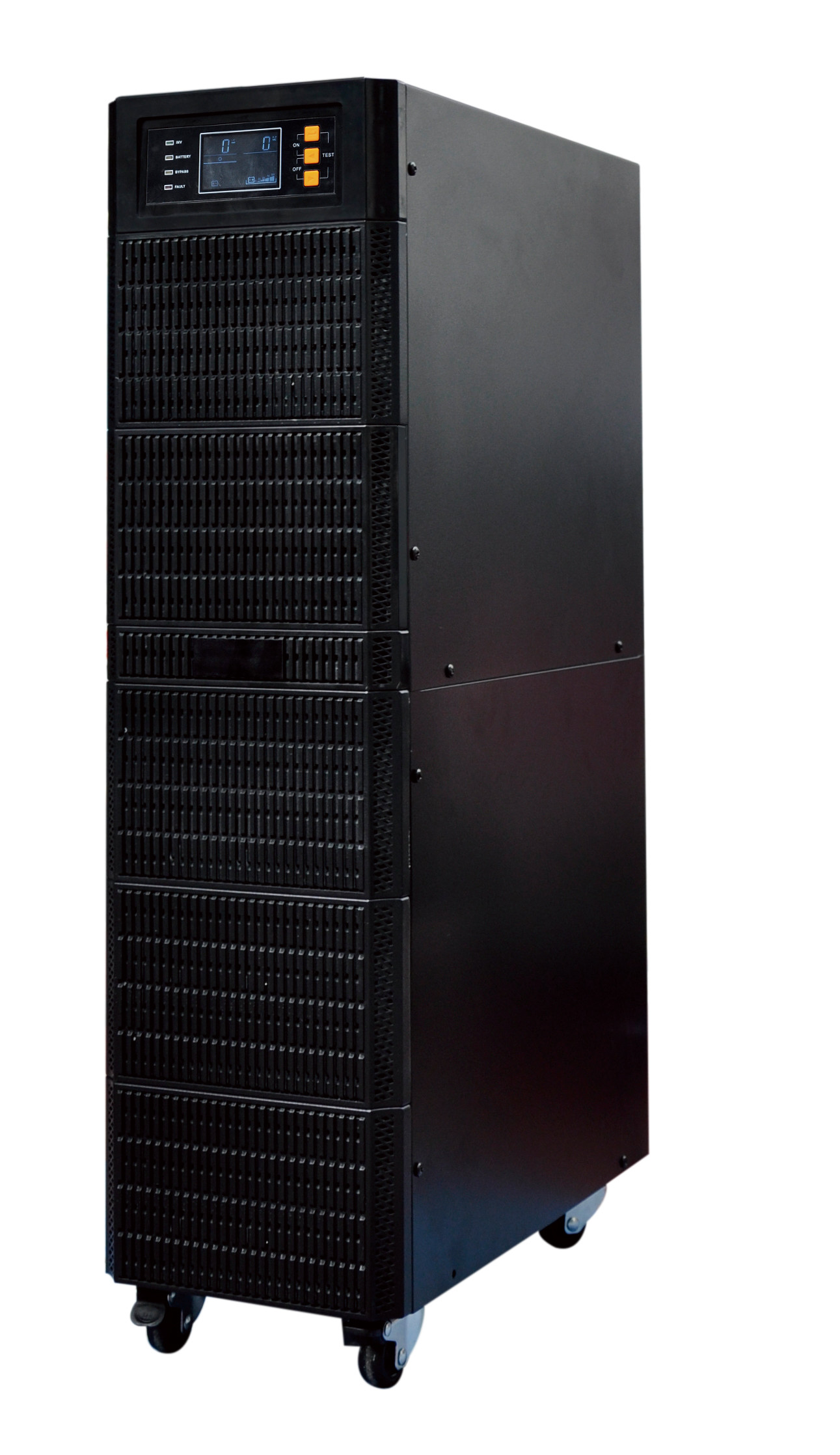

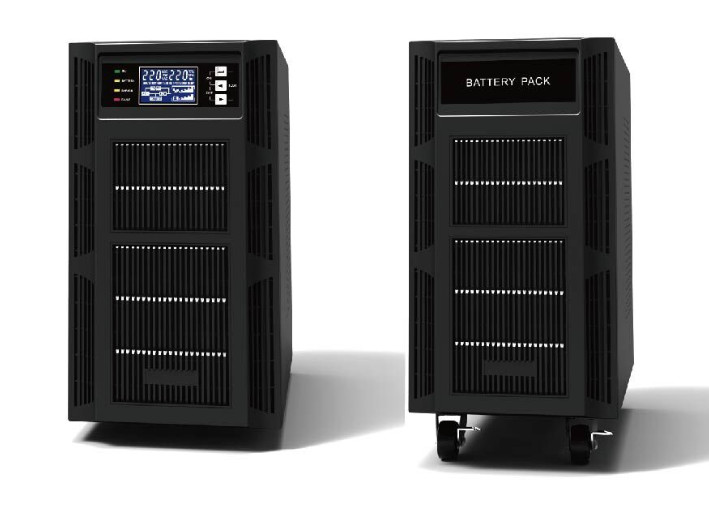

Front panel

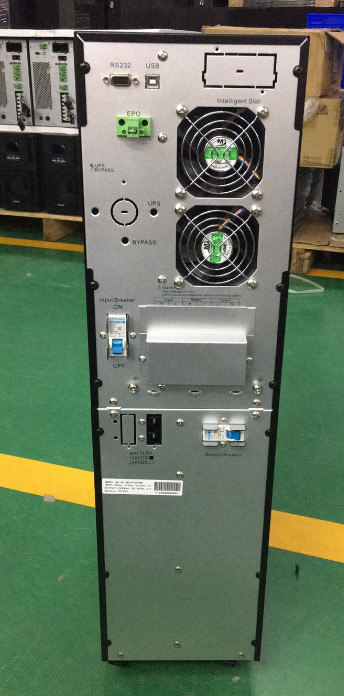

Rear panel
Display			LCD
INPUT
Input voltage range			110~300VAC,110~176VAC,280~300VAC(power limited)
Input frequency range			50/60Hz±6Hz,± 10Hz (setable)
OUTPUT
Output voltage range			208/220/230/240VAC
Output frequency			AC mode: same as AC ,Battery mode:50/60Hz±1%
Wave form			Pure Sinewave
Transfer time			0ms
BATTERY
QTY & capacity of battery			20pcs*12V7Ah			----------	20pcs*12V7Ah	-----------
Charging period			4~6 hours recover to 90% capacity
PROTECTION & FUNCTION
PROTECTION			1. Battery low voltage protection 2. Overload protection 3. Short circuit protection
MANAGEMENT
RS232 & USB & EPO			Optional
PHYSICAL
Unit dimension (mm)			461*200*800		461*200*360	461*200*800	461*200*360
Master box dimension (mm)			605*300*989		585*300*520	605*300*989	585*300*520
Pcs in one master carton			1		1	1	1
Gross weight (1pc, kg)			61		14	61.5	14.8
Net weight (1pc, kg)			55		12.4	55.25	12.7

Company Introduction

• G-tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.

  The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.

  OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.

  After 17 years of efforts, we have been extended to more and more consumers. Our products are widely used in finance, securities, energy, telecommunications, transportation, communications, traffic, industrial enterprises, data center and home usage by personal purpose.

  We warmly welcome friends from all over the world to explore and negotiate with us, To build a mutual benefit and win-win friendly cooperate relationship!
