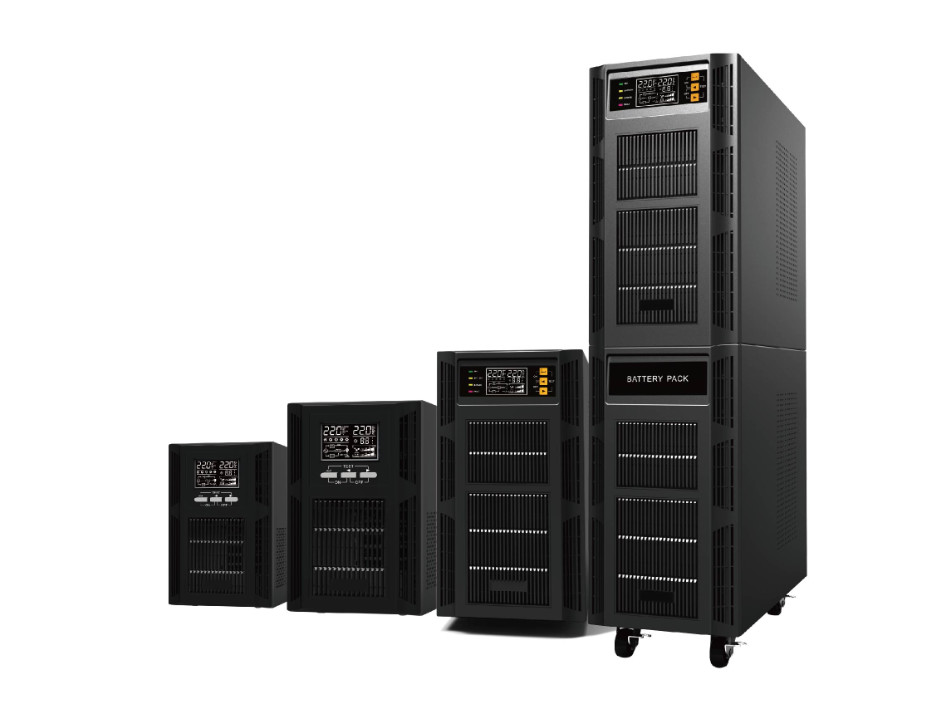

Single Phase 1kva 10Kva High Frequency Home Ups Online

Single Phase 1kva 10Kva High Frequency Home Ups Online

1kva Online High Frequency UPS

16pcs battery Home Ups Online

10Kva home ups online

Place of Origin:

China

Brand Name:

G-Tech/OEM

Certification:

CCC;CE;Rohs;ISO

Model Number:

PT series

Contact Us
Request A Quote
Product Details
Product Name:
Single Phase Online UPS, 1kva To 10Kva Online High Frequency UPS, Home Ups Online
Power Factor:
1.0
Wave Form:
Pure Sine Wave
Application:
Computer, Telecommunications, Networking, Security, Monitoring
Capacity:
1-10KVA
Type:
One Phase On-line High Frequency
Protection:
Short Circuit,Overcurrent,Overvoltage
Warranty:
3 Years
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Carton
Delivery Time
15-25 days
Payment Terms
L/C, T/T, Western Union
Product Description
Single Phase Online UPS, 1kva To 10Kva Online High Frequency UPS, Home Ups Online
High Power factor 1.0 High Frequency Uninterruptible Power supply 1KVA-10KVA
Single Phase online UPS, 1kva to 10Kva Online High Frequency UPS, home ups online
This series of UPS applies CPU integrated control technology, which allows UPS to response promptly and accurately when power outage, high or low voltage, surge, transient or spike occurs so on. It possesses automatic startup function, automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kind of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are two alternatives.
  • Feature
  • * High output power factor 1.0 ( 6KVA /6KW or 10KVA/10KW output for option)
    * battery available: 16pcs/17pcs/18pcs/19pcs/20pcs for option
    * True double-conversion
    * Microprocessor control optimized reliability
    * Input power factor correction
    * Wide input voltage(110V-300V)
    * Converter mode available
    * Generator compatible
    * Smart SNMP works well with either USB or RS232
    * Charger capacity expansion to 1~12A (settable) for long-run models, built in battery default in 1A;



Production Introduction

This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds

of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.

Model # PT-6KS PT-6KL PT-10KS PT-10KL
Capacity 6KVA/6000W 10KVA/10000W

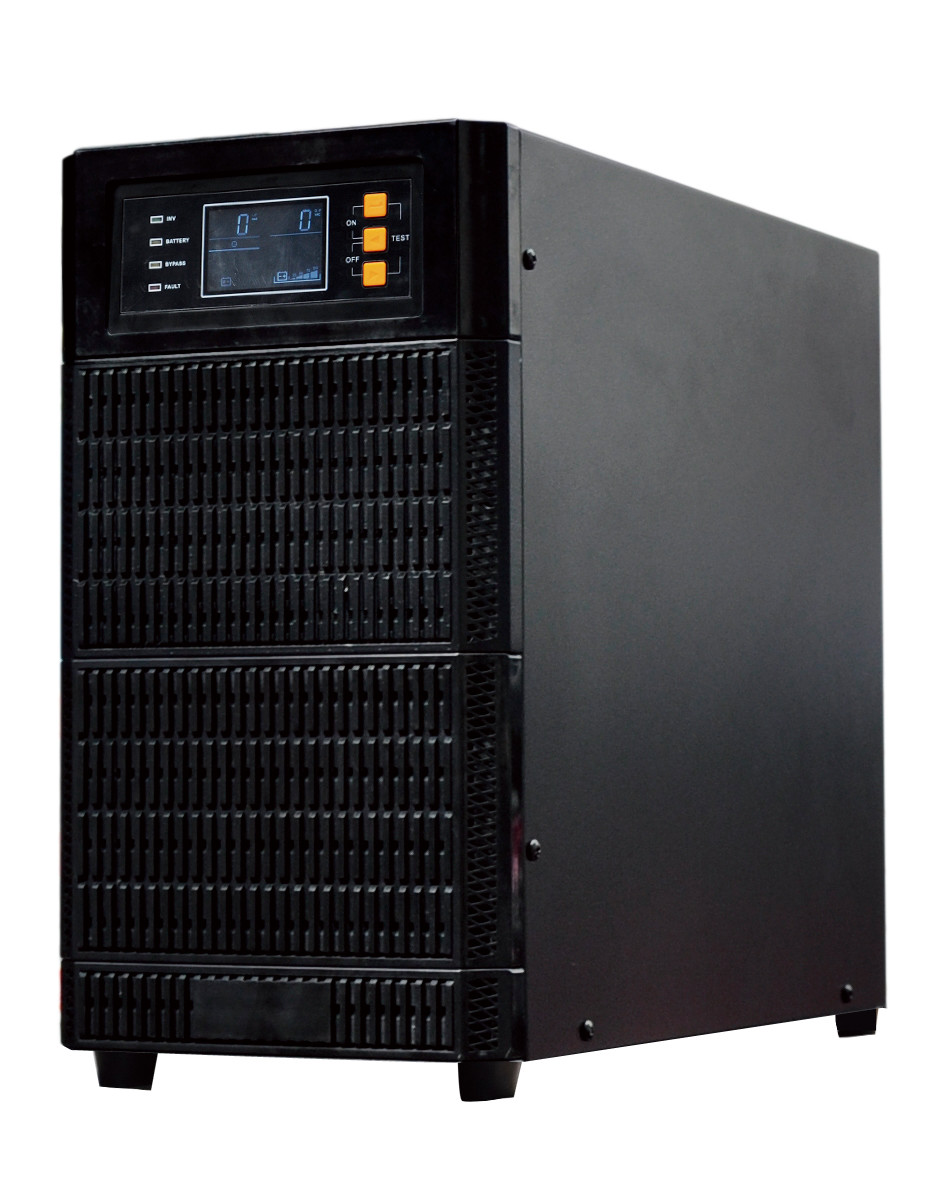

Front panel 6kva online ups

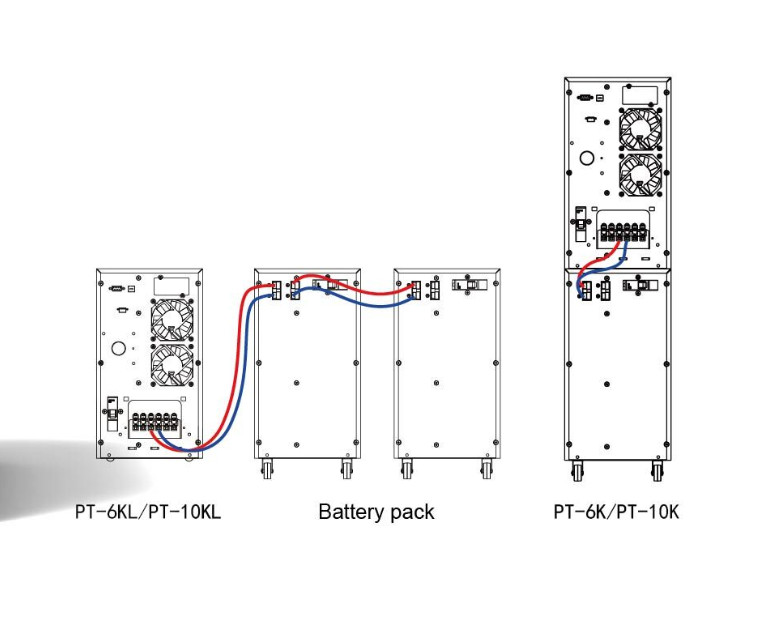

Rear panel computer ups buy online
Display LCD
INPUT
Input voltage range



110~300VAC,110~176VAC,280~300VAC(power limited)



Input frequency range



50/60Hz±6Hz,± 10Hz (setable)

OUTPUT
Output voltage range 208/220/230/240VAC
Output frequency AC mode: same as AC ,Battery mode:50/60Hz±1%
Wave form Pure Sinewave
Transfer time 0ms
BATTERY
QTY & capacity of battery 20pcs*12V7Ah ---------- 20pcs*12V7Ah -----------
Charging period 4~6 hours recover to 90% capacity
PROTECTION & FUNCTION
PROTECTION 1. Battery low voltage protection
2. Overload protection
3. Short circuit protection
MANAGEMENT

RS232 & USB &

EPO



Optional
PHYSICAL
Unit dimension (mm) 461*200*800 461*200*360 461*200*800 461*200*360
Master box dimension (mm) 605*300*989 585*300*520 605*300*989 585*300*520
Pcs in one master carton 1 1 1 1
Gross weight (1pc, kg) 61 14 61.5 14.8
Net weight (1pc, kg) 55 12.4 55.25 12.7

Single Phase 1kva 10Kva High Frequency Home Ups Online 2
