Place of Origin:
China
Brand Name:
G-Tech
Certification:
ISO, CE, ROHS
Model Number:
Tower UPS

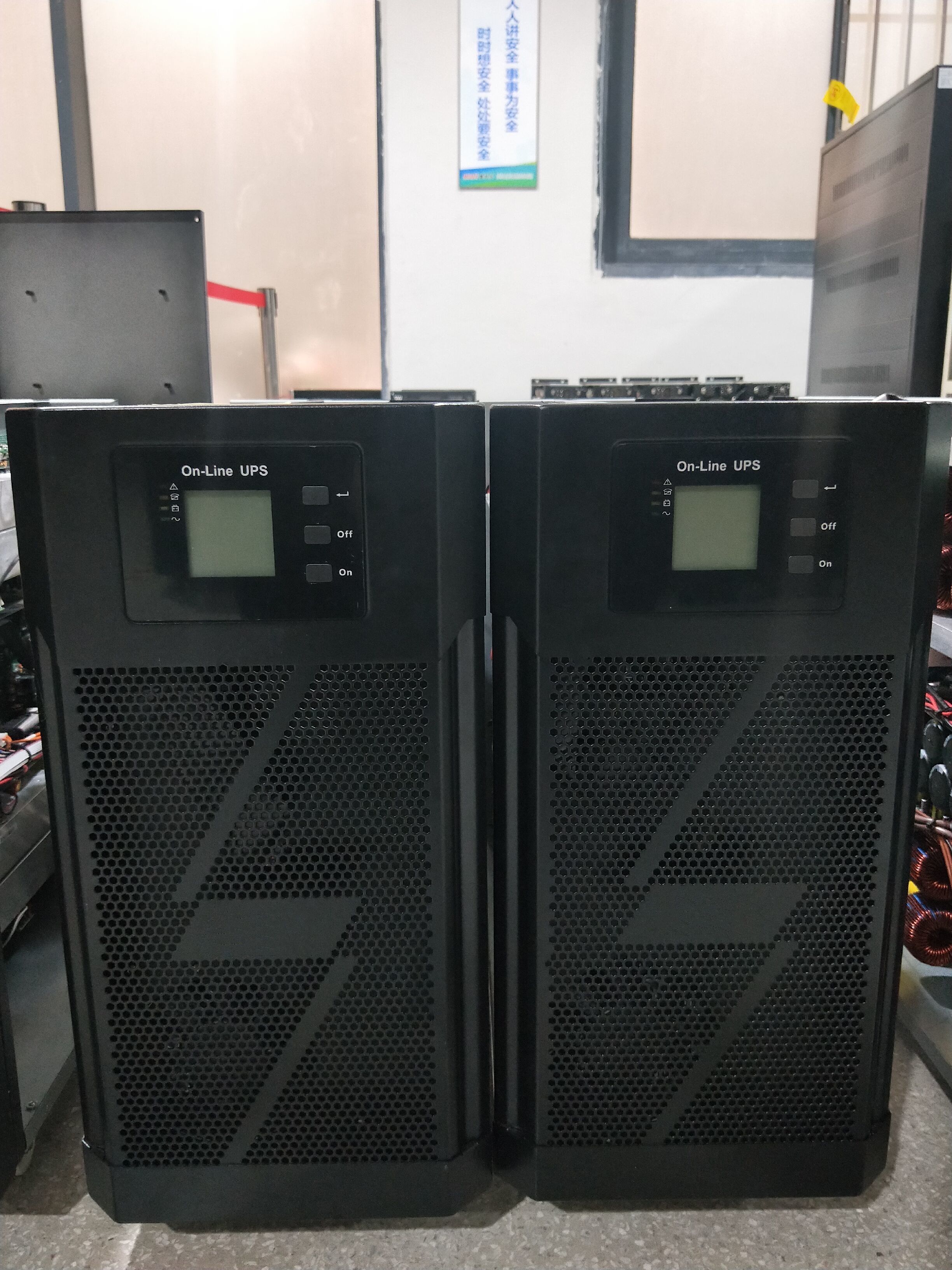

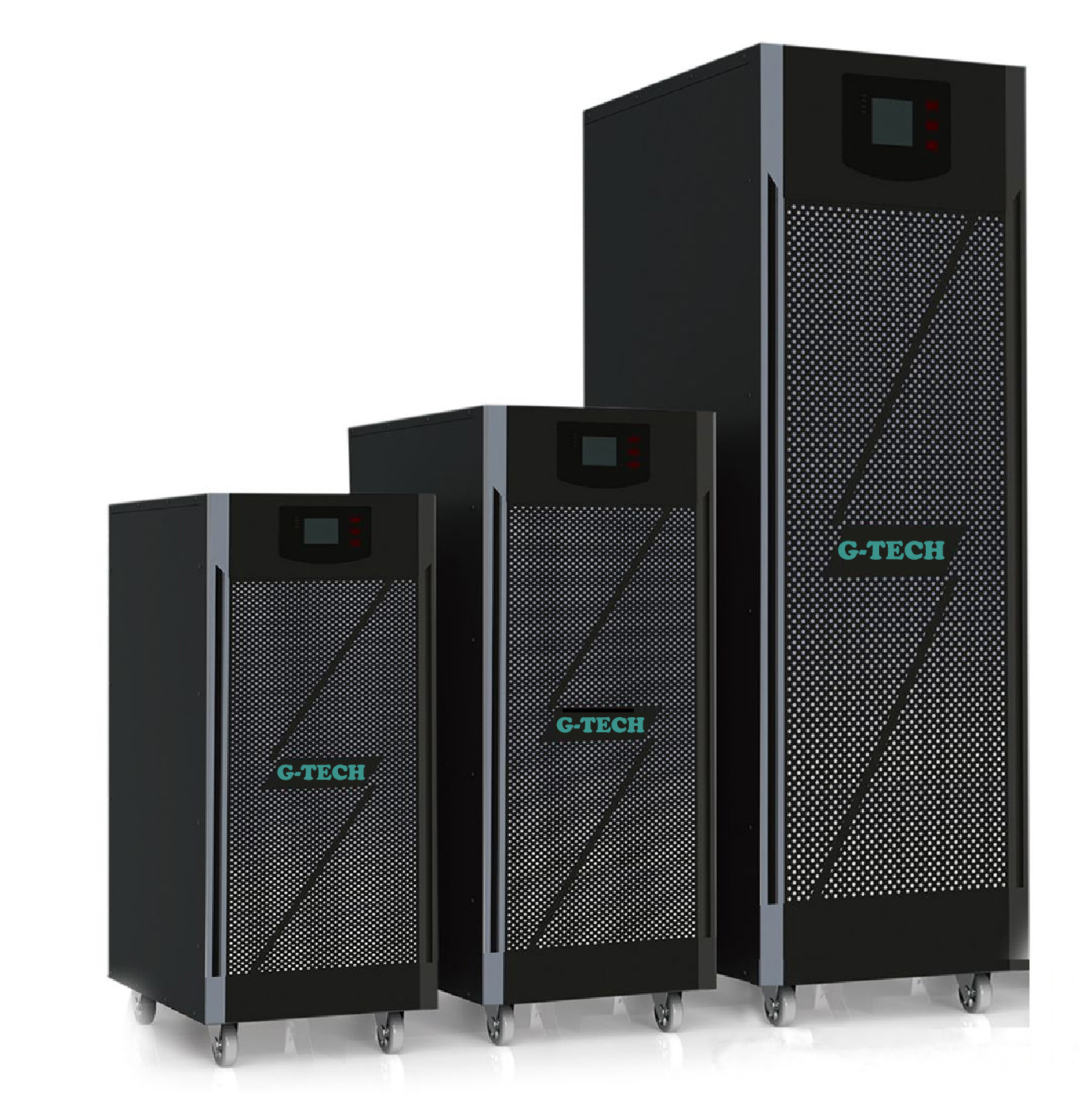

Production Introduction
This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds
of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.
| MODEL | PT33-20KS | PT33-30KS | PT33-40KS | PT33-60KS | PT33-80KS | ||||
| Rated power | 20KVA/20KW | 30KVA/30KW | 40KVA/36KW | 60KVA/60KW | 80KVA/80KW | ||||
| INPUT | |||||||||
| Input Mode | Three phases + N + G | ||||||||
| Rated Voltage | 380/400/415Vac | ||||||||
| Voltage Range | 208~478Vac | ||||||||
| Frequency | 45-55Hz at 50Hz/54-66Hz at 60Hz (Adaptive) | ||||||||
| Range Power Factor | ≥ 0.99 | ||||||||
| Harmonic Current Distortion (THDi) | ≤ 3%(100％ nonlinear load ) | ||||||||
| Bypass Frequency Range |
Upper limit of bypass protection voltage: 220V:﹢ 25%(﹢ 10%,﹢ 15%,﹢ 20% optional)； 230V:﹢ 20%(﹢ 10%,﹢ 15% optional)； 240V:﹢ 15%(﹢ 10% optional) |
||||||||
| Minimum bypass protection voltage: -45%( -20%,-30% optional) | |||||||||
| Bypass frequency protection range: ±10% | |||||||||
| OUTPUT | |||||||||
| Input Mode | Three phases + G or Single phase + N | ||||||||
| Rated Voltage | 380/400/415Vac or 220/230/240Vac | ||||||||
| Range Power Factor |
0.8 |
||||||||
| Regulation Accuracy |
±1% |
||||||||
|
Output Frequency |
AC mode | ±1%,±2%,±4%,±5%,±10% settable (50/60±0.2)Hz | |||||||
| Battery mode | (50/60±0.2%) Hz | ||||||||
| Load Peak Ratio | 3:1 | ||||||||
| Output Voltage Distortion | ≤ 2% with linear load | ||||||||
| ≤ 5% nonlinear load | |||||||||
| BATTERY | |||||||||
| Battery Voltage | DC±192V/±204/±216V/±228/±240V (±16/17/18/19/20 pcs ) optional | ||||||||
| Charge Current | 10A max | ||||||||
| OTHERS | |||||||||
| Transfer time | AC mode to bypass mode: 0ms(following); AC mode to battery mode: 0ms | ||||||||
| Efficiency | Normal mode≥ 94.5% | ||||||||
| Communication Interface |
USB,RS485, dry contact , parallel connection(optional), SNMP card(optional), relay card(optional) |
||||||||
| Standard | YD/T1095-2008 | ||||||||
| PROTECTION | |||||||||
| Overload |
Normal mode: load ≤ 110%,60min; ≤ 125%, 10 mins; ≤ 150%, 1min; ≥ 150% shutdown immediately
|
||||||||
| Over heat Protection | Normal mode: switch to bypass mode; Battery mode: turn off the output immediately | ||||||||
| Emergency Power Off(EPO) | Shutdown the output immediately | ||||||||
| ENVIRONMENT | |||||||||
| Operating Temperature |
0℃～ 40℃ |
||||||||
| Storage Temperature | -25℃～ 55℃ | ||||||||
| Relative Humidity | 0 ~ 95% no condensation | ||||||||
| Altitude | < 1500m,In case of exceeding 1500m, it shall be reduced according to GB/T 3859.2 | ||||||||
| PHYSCIAL | |||||||||
| Dimension W * D * H(mm) |
724X250X534 |
724X301X961 |
|||||||
| Net Weight(kg) | 45 | 46 | 48 | 80.5 | 82.5 | ||||
