Rechargeable F1 Terminal Sealed Lead Acid Battery For UPS Systems

Rechargeable F1 Terminal Sealed Lead Acid Battery For UPS Systems

F1 Terminal Sealed Lead Acid Battery

UPS Sealed Lead Acid Battery

Rechargeable Valve Lead Acid Battery

Place of Origin:

China

Brand Name:

G-Tech

Model Number:

GT Series

Contact Us
Request A Quote
Product Details
Certification:
CE, ISO, UL
Voltage:
6V
Product Name:
F1 Terminal 6 Volt Sealed Lead Acid Battery For UPS Systems, Rechargeable Valve Regulated Lead Acid Battery
Warranty:
1 Year
Application:
UPS,Solar System,Street Light,Telecommunication, Etc
Sealed Type:
Sealed
Color:
Optional
Maintenance Type:
Free
Payment & Shipping Terms
Minimum Order Quantity
500
Price
Negotiation
Delivery Time
7-15 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
500000 pcs per month
Product Description

12 volt sealed lead acid battery, High Capacity Lead Acid Battery for UPS Systems, solar energy

Applications:

UPS systems / Telecommunications equipment / Emergency lighting / Fire and burglar alarm systems / Access control devices / Electronic equipment require memory protecting / Solar powered systems



Features:

Structure: compact design, shorter internal connectors between cells, thus low internal resistance
Plate: Pasted flat type, with patent deep cycle formula of AM
Terminal: Two or more types terminals are convenient for selection
Vent system: Gas can be vented through flame arrester
Separator: Using improved AGM separator, make lower resistance higher assembling pressure to increase dep cycle life
Battery case: Made of high strength ABS and UL94-V0 is optional
Terminal sealing: Double sealing technics(mechanical+epoxy gule)

General SLA Battery Specification

Series Model Capacity Weight Terminal Size(L*W*H)
GT Series GT12-4 4 1.3 F1/F2 90*70*101(107)
GT Series GT12-4.5 4.5 1.4 F1/F2 90*70*101(107)
GT Series GT12-4.5E 4.5 1.35 F1/F2 90*70*101(107)
GT Series GT12-5 5 1.6 F1/F2 90*70*101(107)
GT Series GT12-5.6 5.6 1.8 F1/F2 151*65*93.5(100)
GT Series GT12-6.5 7 1.9 F1/F2 151*65*93.5(100)
GT Series GT12-7 7 2.04 F1/F2 151*65*93.5(100)
GT Series GT12-7E 7 2 F1/F2 151*65*93.5(100)
GT Series GT12-7.2 7.2 2.15 F1/F2 151*65*93.5(100)
GT Series GT12-8 8 2.35 F1/F2 151*65*93.5(100)
GT Series GT12-8E 8 2.26 F1/F2 151*65*93.5(100)
GT Series GT12-9 9 2.55 F1/F2 151*65*93.5(100)
GT Series GT12-10 10 3.2 F1/F2 151*98*95(101)
GT Series GT12-10E 10 3 F1/F2 151*98*95(101)
GT Series GT12-12 12 3.6 F1/F2 151*98*95(101)
GT Series GT12-12E 12 3.3 F1/F2 151*98*95(101)
GT Series GT12-17 18 4.75 F13(M5) 181*77*167(167)
GT Series GT12-18 18 5.2 T26(M5) 181*77*167(167)
GT Series GT12-18E 18 5 F13(M5) 181*77*167(167)
GT Series GT12-20 20 5.9 F13(M5) 181*77*167(167)
GT Series GT12-24 24 7.4 F13(M5) 166*175*125(125)
GT Series GT12-24P 23 7.4 T28(M5) 165*126*174(174)
GT Series GT12-26 26 8.1 F13(M5) 166*175*125(125)
GT Series GT12-26P 26 8.3 F11(M6) 165*126*174(174)
GT Series GT12-28 28 8.6 F13(M5) 166*175*125(125)
GT Series GT12-28P 28 8.8 F11(M6) 165*126*174(174)
GT Series GT12-33 33 10.2 F11(M6) 195*130*159(180)
GT Series GT12-33E 33 9.9 F11(M6) 195*130*159(180)
GT Series GT12-40 40 13 F11(M6) 198*166*171(171)
GT Series GT12-40E 40 12.4 F11(M6) 198*166*171(171)
GT Series GT12-45 45 13.5 F11(M6) 198*166*171(171)
GT Series GT12-55 55 18 F11(M6) 229*138*210(235)
GT Series GT12-55E 55 17.5 F11(M6) 229*138*210(235)
GT Series GT12-60 60 20.5 F11(M6) 260*169*210(235)
GT Series GT12-65 65 21 F11(M6) 350*167*180(183)
GT Series GT12-65E 65 19.5 F11(M6) 350*167*180(183)
GT Series GT12-70 70 22.5 F11(M6) 350*167*180(183)
GT Series GT12-70S 70 21.5 F11(M6) 260*169*210(235)
GT Series GT12-75 75 23.5 F11(M6) 260*169*210(235)
GT Series GT12-75E 75 23 F11(M6) 260*169*210(235)
GT Series GT12-80 80 24 F11(M6) 350*167*180(183)
GT Series GT12-80E 80 22.7 F11(M6) 350*167*180(183)
GT Series GT12-85 85 26 F12(M8) 306.5*168.5*210(235)
GT Series GT12-90 90 28.5 F12(M8) 306.5*168.5*210(235)
GT Series GT12-90E 90 28 F12(M8) 306.5*168.5*210(235)
GT Series GT12-100 100 30 F12(M8) 328*172*222(222)
GT Series GT12-100E 100 29 F12(M8) 328*172*222(222)
GT Series GT12-120 120 35 F12(M8) 407*177*225(225)
GT Series GT12-120E 120 34 F12(M8) 407*177*225(225)
GT Series GT12-115 115 32 F12(M8) 328*172*222(222)
GT Series GT12-134 134 41.5 F12(M8) 340*173*280(285)
GT Series GT12-145 145 44 F12(M8) 340*173*280(285)
GT Series GT12-150 150 44.5 F12(M8) 483*170*240(240)
GT Series GT12-150E 150 43.7 F12(M8) 483*170*240(240)
GT Series GT12-160 160 50 F12(M8) 530*209*214(219)
GT Series GT12-160E 160 49.5 F12(M8) 530*209*214(219)
GT Series GT12-180 180 53 F12(M8) 530*209*214(219)
GT Series GT12-180E 180 52 F12(M8) 530*209*214(219)
GT Series GT12-200 200 60 F10(M8) 522*240*219(240)
GT Series GT12-200E 200 59 F10(M8) 522*240*219(240)
GT Series GT12-225 225 65 F10(M8) 522*240*219(240)
GT Series GT12-225E 225 63.5 F10(M8) 522*240*219(240)
GT Series GT12-230 230 67 F12(M8) 521*269*203(208)
GT Series GT12-240 240 69 F10(M8) 522*240*219(240)
GT Series GT12-240E 240 67.5 F10(M8) 522*240*219(240)
GT Series GT12-260 260 74 F14(M8) 520*268*220(225)
GT Series GT12-260E 260 72.5 F14(M8) 520*268*220(225)
GT series is a general purpose battery with 5 years design life in
float service . It meets with IEC and JIS standards .With up-dated
AGM valve regulated technology and high purity raw materials, the
GT series battery has reliable standby service life. It is suitable for
UPS/EPS, medical equipment, emergency light and security
systems applications.

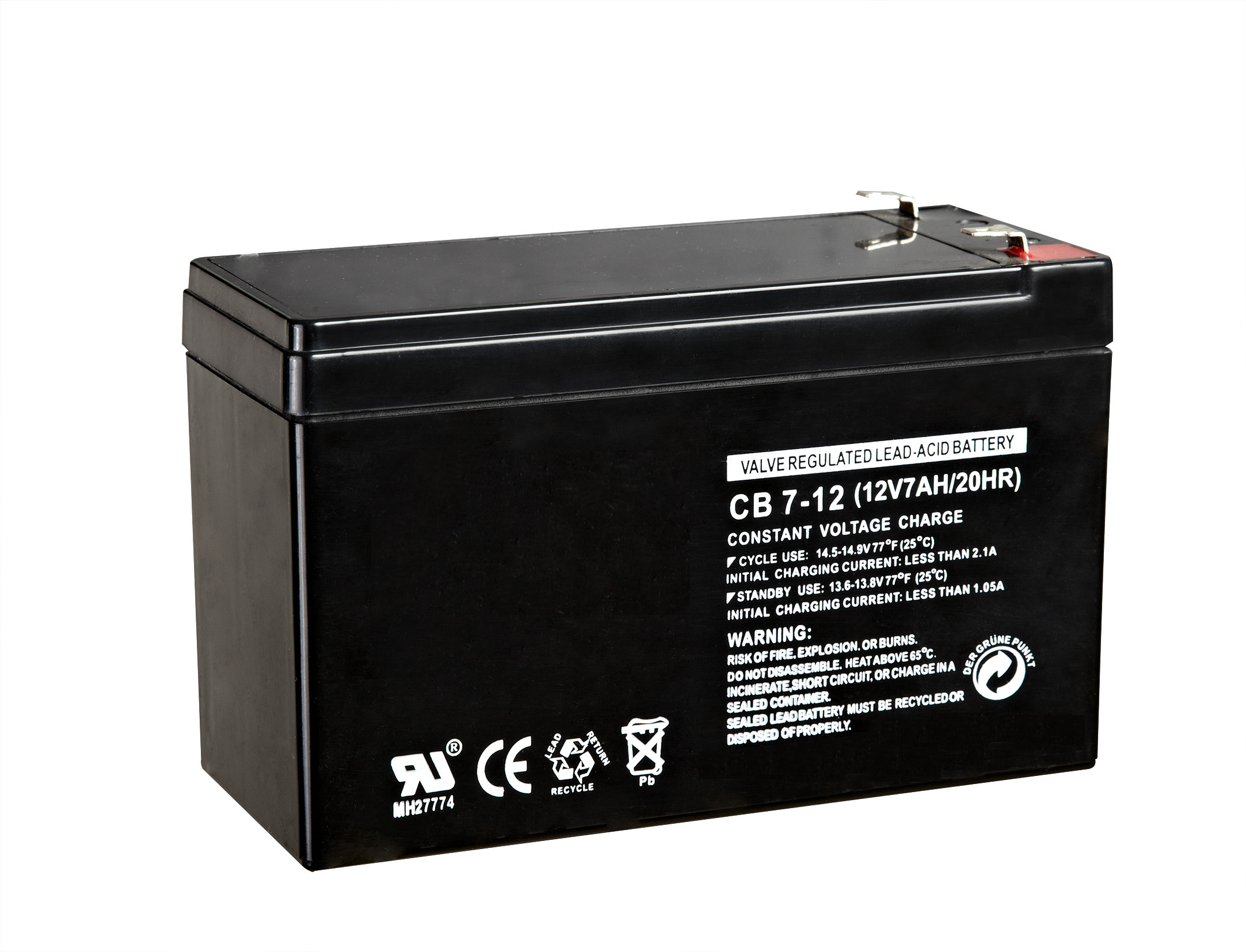

Rechargeable F1 Terminal Sealed Lead Acid Battery For UPS Systems 0

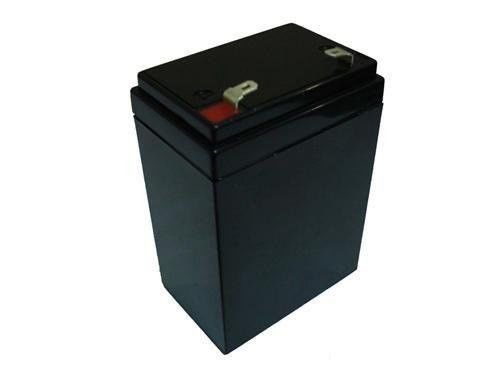

Rechargeable F1 Terminal Sealed Lead Acid Battery For UPS Systems 1
