3.2v 32650 48 Volt Lifepo4 Battery Pack 12V 24V For Electric Bike

3.2v 32650 48 Volt Lifepo4 Battery Pack 12V 24V For Electric Bike

32650 Lifepo4 Battery Pack

3.2v 32650 Lifepo4 Battery Pack

3.2v 32650 battery pack lifepo4

Place of Origin:

China

Brand Name:

G-Tech

Certification:

CE, ISO9001, UL, IEC

Model Number:

GTL Series LiFePO4 battery

Contact Us
Request A Quote
Product Details
Application:
EV, Telecom, Solar Energy,motorcycle
Warranty:
3 Years
Product Name:
3.2v 32650 Lifepo4 Battery Cell For 12V 24V 48V Electric Bike Solar, UPS
Battery Type:
Lifepo4 Battery
Cycle Life:
3000 Times
Nominal Capacity:
1ah To 200ah
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiation
Packaging Details
Carton packing
Delivery Time
7-15workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000000pcs
Product Description

3.2v 32650 48 Volt Lifepo4 Battery Pack 12V 24V For Electric Bike



3.2v 32650 lifepo4 battery cell for 12V 24V 48V Electric Bike Solar, UPS



Model GT-LFP200Ah-A GT-LF200Ah-B
Rated Capacity 200Ah 200Ah
Nominal Voltage 3.2V 3.2V
Internal Impedance ≤0.35mΩ ≤0.35mΩ
Standard Charge 0.25C 0.25C
Quick-arting Charge 1.0C 1.0C
Charge cut off voltage 3.55V 3.55V
Standard Discharge 0.5C 0.5C
Maximum continuous discharge 2.0C 2.0C
Instantaneneous Discharege 5C 5C
End of Dischage 2.5V 2.5V
Work temperature -20~65℃ -20~65℃
Cycle life(times) >3000CYCLES(0.5C) >3000CYCLES(0.5C)
Weight(kg) 5.7±0.1kg 6.7±0.1kg
Dimensions(mm) 142*57*489±2mm 290*66*238±2mm

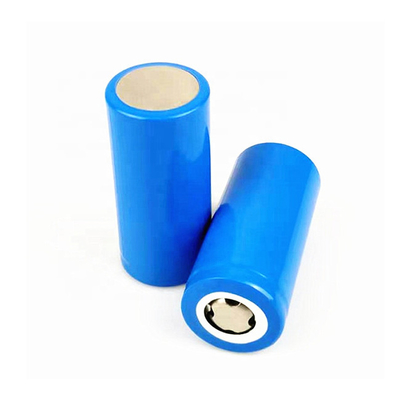

3.2v 32650 48 Volt Lifepo4 Battery Pack 12V 24V For Electric Bike 0

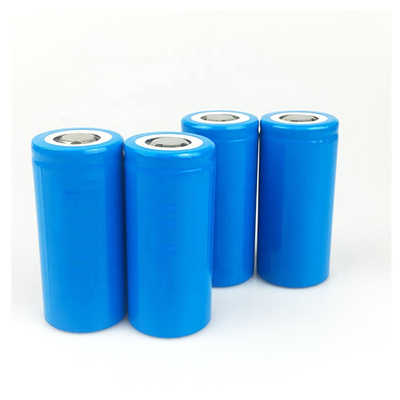

3.2v 32650 48 Volt Lifepo4 Battery Pack 12V 24V For Electric Bike 1

Safety Advantage

Air vent with double protection functions ensures safety

The World's first controllable air vent with double protection functions is a patented product. It exhausts and opens automatically in one-way mode at different pressure.



Good insulation and lightning resistance in the wild

Plastic shell has good insulations.Cells can be assembled into a DC-high voltage battery pack directly. Insulation ability is not affected by air humidity.Good anti-lightning performance without grounding.Not easy to generate static electricity and cause accidents due to friction generated by electric sparks.



Decompression design in special circumstances

Plasitic shell has low melting point(170℃).It melts and makes decompression automatically in the extreme conditions to ensure.









FAQ



1. When will you ship the products when paymnet is done?
Trial order is 3-7 work days,formal order 7-20 work days.



2. Is the sample available ?

Yes, but it is charged.



3. Can I get a lower price if I order large quantities?

Yes.



4. Are you a factory ?

Yes, we are the manufacturer of GBS LiFePO4 battery.





5. Why does it seem your price little higher than other factories?

We always supply High-Quality products & High-Stand service to our clients.
