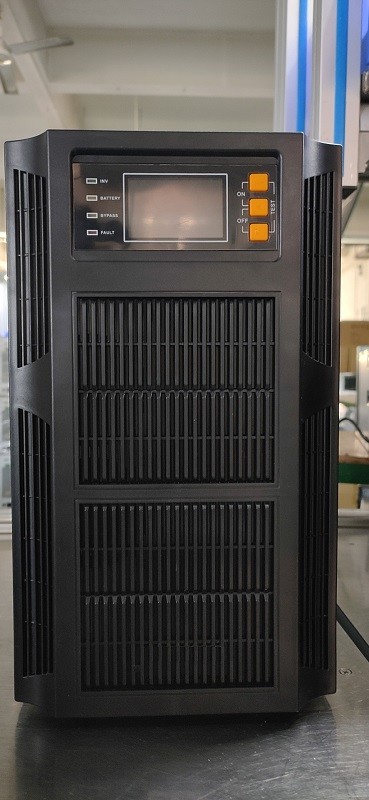

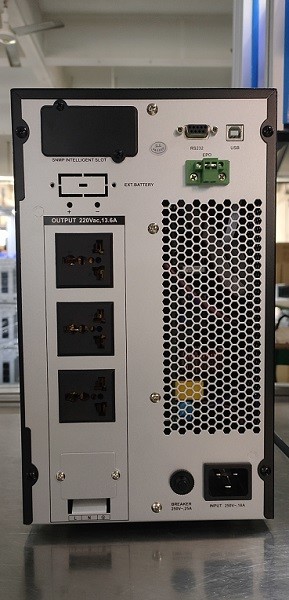

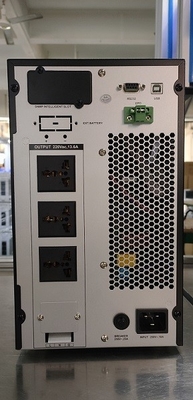

High Frequency Online Uninterruptible Power Supply 3KVA 3KW

High Frequency Online Uninterruptible Power Supply 3KVA 3KW

3KW Uninterruptible Power Supply

3KVA 3KW Uninterruptible Power Supply

3KVA 3KW ups power supply

Place of Origin:

China

Brand Name:

G-Tech

Certification:

ISO, CE

Model Number:

PT Series Online UPS

Contact Us
Request A Quote
Product Details
Product Name:
Uninterruptible Power Supply 3KVA High Frequency Online UPS
Wave Form:
Pure Sine Wave
Application:
Computer, Telecommunications, Networking, Security, Monitoring
Phase:
One Phase In, One Phase Out
Warranty:
3 Years
Capacity:
3kva Online UPS
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Carton
Delivery Time
15-25days
Payment Terms
L/C, T/T, Western Union
Product Description

High Frequency Online Uninterruptible Power Supply 3KVA 3KW



Uninterruptible Power Supply 3KVA High Frequency Online UPS



1-12A Charger current, adjustable by user



This series of UPS applies CPU integrated control technology, which allows UPS to response promptly and accurately when power outage, high or low voltage, surge, transient or spike occurs so on. It possesses automatic startup function, automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kind of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are two alternatives.



Production Introduction

This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds

of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.

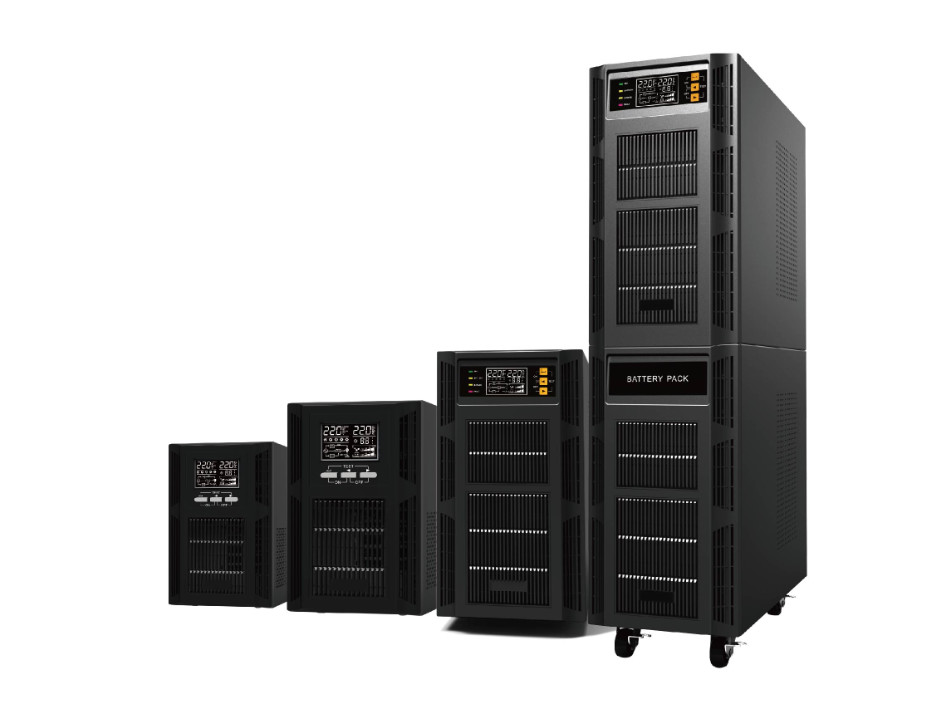

UPS Specification:



















Model #

PT-1KS

PT-1KL

PT-2KS

PT-2KL

PT-3KS

PT-3KL

Capacity

1KVA / 1KW

2KVA / 2KW

3KVA /3KW

Display

LCD

INPUT

Voltage range

Full load

85~140 VAC or 160~280 VAC

half load

55~150 VAC or 110~300 VAC

Frequency Range

40Hz~70Hz

Phase

Single phase with ground

Power factor

≥ 0.99 @ 220-230 VAC (input voltage)

OUTPUT

Output voltage range

100/110/115/120/127VAC or 200/208/220/230/240VAC

AC Voltage Regulation

± 1% (Batt. Mode)

Frequency Range

Line Mode: (Synchronized Range) , Batt. Mode: 50/60Hz±0.1%

Overload

Line Mode: 1min@105%~125%Load 30s@125~150% Load 0.5ms@>150%Load

Current Crest Ratio

3:1

Harmonic Distortion

≤2% THD (Linear load); ≤5% THD (non-linear load)

Transfer time

AC Mode to Batt. Mode: Zero

Inverter to Bypass: 4ms (Typical)

Wave form (Batt. Mode)

Pure Sine Wave

EFFICIENCY

AC Mode

Peak efficiency 93%

Peak efficiency 94%

Peak efficiency 94%

Full load efficiency 90%

Full load efficiency 91%

Full load efficiency 91%

BATTERY

Battery type ( standard model)

12 / 7AH

Capacity & quantity of battery

2pcs*12V7Ah

-------

6(4)pcs*12V7Ah

-------

6(8)*12V7Ah

-------

External battery norminal DC voltage

-------

36VDC

-------

72VDC

-------

96VDC

Recharge Time

4 hours recover to 90% capacity ( Typical) , depends on users' needs

Charging Current

1.0 (default) 1~12A(settable) External battery pack

1~12A(settable)

1.0 (default) 1~12A(settable) External battery pack

1~12A(settable)

1.0 (default) 1~12A(settable) External battery pack

1~12A(settable)

Features:

1.True double-conversion
2. Microprocessor control optimized reliability
3. Input power factor correction
4. Output power factor 1.0
5. Wide input voltage(110V~300)
6. Converter mode available
7. Generator compatible
8. Smart SNMP works well either USB or RS-232
