Place of Origin:
China
Brand Name:
G-Tech
Certification:
ISO, CE, ROHS
Model Number:
PT Series UPS

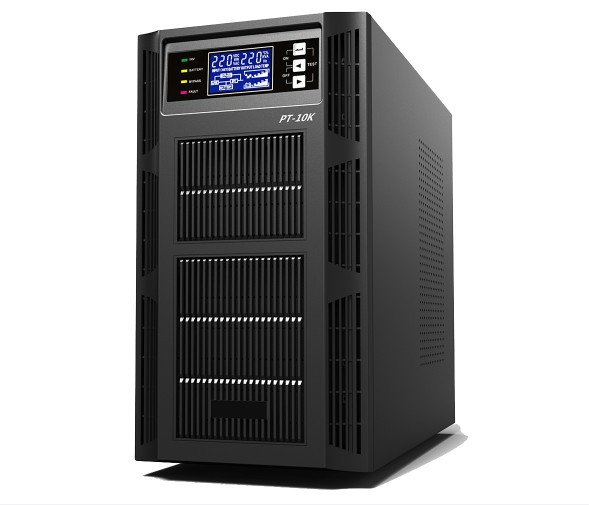

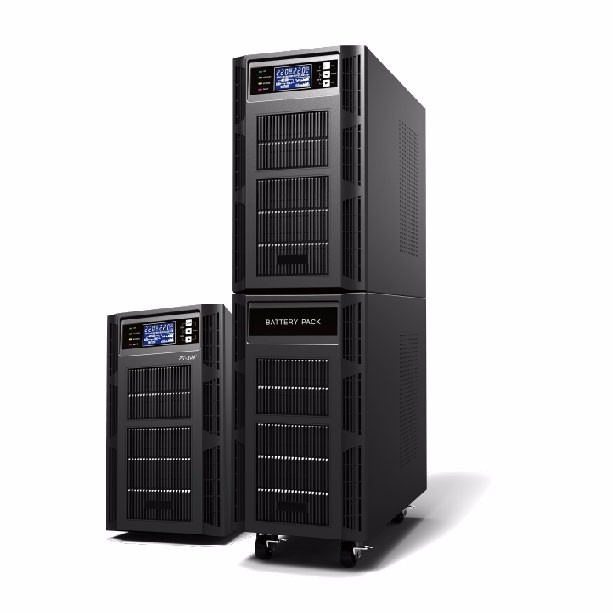

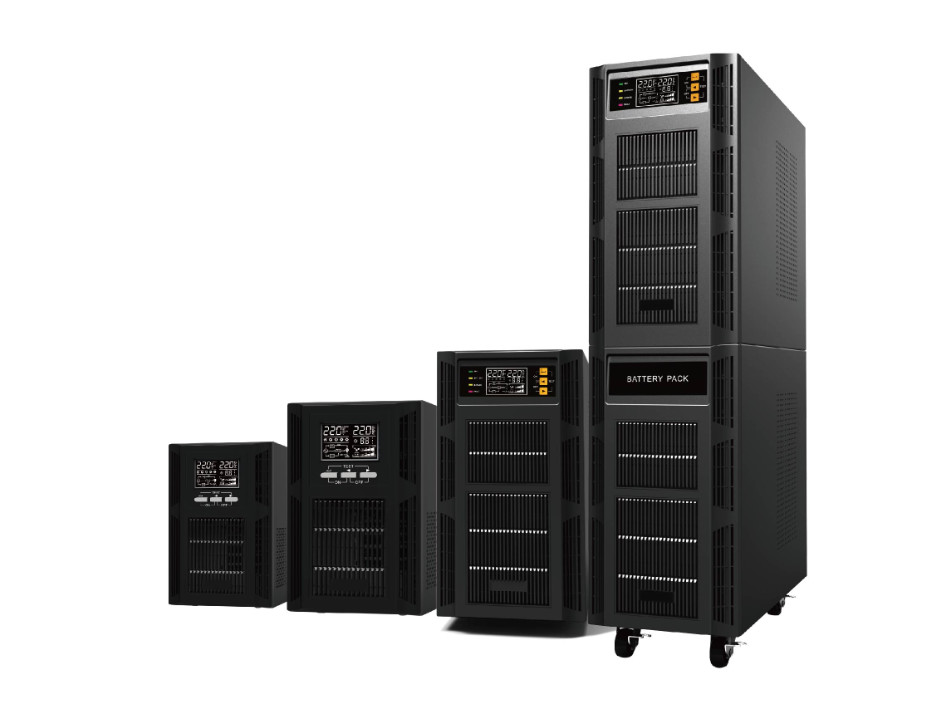

Uninterruptible Power Supply G Tech UPS High Frequency online UPS 1KVA to 10KVA
Tower type Power factor 1.0 High Frequency Uninterruptible Power supply 1KVA-10KVA
Production Introduction
This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds
of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.
G-Tech High Frequency Online UPS Specification
Uninterruptible Power Supply 6KVA/10KVA High Frequency Online UPS
PT series Onlie High Frequency UPS (Pure Sinewave output) |
|||||
Model # |
PT-6KS |
PT-6KL |
PT-10KS |
PT-10KL |
|
Capacity |
6KVA/6000W |
10KVA/10000W |
|||
Display |
LCD |
||||
INPUT |
|||||
Input voltage range |
110~300VAC,110~176VAC,280~300VAC(power limited) |
||||
Input frequency range |
50/60Hz±6Hz,± 10Hz (setable) |
||||
OUTPUT |
|||||
Output voltage range |
208/220/230/240VAC |
||||
Output frequency |
AC mode: same as AC ,Battery mode:50/60Hz±1% |
||||
Wave form |
Pure Sinewave |
||||
Transfer time |
0ms |
||||
BATTERY |
|||||
QTY & capacity of battery |
16/20pcs*12V7Ah lead acid battery |
||||
Charging period |
4~6 hours recover to 90% capacity |
||||
PROTECTION & FUNCTION |
|||||
PROTECTION |
1. Battery low voltage protection |
||||
MANAGEMENT |
|||||
RS232 & USB & EPO
|
Optional |
||||
PHYSICAL |
|||||
Unit dimension (mm) |
461*200*800 |
461*200*360 |
461*200*800 |
461*200*360 |
|
Master box dimension (mm) |
605*300*989 |
585*300*520 |
605*300*989 |
585*300*520 |
|
Pcs in one master carton |
1 |
1 |
1 |
1 |
|
Gross weight (1pc, kg) |
61 |
14 |
61.5 |
14.8 |
|
Net weight (1pc, kg) |
55 |
12.4 |
55.25 |
12.7 |
Company Introduction
G-Tech Power Co., Ltd. was established in 2002, located at Foshan, Guangdong province. We are a professional manufacturer of high quality UPS (Uninterruptible Power Systems) in China. We specialize in developing, manufacturing and operating the most reliable, manageable and the safest UPS, inverter and AVR (voltage regulator) products.
The factory covers a working area of nearly 20,000 square meters, has more than 500 professional staff (including 30 R&D personnel) and 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.
OEM services are provided for customers in many areas, such as South America, Europe, Russia, India, Africa and some other countries and regions. We are always qualifying ourselves in order to meet the requirements of customers, and we gain more repeat orders and admiration from them.
After over 20 years of efforts, we have been extended to more and more consumers. Our products are widely used in finance, securities, energy, telecommunications, transportation, communications, traffic, industrial enterprises, data center and home usage by personal purpose.
We warmly welcome friends from all over the world to explore and negotiate with us, to build a mutual benefit and win-win friendly cooperate relationship!
