3KVA 10KVA High Frequency Online Ups Power Supply Pure Sine Wave

3KVA 10KVA High Frequency Online Ups Power Supply Pure Sine Wave

3KVA high frequency online ups

10KVA high frequency online ups

G-Tech high frequency ups

Place of Origin:

China

Brand Name:

G-Tech

Certification:

ISO, CE, ROHS

Model Number:

Tower UPS

Contact Us
Request A Quote
Product Details
Power Factor:
Power Factor 1.0
Wave Form:
Pure Sine Wave
Application:
Computer, Telecommunications, Networking, Security, Monitoring
Phase:
Single Phase Input Single Phase Output
OEM Service:
Support, Free Of Charge
Name:
High Frequency Online Ups
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Carton, pallets
Delivery Time
30 days
Payment Terms
L/C, T/T, Western Union
Product Description

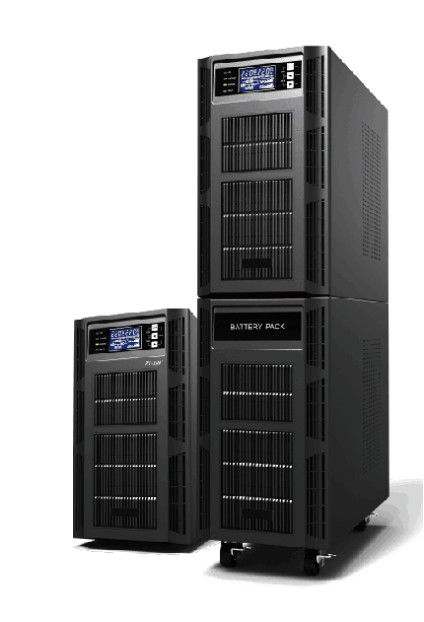

3KVA 10KVA High Frequency Online Ups Power Supply Pure Sine Wave


Production Introduction

This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds

of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.



Model # PT-1KS PT-1KL PT-2KS PT-2KL PT-3KS PT-3KL
Capacity 1KVA / 1KW 2KVA / 2KW 3KVA /3KW
Display LCD
INPUT
Voltage range Full load 85~140 VAC or 160~280 VAC
half load 55~150 VAC or 110~300 VAC
Frequency Range 40Hz~70Hz
Phase Single phase with ground
Power factor ≥ 0.99 @ 220-230 VAC (input voltage)
OUTPUT
Output voltage range 100/110/115/120/127VAC or 200/208/220/230/240VAC
AC Voltage Regulation ± 1% (Batt. Mode)
Frequency Range Line Mode: (Synchronized Range) , Batt. Mode: 50/60Hz±0.1%
Overload Line Mode: 1min@105%~125%Load 30s@125~150% Load 0.5ms@>150%Load
Current Crest Ratio 3:1
Harmonic Distortion ≤2% THD (Linear load); ≤5% THD (non-linear load)
Transfer time AC Mode to Batt. Mode: Zero
Inverter to Bypass: 4ms (Typical)
Wave form (Batt. Mode) Pure Sine Wave
EFFICIENCY
AC Mode Peak efficiency 93% Peak efficiency 94% Peak efficiency 94%
Full load efficiency 90% Full load efficiency 91% Full load efficiency 91%
BATTERY
Battery type ( standard model) 12 / 7AH
Capacity & quantity of battery 2pcs*12V7Ah ------- 6(4)pcs*12V7Ah ------- 6(8)*12V7Ah -------
External battery norminal DC voltage ------- 36VDC ------- 72VDC ------- 96VDC
Recharge Time 4 hours recover to 90% capacity ( Typical) , depends on users' needs
Charging Current 1.0 (default) 1~12A(settable) External battery pack 1~12A(settable) 1.0 (default) 1~12A(settable) External battery pack 1~12A(settable) 1.0 (default) 1~12A(settable) External battery pack 1~12A(settable)





Advantages of G Tech UPS

  • Wide AC input range avoids frequent switching to battery-powered mode so as to prolong battery service life and reduce replacement cost;
  • Supplying power for both AC and DC loads, convenient to use;
  • Portable design, small size (1U), light weight;
  • Efficient and energy-saving: the efficiency can be over 90% in the battery state;
  • Provided with battery under-voltage & over-voltage protection, output over-voltage protection, output under-voltage alarm, output short circuit and over-temperature protection functions;
  • Unattended operation function: if the mains power supply fails for a long time and the automatic protection of system is then activated due to battery under-voltage, after the mains power supply resumes, it will automatically start up and start to charge the battery up, effectively protecting the battery and extending its life;









3KVA 10KVA High Frequency Online Ups Power Supply Pure Sine Wave 0
