Place of Origin:
China
Brand Name:
G-Tech
Certification:
CE ROHS
Model Number:
LFP

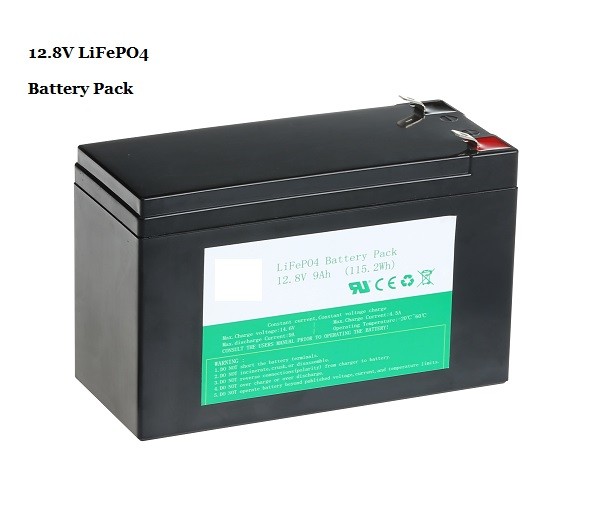

UPS Solar 12V 9ah Lifepo4 Rechargeable Battery For Energy Storage
Features
◆ By utilizing lithium iron phosphate cell technology, this product boasts superior safety, can withstand thousands of cycles at 100% depth of discharge under normal conditions.
◆ Equipped with built-in automatic protection for overcharging, over-discharging, over-current, and over-temperature situations.
◆ Requires no maintenance.
◆ Features internal cell balancing.
◆ Significantly lighter in weight, weighing only 40% to 50% of a comparable lead-acid battery.
◆ Can serve as a replacement for lead-acid batteries.
◆ Operates within a wider temperature range of -20℃ to 60℃.
◆ Supports series application expansion (up to 25.6V) or can be used in pairs in parallel.
| Model |
LFP12.8V6Ah
|
| Rated Capacity | 6Ah |
| Nominal Voltage | 12.8V |
|
Charging Current
|
2A |
| Standard Charge | 0.2C |
| Quick-arting Charge | 1.0C |
|
Max.Charging Current
|
5A |
| Standard Discharge Current | 2A |
| Maximum continuous discharge | 10A |
| Instantaneneous Discharege | 5C |
| End of Dischage | 10V |
| Work temperature | -20~60℃ |
| Cycle life(times) | ＞2000CYCLES(0.5C) |
| Weight(kg) | 0.8 kg |
| Dimensions(mm) |
90*70*101 ±1mm
|
Application
◆ UPS
◆ Solar & Wind Power System
◆ Golf Cart
◆Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
