220VAC High Frequency Online UPS Double Conversion Tower Mount Type

220VAC High Frequency Online UPS Double Conversion Tower Mount Type

220VAC High Frequency Online UPS

100VAC High Frequency Online UPS

220VAC Online High Frequency UPS

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Mount Way:
Power Type
Wave Form:
Pure Sine Wave
True Double-Conversion Onine UPS
RS232,Interlling Slot Selectable
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Delivery Time
25 days
Payment Terms
L/C, T/T
Product Description

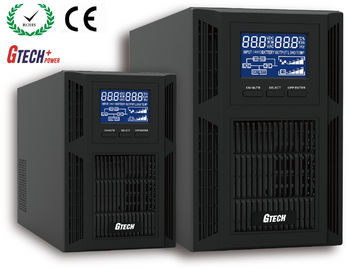

220VAC High Frequency Online UPS Double Conversion Tower Mount Type


True Double-Conversion Onine UPS Tower Mount Type High Frequency Online UPS


  • Feature

This is an online UPS with true double-conversion technology, ensuring high reliability. The microprocessor control system optimizes its performance. Its output power factor is 0.9, and it has a wide input voltage range, making it compatible with generators. The charger capacity can be expanded up to 6A for long-run models. The smart communication program works well with both USB and RS232 interfaces. The UPS operates at a high frequency while in online mode.


Production Introduction

This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds

of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.


  • Model PT-1KS PT-2KS PT-3KS PT-6KS
    Capacity 1000VA/900W 2000VA/1800W 3000VA/2700W 6000VA/5400W


    Frequency Range

    Transfer:160VAC 5%-300VAC 5%
    46-54Hz same as AC(AC mode)
    No-load: 110VAC 5%-300VAC 5%
    Phase Single phase with ground Single phase dual wires+Earth wire
    Voltage 220VAC±2%VAC
    Frequency Range 47-53Hz or 57-63Hz(Synchronized range)


    50-60Hz Automatic sensing(AC Mode)

    50Hz±0.25Hz or60Hz±0.3Hz(Batt.mode)
    Currrent crest factor                      3:1
    Wave Form Pure Sine Wave
    Capacity of battery 12V/7-9AH 12V/7.5AH
    QTY 2-3PCS 6-8PCS 6-8PCS 16PCS
    Transfer time 0ms
    Dimension(mm) 350*145*230 410*190*325 500*248*616
    Net weight(kg) 8.9/11.1 23.25/10.07 23.57/10.12 57
    Interface RS232,Interlling Slot Selectable


  • Founded in early 2005, as a factory of UPS/Inverter/VRLA Battery, G-tech power is satisfied with his partner with a reliable service and help them boost their business over 14 years.
  • Currently G-Tech power becomes the golden supplier of many well know compains all over the world, and get a very high reputation in over 200 countries accross the world.
    Now, He is looking forward to exploring and discovering more opportunities with customers and moving on the next 30 years. Expect you can join us and be the parters of us, grow up together also get mutul  benifits in the near future.
