Place of Origin:
China
Brand Name:
OEM
Certification:
CE ROHS
Model Number:
LiFePO4

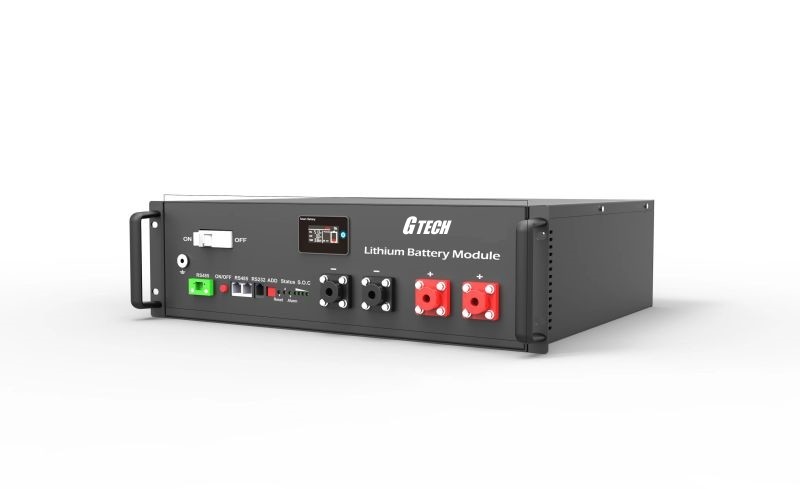

Residential Solar LiFePO4 Battery pack 48V 100AH
Lithium Battery Pack 100AH 200AH Manufacturer
Description:
G-tech LiFePO4 battery is a high-tech product developed for the requirements of new backup power supply and household renewable energy storage. Built-in intelligent BMS to protect the battery pack at any time and prolong its service life, modular design enables parallel installation for larger power back up, all manufactured with A grade cells.
Main Features:
1. Cells cycle times 6000 cycles(+25%C 0.2C 80% DOD)
2. Long lifespan: 5 years warranty, 10 years life design
3. 4U rack-mount chassis design is easy for parallel expansion and maintenance
4. Smart BMS system to optimize the performance
5. Communication: RS485/SNMP/Wifi/Bluetooth, Compatible with different brand of solar inverter and chargers
6. All around protection: such as SOC/SOH/ Anti-theft function etc
7. High discharge rate currents, suitable for on-grid or off-grid solar system and other loads
8. Maximum of 16 battery packs can be connected in parallel
9. With front display to know effectively the status of the batteries
10.Communicate with mainstream inverter: Growatt/Voltronic/GOODWE/Pylontech/Kstar/MUST etc.
| MODEL # | LFP 24-100 | LFP 48-50 | LFP 48-100 |
| SPECIFICATION | |||
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 |
| Battery Model | 25.6V100AH | 51.2V50AH | 51.2V100AH |
| Nominal Capacity(25℃,0.2C)WH | 2560Wh | 2560Wh | 5120Wh |
| Adjustable working voltage(Vdc) | 22.4～29.2V | 44.8～58.4V | 44.8～58.4V |
| Folat Charge Voltage(Vdc) | 28V | 56V | 56V |
| Max.Continuous discharge current(A) | 100 | 100 | 100 |
| Max.pulse discharge current(A) | 150A 1Sec. | 100A 1Sec. | 150A 1Sec. |
| Max.Continuous charge current(A) | 100 | 50 | 100 |
| Cycle life(+25℃ 0.2C 80% DOD) | ＞5000 Cycles | ＞5000 Cycles | ＞5000 Cycles |
| Cell Equalizer Current(A | 0.1～5A Max.(optional) | 0.1～5A Max.(optional) | 0.1～5A Max.(optional) |
| Terminal | M6 | ||
| Storage duration | 6 months at 25℃ | ||
| Safety standard | IEC62619,UN38.3,MSDS,CE | ||
| Communication function | RS484/UART/SNMP/Wifi/Bluetooth | ||
| PROTECTION | |||
| Protection | Overcharge protectionOverdischarge protectionOvercurrent protection Shortcircuit protectionOvertemperature protection | ||
| AMBIENT | |||
| Noise(dB) | ＜40dB(1 meter) | ||
| Working temperature | -20℃～+60℃ | ||
| Humidity | 0～95%(no condensation) | ||
| Altitude(m) | <3000 | ||
| DIMENSION | |||

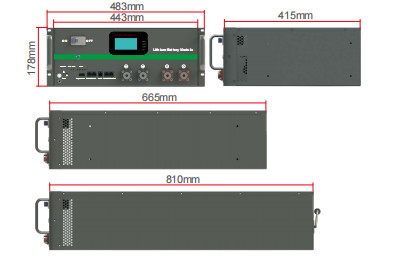

| L*W*H( size)mm | L405*W483*H178mm | L655*W483*H178mm | |
| L*W*H(package size)mm | L440*W518*H213mm | L690*W518*H213mm | |
| Net Weight(Kg): | Approx.35kg | Approx.72kg | |
| Gross Weight(Kg): | Approx.39kg | Approx.78kg |
|
FAQ
Q1: Are you trading company or manufacturer ?
A: We G-Tech Energy company are factory which has over 21+ years experience in Guang Dong,china.
Q2: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Customized is available.
Q3: How to proceed an order?
A: 1. Let us know your requirements or application. 2. We quote according to your requirements or our suggestions. 3. Client confirms the samples and places deposit for formal order. 4. We arrange the production.
Q4: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we’ll regard your inquiry priority
We provide one-stop battery power solution, including cell selection, battery pack design, PCM/BMS design, battery pack assembly, OEM Packing and after sales service.
