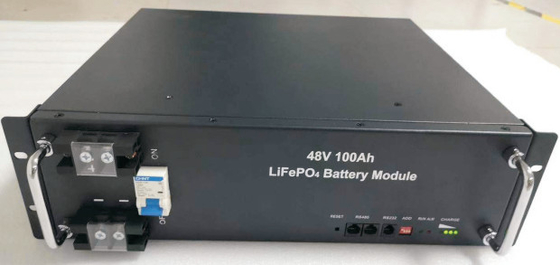

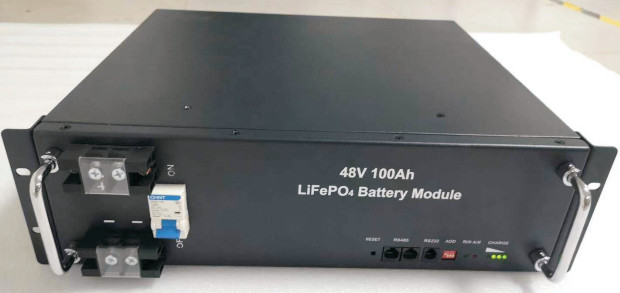

48V 100AH (5kwh) Lifepo4 Battery Pack

48V 100AH (5kwh) Lifepo4 Battery Pack

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
Carton packing
Delivery Time
15 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
Product Description
Detailed Product Description
Color: Optional Warranty: 3 Years
Battery Type: 48V Lifepo4 Battery Pack Cycle Life:66 6000 Times
Model Number: LFP48-100 Product Name: 48V 100AH (5kwh) Lifepo4 Battery Pack


50AH 100AH Lithium LiFePO4 Rack Mount Battery Wholesale

48V 100AH Lifepo4 Battery Pack, lifepo4 battery pack suppliers


Battery Description:

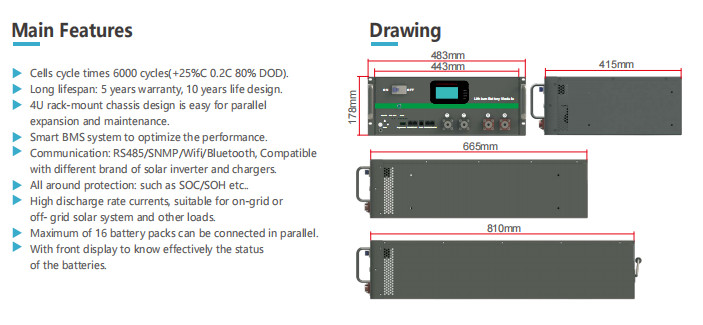

Smart LFP series LiFePO4 battery is a high-tech product developed for the requirements of new backup power supply and household renewable energy storage. Built-in intelligent BMS to protect the battery pack at any time and prolong its service life, modular design enables parallel installation for larger power back up.


1. Long lifespan time with 6000 cycles and 3 years warranty, 10 years life design
2. 4U rack-mount chassis design is easy for parallel expansion and maintenance
3. Smart BMS system to optimize the performance
4. Communication: RS485/SNMP/Wifi/Bluetooth, Compatible with different brand of solar inverter and chargers
5. All around protection: such as SOC/SOH/ Anti-theft function etc
6. High discharge rate currents, suitable for on-grid or off-grid solar system and other loads
7. Maximum of 16 battery packs can be connected in parallel
8. With front display to know effectively the status of the batteries


MODEL # LFP 24-100 LFP 48-50 LFP 48-100
Battery Type LiFePO4 LiFePO4 LiFePO4
Battery Model 25.6V100AH 51.2V50AH 51.2V100AH
Nominal Capacity(25℃,0.2C)WH 2560Wh 2560Wh 5120Wh
Adjustable working voltage(Vdc) 22.4~29.2V 44.8~58.4V 44.8~58.4V
Folat Charge Voltage(Vdc) 28V 56V 56V
Max.Continuous discharge current(A) 100 100 100
Max.pulse discharge current(A) 150A 1Sec. 100A 1Sec. 150A 1Sec.
Max.Continuous charge current(A) 100 50 100
Cycle life(+25℃ 0.2C 80% DOD) >5000 Cycles >5000 Cycles >5000 Cycles
Cell Equalizer Current(A 0.1~5A Max.(optional) 0.1~5A Max.(optional) 0.1~5A Max.(optional)
Terminal M6
Storage duration 6 months at 25℃
Safety standard IEC62619,UN38.3,MSDS,CE
Communication function RS484/UART/SNMP/Wifi/Bluetooth
Protection Overcharge protectionOverdischarge protectionOvercurrent protection Shortcircuit protectionOvertemperature protection
Noise(dB) <40dB(1 meter)
Working temperature -20℃~+60℃
Humidity 0~95%(no condensation)
Altitude(m) <3000

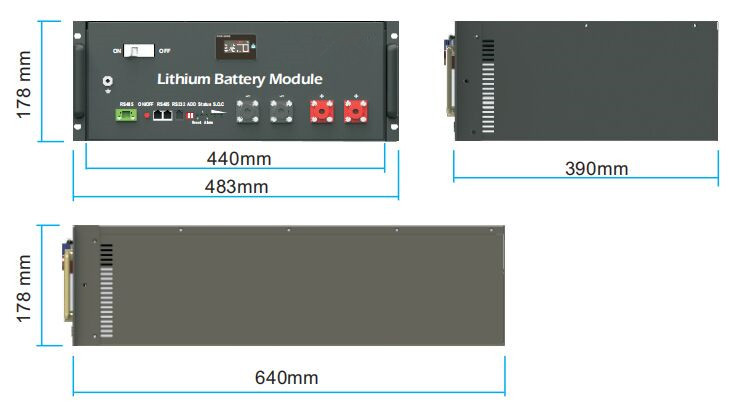

L*W*H( size)mm L405*W483*H178mm L655*W483*H178mm
L*W*H(package size)mm L440*W518*H213mm L690*W518*H213mm
Net Weight(Kg): Approx.35kg Approx.72kg
Gross Weight(Kg): Approx.39kg Approx.78kg
