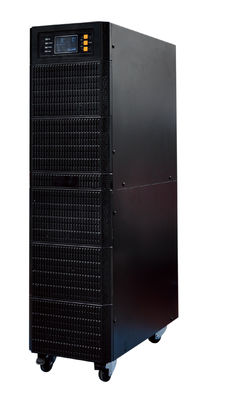

High Frequency 6kVA-20kVA Online Uninterrupted Power Supply with 220V Input Overload/Short Circuit/Over Temperature/Batt

High Frequency 6kVA-20kVA Online Uninterrupted Power Supply with 220V Input Overload/Short Circuit/Over Temperature/Batt

Place of Origin:

China

Brand Name:

G-Tech

Certification:

CE ROHS

Model Number:

PT series

Contact Us
Request A Quote
Product Details
Product Name:
High Frequency Online UPS
Protection:
Overload/Short Circuit/Over Temperature/Battery Low Voltage
Output Power Factor:
0.9
Display:
LCD/LED
Efficiency:
≥95%
Transfer Time:
0ms
Frequency:
50/60Hz
Output Voltage:
220V
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiation
Packaging Details
Carton packing
Delivery Time
7-25workdays
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000000pcs
Product Description

Product Description:

High Frequency Online Uninterruptible Power Supply (UPS), also known as a High Frequency Online Battery Backup System, is designed to provide reliable power protection and ensure uninterrupted power supply for critical equipment. It features high efficiency of over 95%, an input voltage of 220V, a frequency of 50/60Hz, and a power capacity ranging from 6kVA to 20kVA. It also offers powerful protection functions such as overload, short circuit, over temperature, and battery low voltage. Thus, it is an ideal choice for critical applications that require a reliable and uninterrupted power supply.


Features:

  • Product Name:High Frequency Online Uninterrupted Power Supply (UPS)
  • Display:LCD / LED
  • Input Voltage:220V
  • Transfer Time:0ms
  • Output Power Factor:0.9
  • High Frequency Online Power Security:Provides high frequency power protection and security
  • High Frequency Online Secure Power:Ensures uninterrupted power supply and secure operation

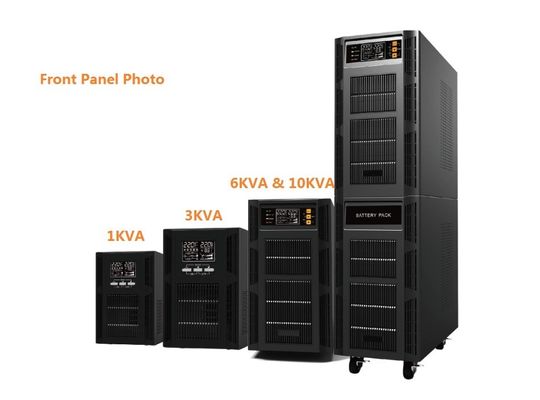

    PT series Onlie High Frequency UPS (Pure Sinewave output)
    Model # PT-6KS PT-6KL PT-10KS PT-10KL
    Capacity 6KVA/6000W 10KVA/10000W
    Display LCD
    INPUT
    Input voltage range 110~300VAC,110~176VAC,280~300VAC(power limited)
    Input frequency range 50/60Hz±6Hz,± 10Hz (setable)
    OUTPUT
    Output voltage range 208/220/230/240VAC
    Output frequency AC mode: same as AC ,Battery mode:50/60Hz±1%
    Wave form Pure Sinewave
    Transfer time 0ms
    BATTERY
    QTY & capacity of battery 16/20pcs*12V7Ah lead acid battery
    Charging period 4~6 hours recover to 90% capacity
    PROTECTION & FUNCTION
    PROTECTION 1. Battery low voltage protection
    2. Overload protection
    3. Short circuit protection
    MANAGEMENT

    RS232 & USB &

    EPO



    Optional
    PHYSICAL
    Unit dimension (mm) 461*200*800 461*200*360 461*200*800 461*200*360
    Master box dimension (mm) 605*300*989 585*300*520 605*300*989 585*300*520
    Pcs in one master carton 1 1 1 1
    Gross weight (1pc, kg) 61 14 61.5 14.8
    Net weight (1pc, kg) 55 12.4 55.25

    12.7




Applications:

G-Tech's PT Series High Frequency Online Battery Backup is designed to provide reliable, uninterrupted power to critical electrical systems. With a high frequency online design, this emergency power system is perfect for mission-critical applications that require high availability and minimal downtime. This uninterruptible power supply has a wide range of output voltage options, from 220V to 480V, and a frequency of 50/60Hz. It also provides comprehensive system protection with overload, short circuit, over temperature, and battery low-voltage protection. The LCD/LED display provides detailed system information, and the high efficiency of ≥95% ensures optimal power delivery. Its high frequency online design makes it perfect for applications that require continuous power backup without interruption. With G-Tech's PT Series High Frequency Online Battery Backup, you can rest assured that your critical systems will remain powered and protected in any situation.



Support and Services:

High Frequency Online UPS Technical Support and Services include:

  • 24/7 availability of technical support and services
  • Troubleshooting guides and online support
  • Updates and patches for the product
  • Onsite technical support
  • Phone support and remote access for technical assistance
  • Training and certification programs
  • Lifetime warranty on the product
  • User-friendly manuals and how-to guides


Packing and Shipping:

Packaging and Shipping:
High Frequency Online UPS is packaged with bubble wrap, foam, and cardboard to ensure maximum protection during shipping. Once the UPS is packaged, it is shipped via a reliable courier service.

High Frequency 6kVA-20kVA Online Uninterrupted Power Supply with 220V Input Overload/Short Circuit/Over Temperature/Batt 0

FAQ:

Q1: What is the brand and model of the High Frequency Online UPS?
A1: The brand is G-Tech and the model is PT series.
Q2: Where is the High Frequency Online UPS made?
A2: The High Frequency Online UPS is made in China.
Q3: What is the output voltage of the High Frequency Online UPS?
A3: The output voltage of the High Frequency Online UPS is 220V.
Q4: What is the frequency of the High Frequency Online UPS?
A4: The frequency of the High Frequency Online UPS is 50/60Hz.
Q5: What is the power rating of the High Frequency Online UPS?
A5: The power rating of the High Frequency Online UPS is 1KVA-20KVA.
High Frequency 6kVA-20kVA Online Uninterrupted Power Supply with 220V Input Overload/Short Circuit/Over Temperature/Batt 1
