High Frequency Online UPS 20kVA-80kVA 0ms Transfer Time

High Frequency Online UPS 20kVA-80kVA 0ms Transfer Time

Place of Origin:

China

Brand Name:

G-Tech

Model Number:

PT series

Contact Us
Request A Quote
Product Details
Output Power Factor:
0.9
Output Voltage:
220V
Product Name:
High Frequency Online UPS
Frequency:
50/60Hz
Efficiency:
≥95%
Power Capacity:
6kVA-20kVA
Input Voltage:
220V
Transfer Time:
0ms
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiation
Packaging Details
Carton packing
Delivery Time
7-25workdays
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000000pcs
Product Description

Product Description:

The High Frequency Online Uninterruptible Power Supply System (UPS) is a reliable power supply solution for any mission-critical applications. It offers a full range of power capacities from 6kVA to 20kVA and has an output power factor of 0.9. It is designed with a LCD/LED display, as well as multiple protection features including overload, short circuit, over temperature, and battery low voltage protection. Most importantly, the transfer time from utility power to backup power is 0ms, ensuring a seamless and reliable power supply. The High Frequency Online UPS is a great choice for any business that requires a dependable and reliable power supply.



Features:

  • Product Name: High Frequency Online UPS
  • Display: LCD/LED
  • Power Capacity: 20kVA-80kVA
  • Interface: RS232
  • Output Power Factor: 0.9
  • High Frequency Online Emergency Power
  • High Frequency Online Uninterruptible Power Supply
  • High Frequency Online Power Supply System
  • High Frequency Online UPS



    MODEL PT33-20KS PT33-30KS PT33-40KS PT33-60KS PT33-80KS
    Rated power 20KVA/20KW 30KVA/30KW 40KVA/36KW 60KVA/60KW 80KVA/80KW
    INPUT
    Input Mode Three phases + N + G
    Rated Voltage 380/400/415Vac
    Voltage Range 208~478Vac
    Frequency 45-55Hz at 50Hz/54-66Hz at 60Hz (Adaptive)
    Range Power Factor ≥ 0.99
    Harmonic Current Distortion (THDi) ≤ 3%(100% nonlinear load )
    Bypass Frequency Range

    Upper limit of bypass protection voltage: 220V:﹢ 25%(﹢ 10%,﹢ 15%,﹢ 20% optional);

    230V:﹢ 20%(﹢ 10%,﹢ 15% optional);

    240V:﹢ 15%(﹢ 10% optional)

    Minimum bypass protection voltage: -45%( -20%,-30% optional)
    Bypass frequency protection range: ±10%
    OUTPUT
    Input Mode Three phases + G or Single phase + N
    Rated Voltage 380/400/415Vac or 220/230/240Vac
    Range Power Factor



    0.8

    Regulation Accuracy



    ±1%



    Output Frequency

    AC mode ±1%,±2%,±4%,±5%,±10% settable (50/60±0.2)Hz
    Battery mode (50/60±0.2%) Hz
    Load Peak Ratio 3:1
    Output Voltage Distortion ≤ 2% with linear load
    ≤ 5% nonlinear load
    BATTERY
    Battery Voltage DC±192V/±204/±216V/±228/±240V (±16/17/18/19/20 pcs ) optional
    Charge Current 10A max
    OTHERS
    Transfer time AC mode to bypass mode: 0ms(following); AC mode to battery mode: 0ms
    Efficiency Normal mode≥ 94.5%
    Communication Interface



    USB,RS485, dry contact , parallel connection(optional), SNMP card(optional), relay card(optional)

    Standard YD/T1095-2008
    PROTECTION
    Overload





    Normal mode: load ≤ 110%,60min; ≤ 125%, 10 mins; ≤ 150%, 1min; ≥ 150% shutdown immediately

    Over heat Protection Normal mode: switch to bypass mode; Battery mode: turn off the output immediately
    Emergency Power Off(EPO) Shutdown the output immediately
    ENVIRONMENT
    Operating Temperature



    0℃~ 40℃

    Storage Temperature -25℃~ 55℃
    Relative Humidity 0 ~ 95% no condensation
    Altitude < 1500m,In case of exceeding 1500m, it shall be reduced according to GB/T 3859.2
    PHYSCIAL
    Dimension W * D * H(mm)



    724X250X534



    724X301X961

    Net Weight(kg) 45 46 48 80.5

    82.5




Applications:

G-Tech PT series High Frequency Online UPS are ideal for providing reliable and secure power to mission critical systems. These high frequency online UPS are designed to provide continuous and uninterrupted power for all applications. With a 0ms transfer time, the G-Tech PT series High Frequency Online UPS ensures a seamless transition from utility power to battery power, and vice versa. The built-in RS232 interface allows for connection to a UPS management software for monitoring and control. This high frequency online UPS is designed with an input voltage of 220V and an output voltage of 220V. It is the perfect power protection solution for your business or home.

The G-Tech PT series High Frequency Online UPS is the ideal solution for high frequency online power security. With its 0ms transfer time, it ensures a reliable and secure power supply for all critical systems. This UPS system is designed to provide the highest level of power protection in any application. It is perfect for providing high frequency online uninterrupted power for PCs, servers, networks, and telecom systems. The built-in RS232 interface allows for connection to a UPS management software for monitoring and control.

G-Tech PT series High Frequency Online UPS is the perfect solution for your high frequency online power security needs. With its 0ms transfer time, it ensures a seamless transition from utility power to battery power, and vice versa. This UPS system is designed to provide the highest level of power protection in any application. It is perfect for providing high frequency online uninterrupted power for PCs, servers, networks, and telecom systems. With its input voltage of 220V and output voltage of 220V, the G-Tech PT series High Frequency Online UPS is the ideal power protection solution for your business or home.



Packing and Shipping:

Packaging and Shipping for High Frequency Online UPS

The High Frequency Online UPS is packaged in a cardboard box with a styrofoam lining to ensure protection during shipping.

The package is labeled with all relevant product information, including product name, model number, serial number, and date of manufacture. It also includes a list of included accessories.

The package is shipped using a reliable carrier service with insurance and tracking for added security.

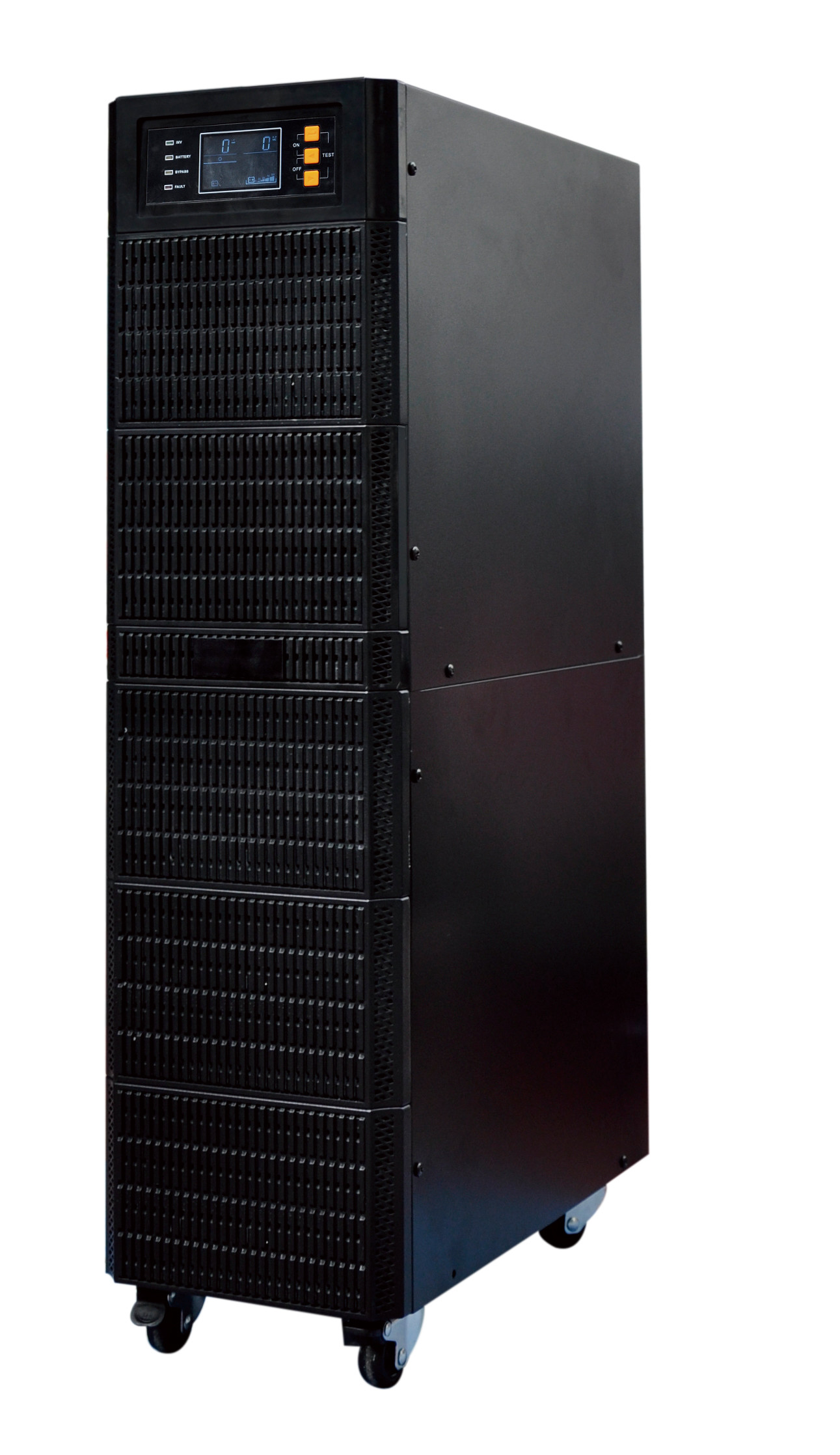

High Frequency Online UPS 20kVA-80kVA 0ms Transfer Time 0



FAQ:

Q: What is G-Tech PT series?

A: G-Tech PT series is a high frequency online UPS produced by G-Tech, a top UPS manufacturer from China.

Q: What are the advantages of G-Tech PT series?

A: G-Tech PT series is designed with high frequency technology, providing reliable and stable power for your equipment. This series also has an advanced protection system to ensure the safety of your equipment.

Q: What is the input voltage of G-Tech PT series?

A: The input voltage of G-Tech PT series is 220VAC, 50Hz.

Q: What is the output voltage of G-Tech PT series?

A: The output voltage of G-Tech PT series is 220VAC, 50Hz.

Q: How long is the warranty period of G-Tech PT series?

A: G-Tech offers 3-year warranty for G-Tech PT series.

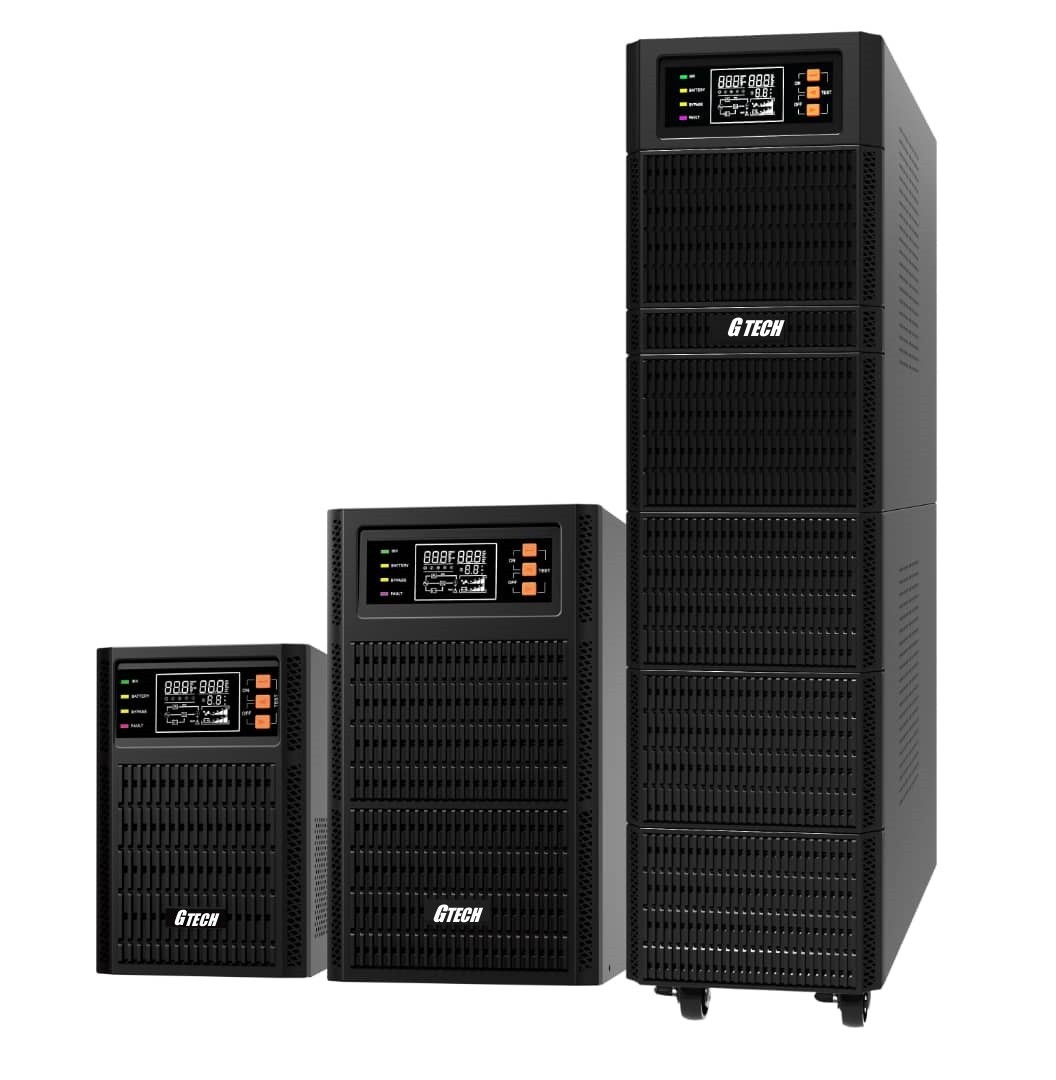

High Frequency Online UPS 20kVA-80kVA 0ms Transfer Time 1
