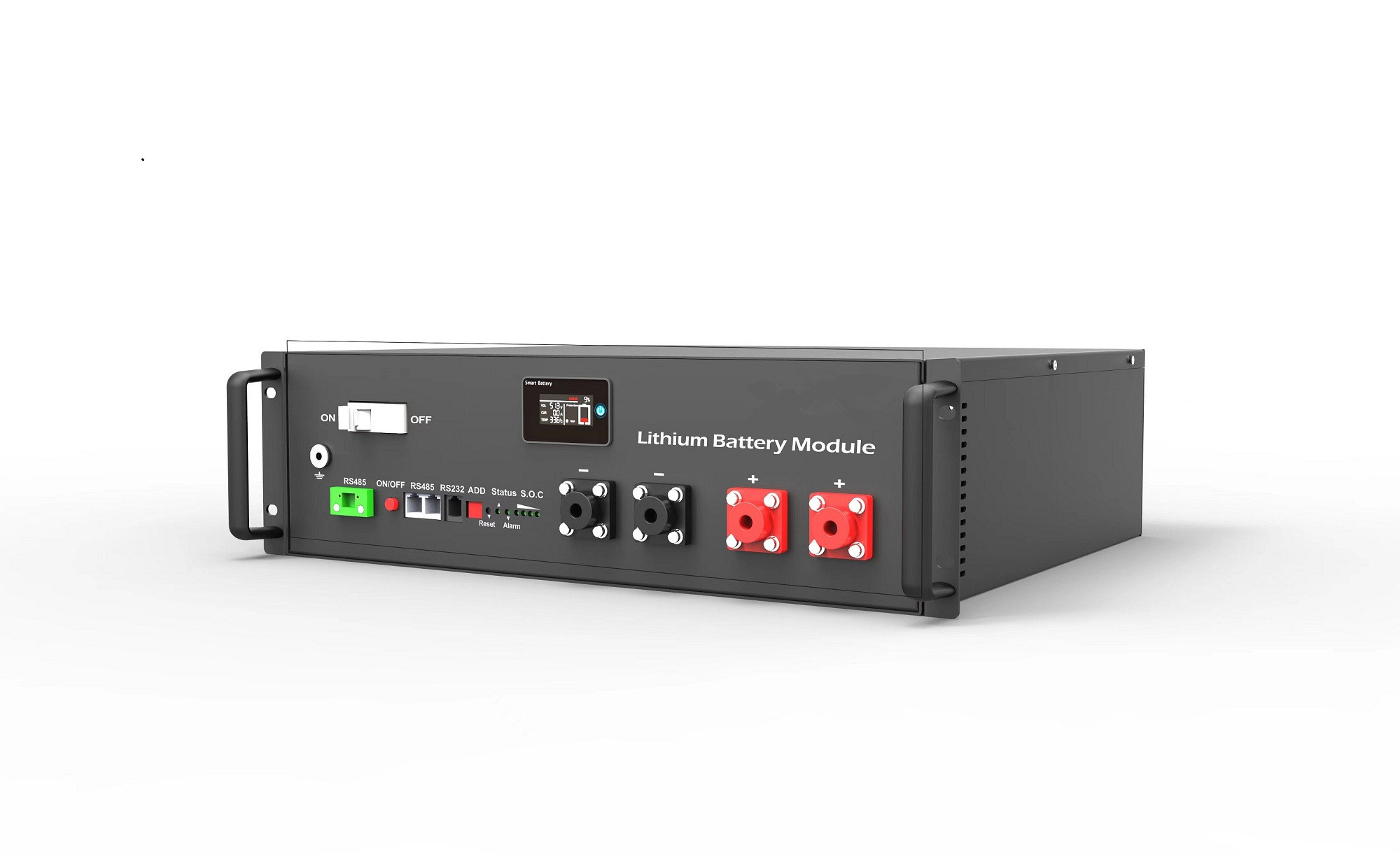

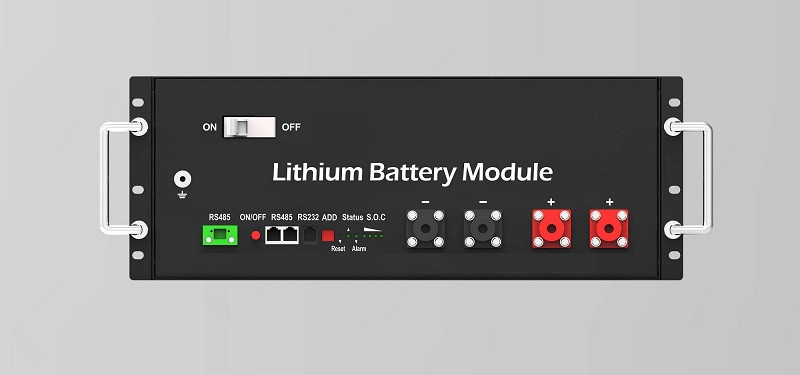

High Performance 48V100Ah LiFePO4 Battery Pack, High Capacity, Low Weight

High Performance 48V100Ah LiFePO4 Battery Pack, High Capacity, Low Weight

Place of Origin:

China

Brand Name:

Gtech

Certification:

UL, CE, UN38.3, MSDS

Model Number:

LFP48-100

Contact Us
Request A Quote
Product Details
Warranty:
3-5 Year
Max Discharge Current:
100A
Operating Temperature Range:
-20℃~65℃
Voltage:
48V
Discharge Temperature Range:
-20℃~65℃
Storage Temperature Range:
-20℃~45℃
Discharge Cut-off Voltage:
2.5 (0℃ ) 2.0 (-20℃)
Charge Temperature Range:
0℃~65℃
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Payment Terms
Western Union, T/T, L/C
Product Description

This LiFePO4 Battery Pack is a powerful and reliable Lithium-Iron-Phosphate-Battery-Pack, ideal for all your energy storage needs. It has a capacity of 100Ah, and is made with Lithium-Ion-Phosphate-Battery technology, giving it a maximum discharge current of 100A and a cycle life of up to 5000 Times. The battery has a charge cut-off voltage of 3.65V, making it a very safe and efficient energy storage solution.

Product Description:

This LiFePO4 Battery Pack is a Lithium-Iron-Phosphate-Cell-Pack that provides long-term reliability and high cycle life. It is a Lithium-Ion-Phosphate-Battery which has a maximum discharge current of 100A and a charge cut-off voltage of 3.65V. The Lithium-Iron-Phosphate-Cell-Pack has a charge temperature range of 0℃~65℃ and a cycle life of up to 5000 times, making it suitable for various applications. The operating temperature range for this LiFePO4 Battery Pack is -20℃~65℃, so it can be used in any kind of environment. With its high cycle life and high performance, this Lithium-Iron-Phosphate-Cell-Pack is an ideal choice for numerous applications.

LiFePO4 battery pack has below advantages:

Longer Cycle Life
>5000cycles @1C 100%D0D Offersup to 20times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership
Superior Safety
Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situration
Balancing
BMS with balancing function
Lighter Weight
About 40% of the weight of a comparable lead acid battery A 'drop in'replacement for lead acid batteries
Winder Temperature Range
.-20 ℃ to 60 ℃

Applications:

Gtech LiFePO4 Battery Pack (Model Number: LFP48-100) is a high performance, long-lasting power source, designed for a wide range of applications and industries. This LiFePO4 Cell Pack provides a dependable and stable source of energy, with a voltage of 3.2V, a maximum charge current of 100A, and a storage temperature range of -20℃~45℃. The discharge temperature range is -20℃~65℃. Gtech LiFePO4 Battery Pack is certified by UL, CE, UN38.3, and MSDS. It comes with a warranty of 3-5 Years, and the minimum order quantity is 1. The price is negotiable.

Gtech LiFePO4 Battery Pack is suitable for a variety of applications, such as electric vehicles, medical equipment, consumer electronics, and more. It is designed for extended use, providing long-term, reliable power in a wide range of environments. With its high quality and performance, Gtech LiFePO4 Battery Pack is an ideal choice for any application that requires a reliable and efficient power source.

Specification:

NO. Item Specifications
1 Typical Capacity 100Ah @ 0.2C Discharge
Minimum capacity 100Ah @ 0.2C Discharge
2 Nominal voltage 48V
3 Standard Charge CC/CV,0.2C,54.8V
4 Standard Discharge 37.5V
5 End-of-charge Voltage 55.5V±0.2V
6 End-of-discharge Voltage 37.5V
7 Max Discharge Current 100A
8 Initial Impedance ≤200mΩ
9 Weight Approx:37.5Kg
10 Operating temperature Charging: 0℃~45℃
Discharging:-20℃~60℃
11 Appearance Without scratch, distortion, contamination and leakage

Customization:

We provide customized Lithium-Ion-Phosphate-Battery and LiFePO4-Cell-Pack, Lithium-Iron-Phosphate-Cell-Pack services with brand name Gtech. Our model number is LFP48-100, and it is certified by UL, CE, UN38.3, MSDS. The minimum order quantity is 1 and the price is negotiable. The voltage is 3.2V, and cycle life is 5000 times. The max charge current is 100A, and the discharge cut-off voltage is 2.5 (0℃ ) 2.0 (-20℃). The discharge temperature range is -20℃ ~ 65℃.

Payment Terms:

Payment Term T/T EXW
FOB 30% T/T in advance, balance paid before shipment
CNF(CFR) 30% T/T in advance,
CIF balance paid againist copy of B/L
L/C , Western Union, Paypal
Delivery Time 7-15 working days after down payment received

Support and Services:

LiFePO4 Battery Pack Technical Support and Service

We offer technical support and service for LiFePO4 Battery Pack. Please contact us for the following:

  • Technical advice regarding product use and installation
  • Troubleshooting and repair
  • Software updates
  • Compatibility testing
  • Product warranty information

Our technical support and service team is available to answer your questions quickly and provide reliable solutions.



Packing and Shipping:

LiFePO4 Battery Pack Packaging and Shipping:

The LiFePO4 Battery Pack should be packaged in a cardboard box with a size that ensures that it is not damaged during transit. The box should be properly sealed and labeled to indicate its contents. Inside the box, the LiFePO4 Battery Pack should be cushioned and protected from any external forces or damage. The battery should also be properly secured so that it is not loose within the box.

The LiFePO4 Battery Pack should also be shipped in accordance with applicable local, state, and federal regulations. This includes taking into account any regulations regarding hazardous materials. The shipping container should be clearly labeled and should include a return address and contact information. It is also important to make sure that the battery is properly charged before shipping.
