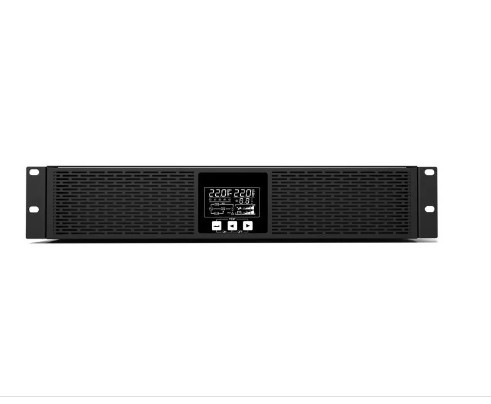

Line Interactive G Tech Pure Sine Wave UPS Power Supply 1KVA 5KVA

Line Interactive G Tech Pure Sine Wave UPS Power Supply 1KVA 5KVA

G Tech Pure Sine Wave UPS

5KVA Pure Sine Wave UPS

Line Interactive UPS Power Supply

Brand Name:

G-tech UPS

Contact Us
Request A Quote
Product Details
Payment & Shipping Terms
Payment Terms
L/C, T/T
Product Description

Pure Sine Wave Online Interactive UPS: A Detailed Description



A Pure Sine Wave Online Interactive UPS is an uninterruptible power supply that produces a high quality, pure sinusoidal output waveform. This type of UPS is designed for power sensitive equipment, like computers, medical equipment, and other critical electronic devices. The range of this UPS extends from 1kVA to 5kVA, making it suitable for a wide range of applications.



One of the significant advantages of this UPS is its dual CPU control. This feature ensures that the UPS operates smoothly and precisely. The monitoring and control of the input and output voltage are efficient. The advanced design of this UPS ensures a more stable output waveform, making it compatible with different loads.





Another benefit of this UPS is its low noise setting. The UPS produces minimal noise during operation, which makes it an ideal choice for noise-sensitive environments. The production of pure sinusoidal output also means that the UPS is less likely to cause electrical noise in connected devices.

Line Interactive G Tech Pure Sine Wave UPS Power Supply 1KVA 5KVA 0



Pure sine wave output waveform means that the power is clean and stable, without voltage fluctuations, and it is compatible with various loads, including sensitive electronic equipment. The high-quality output waveform of this UPS guarantees reliable power to devices connected to it.



This UPS is also compatible with generators, which makes it a versatile power backup solution.

This UPS provides automatic switchover to battery mode in case of input overvoltage or undervoltage, ensuring that vital equipment remains operating in the event of electrical disturbance. The UPS also has overcurrent and short circuit protection, which increases its reliability and avoids equipment damage.







This UPS is also designed to provide extended power backup time. Users can connect external battery packs to increase the power backup time and cater to their individual needs.





The UPS is equipped with a powerful charging system that allows for fast charging of batteries. The charging current options available are 1A, 3A, 5A, 10A, or 20A, providing users with flexibility and enabling them to choose the most suitable option for their needs.

Line Interactive G Tech Pure Sine Wave UPS Power Supply 1KVA 5KVA 1

In conclusion, the Pure Sine Wave Online Interactive UPS is a reliable, high-quality power backup solution for different applications. The features of this UPS make it an ideal choice for all types of sensitive electronic equipment. Whether it is for industrial, commercial, or residential use, the Pure Sine Wave Online Interactive UPS is an excellent choice for anyone who values stability, reliability, and efficiency.



Specification:



Model # SL-1K SL-1.5K SL-2K SL-3K SL-5K SL-1KL SL-1.5KL SL-2KL SL-3KL SL-5KL
Capacity 1000VA/700W 1500VA/1050W 2000VA/1400W 3000VA/2100W 5000VA/3500W 1000VA/700W 1500VA/1050W 2000VA/1400W 3000VA/2100W 5000VA/3500W
Display LCD
AC Mode
Input voltage range 145~275Vac
Input frequency 50Hz (48Hz-54Hz)
Output voltage range 200~240Vac
Efficiency ≥ 96% (AC mode)
Inverter Mode
Output voltage range 220Vac±5%
Output frequency 50±0.5Hz
Output wave form Pure sine wave
Transfer time Typical 2~6ms, Max.10ms.
Overload capability Automally shut down in 60sec while with 110% load, and shut down in 5sec while with 120% load
BATTERY
QTY & capacity of battery 2 pc*12V7Ah 2 pc*12V9Ah 4pcs*12V9Ah 4pcs*12V9Ah 4pcs*12V17Ah External batteries(24V), capacity depends on user's choice. External batteries(48V), capacity depends on user's choice.
Charging period 6~8 hours recover to 90% capacity   Depends on the batteries connected.
Charging current 2-5A   3-20A
MANAGEMENT
USB Optional
PROTECTION
PROTECTIONS 1. Auto re-starts when AC recovers
2. Automatic charging (offline charging)
3. Battery low voltage protection
4. Overload & Short circuit protection
4.Over current protection (Breaker for AC mode; System automaticlly shut down wihin 20ms in Inverter mode).
