Place of Origin:
China
Brand Name:
OEM
Certification:
UL, CE, UN38.3, MSDS
Model Number:
LFP48-100

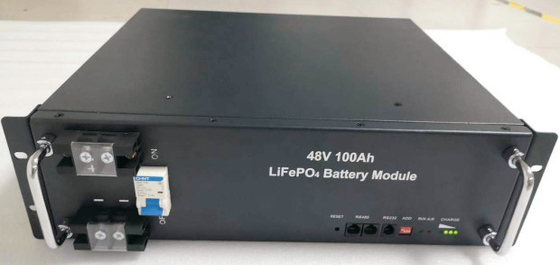

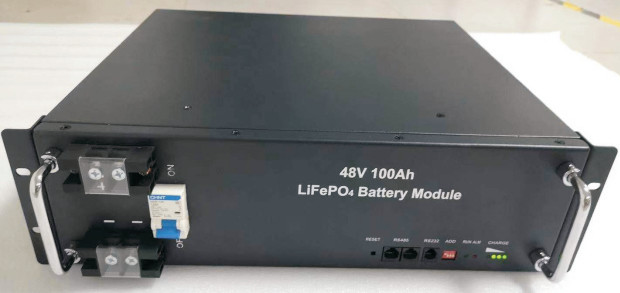

Our LiFePO4 battery pack is a Lithium-Iron-Phosphate-Cell-Pack with maximum charge current of 100A and 100Ah capacity. This battery pack is designed to provide a long cycle life of up to 5000 times with a 3 year warranty. It is the perfect solution for those looking for reliable, high performance LiFePO4-Battery. Our LiFePO4-Battery Pack can be charged quickly and safely with maximum Charge-Current of 100A.
The LiFePO4-Battery Pack is designed to be both efficient and reliable, providing high performance and long cycle life. It is also designed to be safe and secure, with advanced safety features that protect the battery from overcharging, discharging and other potential risks. The LiFePO4-Battery Pack is also designed to be lightweight and compact, making it easy to transport and store.
Our LiFePO4-Battery Pack is the perfect solution for those looking for reliable, high performance LiFePO4-Battery. It is the perfect choice for those looking for a long cycle life, high performance and safety. With our LiFePO4-Battery Pack, you can charge quickly and safely with maximum Charge-Current of 100A, and enjoy a long cycle life of up to 5000 times with a 3 year warranty.
| MODEL # | LFP 24-100 | LFP 48-50 | LFP 48-100 |
| SPECIFICATION | |||
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 |
| Battery Model | 25.6V100AH | 51.2V50AH | 51.2V100AH |
| Nominal Capacity(25℃,0.2C)WH | 2560Wh | 2560Wh | 5120Wh |
| Adjustable working voltage(Vdc) | 22.4～29.2V | 44.8～58.4V | 44.8～58.4V |
| Folat Charge Voltage(Vdc) | 28V | 56V | 56V |
| Max.Continuous discharge current(A) | 100 | 100 | 100 |
| Max.pulse discharge current(A) | 150A 1Sec. | 100A 1Sec. | 150A 1Sec. |
| Max.Continuous charge current(A) | 100 | 50 | 100 |
| Cycle life(+25℃ 0.2C 80% DOD) | ＞5000 Cycles | ＞5000 Cycles | ＞5000 Cycles |
| Cell Equalizer Current(A | 0.1～5A Max.(optional) | 0.1～5A Max.(optional) | 0.1～5A Max.(optional) |
| Terminal | M6 | ||
| Storage duration | 6 months at 25℃ | ||
| Safety standard | IEC62619,UN38.3,MSDS,CE | ||
| Communication function | RS484/UART/SNMP/Wifi/Bluetooth | ||
| PROTECTION | |||
| Protection | Overcharge protectionOverdischarge protectionOvercurrent protection Shortcircuit protectionOvertemperature protection | ||
| AMBIENT | |||
| Noise(dB) | ＜40dB(1 meter) | ||
| Working temperature | -20℃～+60℃ | ||
| Humidity | 0～95%(no condensation) | ||
| Altitude(m) | <3000 | ||
| DIMENSION | |||
| L*W*H( size)mm | L405*W483*H178mm | L655*W483*H178mm | |
| L*W*H(package size)mm | L440*W518*H213mm | L690*W518*H213mm | |
| Net Weight(Kg): | Approx.35kg | Approx.72kg | |
| Gross Weight(Kg): | Approx.39kg | Approx.78kg |
|
The LFP-Battery LiFePO4 Cell Pack is an OEM battery pack that is manufactured by a reputable company in China. It is UL certified and UN38.3 compliant, as well as having MSDS certification, indicating its high quality and reliability. This LiFePO4 Cell Pack is a great choice for those who are looking for an energy-efficient, high-performance battery pack that can provide superior performance with minimal maintenance. It is available in a variety of sizes and capacities, ranging from 100Ah to 4800WH, and can be custom-fit to an individual's needs. It also has a maximum charge current of 100A and is capable of up to 5000 cycles, making it an excellent choice for long-term applications. The price of the LiFePO4 Cell Pack is negotiable and the minimum order quantity is 1.
We offer technical support and services for our LiFePO4 Battery Pack product. Our team of highly experienced and knowledgeable engineers, technicians, and customer service representatives are here to help you get the most out of your LiFePO4 Battery Pack.
We provide a wide range of services, including:
If you have any questions or concerns about your LiFePO4 Battery Pack, don't hesitate to contact our customer service team. We are dedicated to providing you with the best possible service and support.
LiFePO4 Battery Pack should be packaged in a sturdy cardboard box, with the edges and corners reinforced to protect against damage. It should be cushioned with at least 2 inches of foam or bubble wrap. The battery should be placed in a plastic bag to protect against short circuits. All components of the battery pack should be secured with zip ties.
The shipping label should include the address of the recipient, the shipping date, and the weight of the package. A tracking number should be included if possible. The package should be marked with "Fragile: Handle With Care" to prevent damage during shipping.
