4800WH 100Ah Lithium Iron Phosphate Battery pack M6 Terminal

4800WH 100Ah Lithium Iron Phosphate Battery pack M6 Terminal

M6 Terminal Lithium Iron Phosphate Battery

4800WH Lithium Iron Phosphate Battery

Phosphate Lithium LiFePO4 Battery

Place of Origin:

China

Brand Name:

OEM

Certification:

UL, CE, UN38.3, MSDS

Model Number:

LFP48-100

Contact Us
Request A Quote
Product Details
Cycle Life:
5000 Times
Max Charge Current:
100A
Capacity:
100Ah
Warranty:
3 Year
Energy:
4800WH
Battery Type:
LiFePO4
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Carton packing
Product Description

Product Description:

LiFePO4 Battery Pack

Our LiFePO4 Battery Pack is designed to provide reliable, long-lasting power performance. It is made with high-quality Lithium-Iron-Phosphate (LiFePO4) cells, providing 4800Wh energy with 100Ah capacity. The battery pack is able to withstand up to 5000 charge-discharge cycles and can be charged with a maximum current of 100A. Moreover, our LiFePO4 Battery Pack is covered by a 3 year warranty to ensure that your investment is secure.

4800WH 100Ah Lithium Iron Phosphate Battery pack M6 Terminal 0

Features:

  • Product Name: LiFePO4 Battery Pack
  • Max Charge Current: 100A
  • Cycle Life: 5000 Times
  • Energy: 4800WH
  • Warranty: 3 Year
  • Capacity: 100Ah
  • Technology: Lithium-Ion-Phosphate-Battery (LiFePO4)


Technical Parameters:

MODEL # LFP 24-100 LFP 48-50 LFP 48-100
SPECIFICATION
Battery Type LiFePO4 LiFePO4 LiFePO4
Battery Model 25.6V100AH 51.2V50AH 51.2V100AH
Nominal Capacity(25℃,0.2C)WH 2560Wh 2560Wh 5120Wh
Adjustable working voltage(Vdc) 22.4~29.2V 44.8~58.4V 44.8~58.4V
Folat Charge Voltage(Vdc) 28V 56V 56V
Max.Continuous discharge current(A) 100 100 100
Max.pulse discharge current(A) 150A 1Sec. 100A 1Sec. 150A 1Sec.
Max.Continuous charge current(A) 100 50 100
Cycle life(+25℃ 0.2C 80% DOD) >5000 Cycles >5000 Cycles >5000 Cycles
Cell Equalizer Current(A 0.1~5A Max.(optional) 0.1~5A Max.(optional) 0.1~5A Max.(optional)
Terminal M6
Storage duration 6 months at 25℃
Safety standard IEC62619,UN38.3,MSDS,CE
Communication function RS484/UART/SNMP/Wifi/Bluetooth
PROTECTION
Protection Overcharge protectionOverdischarge protectionOvercurrent protection Shortcircuit protectionOvertemperature protection
AMBIENT
Noise(dB) <40dB(1 meter)
Working temperature -20℃~+60℃
Humidity 0~95%(no condensation)
Altitude(m) <3000

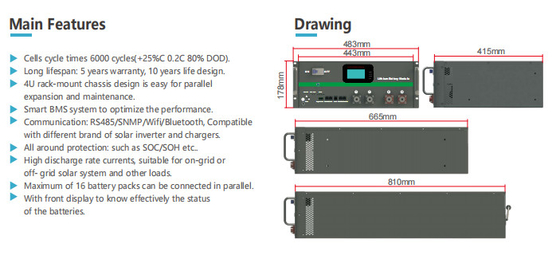

DIMENSION
L*W*H( size)mm L405*W483*H178mm L655*W483*H178mm
L*W*H(package size)mm L440*W518*H213mm L690*W518*H213mm
Net Weight(Kg): Approx.35kg Approx.72kg
Gross Weight(Kg): Approx.39kg Approx.78kg


Applications:

LiFePO4 Battery Pack is a reliable and efficient choice for any application requiring a powerful power source. This battery pack, made by OEM, is certified with UL, CE, UN38.3 and MSDS. It has a minimum order quantity of 1 and a negotiable price. This LiFePO4 cell pack has a 4800WH energy, battery type LiFePO4, max charge current of 100A, 3-year warranty and 100Ah capacity. This is a trustworthy and high-performance battery pack, ideal for any application that needs a reliable power source. OEM's LiFePO4 Battery Pack is certified with UL, CE, UN38.3 and MSDS, making sure that it is a secure and long-lasting battery. Its LiFePO4 cells are of the highest quality and its maximum charge current of 100A allows it to be widely used in a variety of applications. This battery pack has an impressive energy of 4800WH, which can last for long periods of time. It also has a large capacity of 100Ah, ensuring that it can store a lot of energy. Moreover, it comes with a 3-year warranty, making sure that it is a reliable and secure choice. In summary, OEM's LiFePO4 Battery Pack is a powerful and efficient choice for any application that requires a reliable power source. Its certified with UL, CE, UN38.3 and MSDS and has a minimum order quantity of 1. Its energy is 4800WH, battery type LiFePO4, max charge current of 100A, 3-year warranty and 100Ah capacity.



Support and Services:

LiFePO4 Battery Pack Technical Support and Service

We provide technical support and service for our LiFePO4 Battery Pack products. Our team of experienced engineers and technicians is available to answer your questions and help you troubleshoot any issue with your battery pack.

We offer technical support via phone, email, and live chat. If you have any questions about our LiFePO4 Battery Pack products, please feel free to reach out to us and we will be happy to help.

For any technical issues, our team can assist you with diagnostics, troubleshooting, and repair. We also provide training and installation services to ensure you are getting the most out of your LiFePO4 Battery Pack.

If you have any questions or need help with your LiFePO4 Battery Pack, please don't hesitate to contact us. We are here to help you make the most of your LiFePO4 Battery Pack.



Packing and Shipping:

Packaging and Shipping

LiFePO4 Battery Pack will be packaged and shipped in a secure shipping box. The box should be strong enough to protect the battery pack during transit. It should also have adequate cushioning to prevent any damage to the battery pack. We recommend using materials such as bubble wrap, foam, or Styrofoam to ensure the battery pack is safe and secure.

The shipping box should also be clearly labeled with the following information:

  • Product Name: LiFePO4 Battery Pack
  • Sender Name and Address
  • Receiver Name and Address
  • Shipping Method

We recommend using a reliable and reputable shipping service for the delivery of the LiFePO4 Battery Pack. The use of tracking numbers can also help ensure that the package is delivered on time and without incident.4800WH 100Ah Lithium Iron Phosphate Battery pack M6 Terminal 1

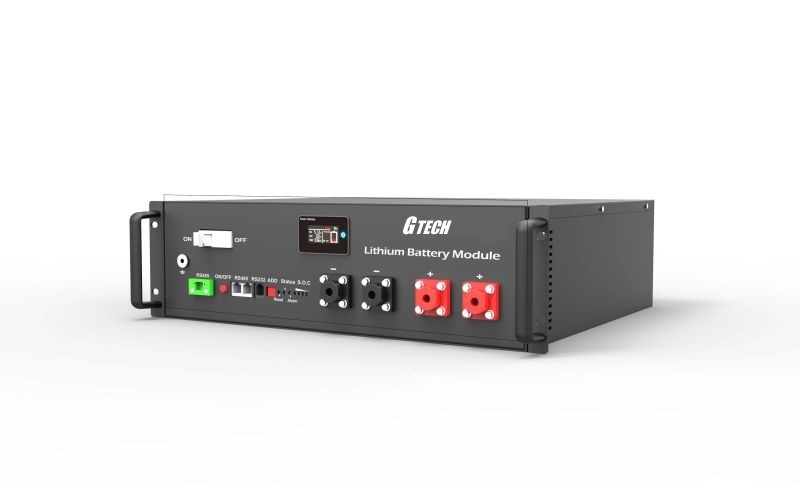

4800WH 100Ah Lithium Iron Phosphate Battery pack M6 Terminal 2
