4800WH 100Ah LiFePO4 Battery Pack Lithium Iron Phosphate Cell

4800WH 100Ah LiFePO4 Battery Pack Lithium Iron Phosphate Cell

Phosphate LiFePO4 Battery Pack

4800WH LiFePO4 Battery Pack

4800WH 100Ah Lithium Iron Phosphate Cell

Place of Origin:

China

Brand Name:

OEM

Certification:

UL, CE, UN38.3, MSDS

Model Number:

LFP48-100

Contact Us
Request A Quote
Product Details
Cycle Life:
5000 Times
Warranty:
3 Year
Battery Type:
LiFePO4
Energy:
4800WH
Max Charge Current:
100A
Capacity:
100Ah
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Carton packing
Product Description



Product Description:

LiFePO4 Cell Pack is a high performance battery pack with an excellent cycle life of 5000 times, a maximum charge current of 100A, and a 3 year warranty. It's a perfect choice for applications requiring a reliable, long-lasting power supply. The LiFePO4 cell pack is made up of LiFePO4 cells, which are known for their high energy density, excellent safety features, and long life. With a total energy capacity of 4800WH, the battery pack provides a reliable and efficient power source for a wide range of applications. It's the perfect solution for those looking for a reliable, high-performance battery pack.

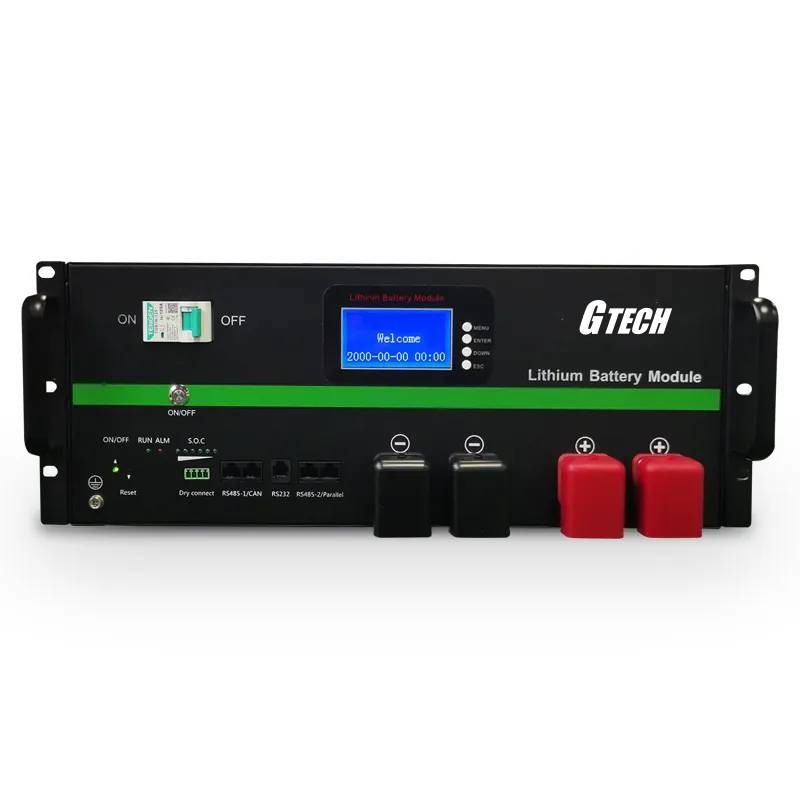

4800WH 100Ah LiFePO4 Battery Pack Lithium Iron Phosphate Cell 0

Features:

  • Product Name: LiFePO4 Battery Pack
  • Max Charge Current: 100A
  • Energy: 4800WH
  • Battery Type: LiFePO4-Cell-Pack, Lithium-Iron-Phosphate-Cell-Pack, LFP-Battery-Pack
  • Warranty: 3 Year
  • Cycle Life: 5000 Times


Technical Parameters:

MODEL # LFP 24-100 LFP 48-50 LFP 48-100
SPECIFICATION
Battery Type LiFePO4 LiFePO4 LiFePO4
Battery Model 25.6V100AH 51.2V50AH 51.2V100AH
Nominal Capacity(25℃,0.2C)WH 2560Wh 2560Wh 5120Wh
Adjustable working voltage(Vdc) 22.4~29.2V 44.8~58.4V 44.8~58.4V
Folat Charge Voltage(Vdc) 28V 56V 56V
Max.Continuous discharge current(A) 100 100 100
Max.pulse discharge current(A) 150A 1Sec. 100A 1Sec. 150A 1Sec.
Max.Continuous charge current(A) 100 50 100
Cycle life(+25℃ 0.2C 80% DOD) >5000 Cycles >5000 Cycles >5000 Cycles
Cell Equalizer Current(A 0.1~5A Max.(optional) 0.1~5A Max.(optional) 0.1~5A Max.(optional)
Terminal M6
Storage duration 6 months at 25℃
Safety standard IEC62619,UN38.3,MSDS,CE
Communication function RS484/UART/SNMP/Wifi/Bluetooth
PROTECTION
Protection Overcharge protectionOverdischarge protectionOvercurrent protection Shortcircuit protectionOvertemperature protection
AMBIENT
Noise(dB) <40dB(1 meter)
Working temperature -20℃~+60℃
Humidity 0~95%(no condensation)
Altitude(m) <3000

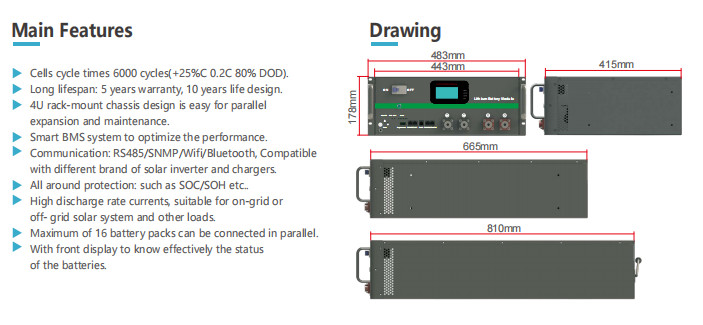

DIMENSION
L*W*H( size)mm L405*W483*H178mm L655*W483*H178mm
L*W*H(package size)mm L440*W518*H213mm L690*W518*H213mm
Net Weight(Kg): Approx.35kg Approx.72kg
Gross Weight(Kg): Approx.39kg Approx.78kg


Applications:

LiFePO4 Battery Pack

LiFePO4 Battery Pack, also known as LFP-Battery, is a Lithium-Iron-Phosphate-Cell-Pack made by OEM with UL, CE, UN38.3, and MSDS certifications. It is a Lithium-Ion-Phosphate-Battery-Pack that is energy efficient and has a long cycle life of up to 5000 times. The LiFePO4 Battery Pack has a capacity of 100Ah and an energy of 4800WH, and it is available in minimum order quantities of 1. The price is negotiable and it comes with a 3 year warranty.

Support and Services:

Technical Support and Service for LiFePO4 Battery Pack

We offer a full suite of technical support and services for our LiFePO4 Battery Packs. Our experienced technical team is dedicated to helping you get the most out of your product and maximizing its performance and reliability.

  • 24/7 online technical support
  • On-site maintenance and repair
  • Product installation and set-up
  • Software updates and upgrades
  • Troubleshooting and diagnostic services
  • Preventative maintenance plans
  • Battery pack reconditioning
  • Extended warranties



Packing and Shipping:



Packaging and Shipping for LiFePO4 Battery Pack:

The LiFePO4 Battery Pack should be packaged in a secure, protective box or container that prevents damage during shipping. The battery pack should also be secured to the box or container to prevent the pack from shifting during transport. The box or container should also be clearly labeled with the LiFePO4 Battery Pack's name, size, and weight.

When shipping the LiFePO4 Battery Pack, it should be done in a way that ensures safe delivery. The battery pack should be transported via ground shipping, and safety protocols should be followed to protect the pack from extreme temperatures, vibrations, and other environmental factors that could damage the pack.4800WH 100Ah LiFePO4 Battery Pack Lithium Iron Phosphate Cell 1

4800WH 100Ah LiFePO4 Battery Pack Lithium Iron Phosphate Cell 2
