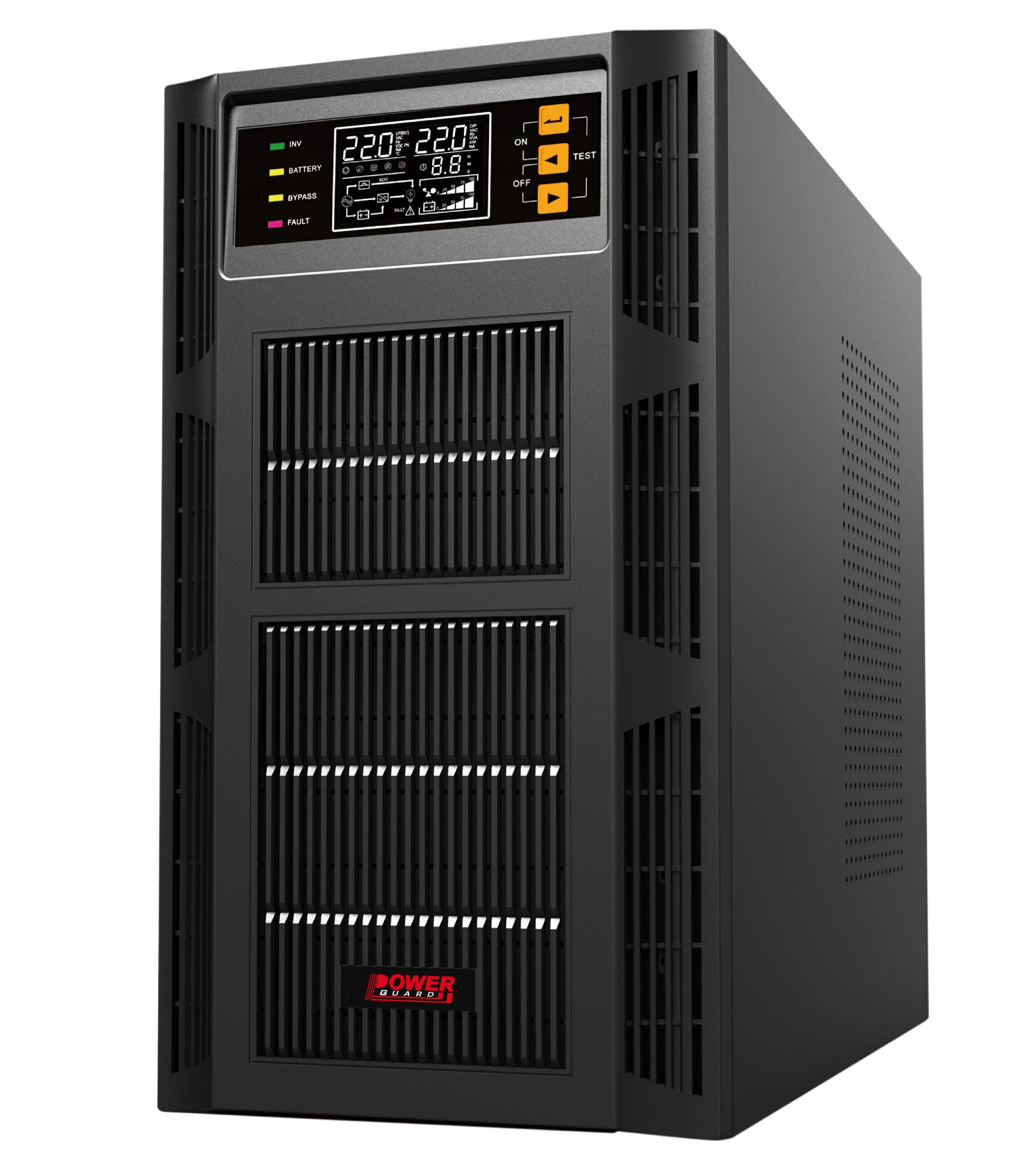

Power Guard High Frequency Online UPS Pure Sine Wave RS232 / Interlling Slot Selectable

220VAC High Frequency Online UPS Double Conversion Tower Mount Type

True Double-Conversion Onine UPS Tower Mount Type High Frequency Online UPS

• Feature

This is an online UPS with true double-conversion technology, ensuring high reliability. The microprocessor control system optimizes its performance. Its output power factor is 0.9, and it has a wide input voltage range, making it compatible with generators. The charger capacity can be expanded up to 6A for long-run models. The smart communication program works well with both USB and RS232 interfaces. The UPS operates at a high frequency while in online mode.

Production Introduction

This series UPS applies CPU intergrated control technology, which allows UPS to response prometly and accurately when power outage, high or low voltage, surge, transient or spike occurs while its protection port provides protection for special external devices, such as printers and so on. It possess automatic startup function,automatic voltage regulation function and a wide range of input voltage, so it is applicable to all kinds

of electric power environment. In addition, its design is humanized and elegant with LED or LCD display, those are tow alternatives.

• Model	PT-1KS	PT-2KS	PT-3KS	PT-6KS
  Capacity	1000VA/900W	2000VA/1800W	3000VA/2700W	6000VA/5400W
  INPUT
  Frequency Range	Transfer:160VAC 5%-300VAC 5%			46-54Hz same as AC(AC mode)
  	No-load: 110VAC 5%-300VAC 5%
  Phase	Single phase with ground			Single phase dual wires+Earth wire
  OUTPUT
  Voltage	220VAC±2%VAC
  Frequency Range	47-53Hz or 57-63Hz(Synchronized range)			50-60Hz Automatic sensing(AC Mode)
  	50Hz±0.25Hz or60Hz±0.3Hz(Batt.mode)
  Currrent crest factor	3:1
  Wave Form	Pure Sine Wave
  Battery
  Capacity of battery	12V/7-9AH			12V/7.5AH
  QTY	2-3PCS	6-8PCS	6-8PCS	16PCS
  Transfer time	0ms
  PHYSICAL
  Dimension(mm)	350*145*230	410*190*325		500*248*616
  Net weight(kg)	8.9/11.1	23.25/10.07	23.57/10.12	57
  Management
  Interface	RS232,Interlling Slot Selectable
