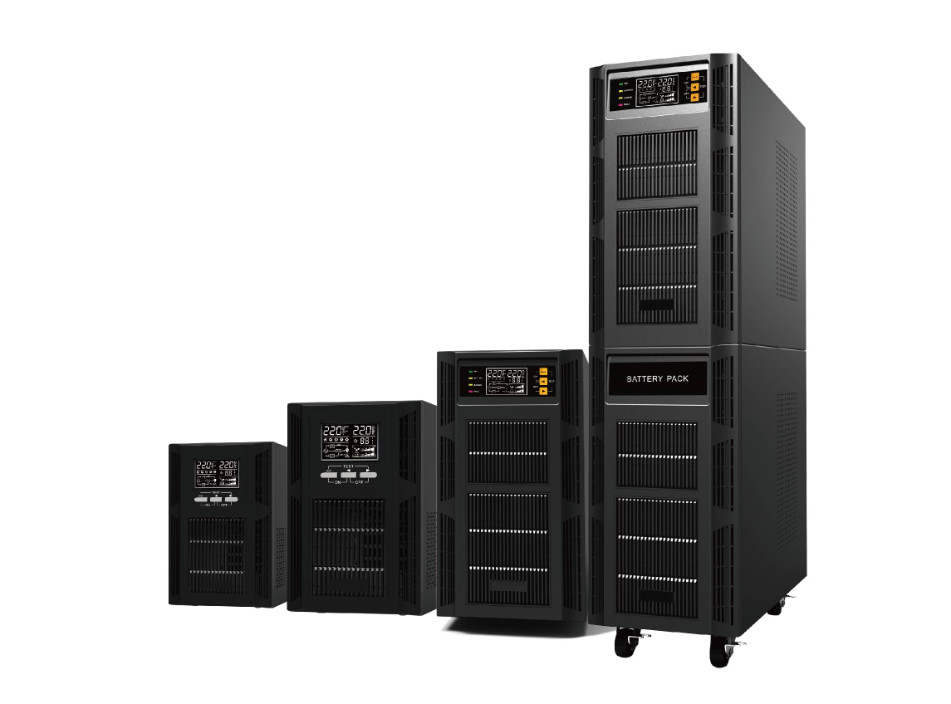

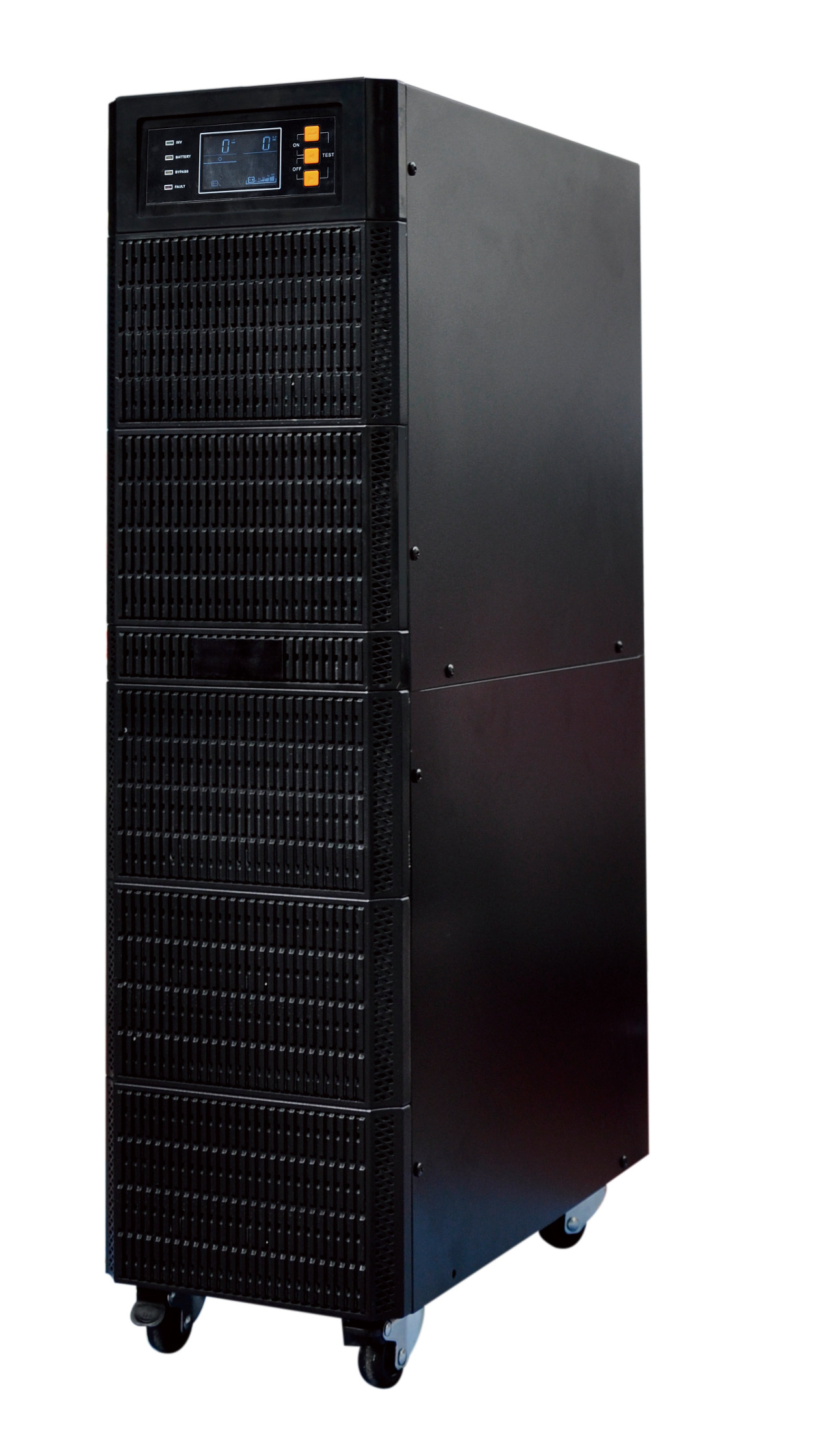

High Frequency 1kVA-10kVA Online Uninterrupted Power Supply With 0ms Transfer Time

Product Description:

High Frequency Online UPS is an emergency power system designed to provide reliable, high-performance, and uninterrupted power supply. The UPS system is a high frequency online emergency power system with a rated power capacity of 1kVA-10kVA. It is equipped with a 0ms transfer time, 1.0 output power factor, and 95.5% efficiency or higher. The system is also designed with multiple protections, including overload, short circuit, over temperature, and battery low voltage protection, ensuring power reliability and availability in any environment. Combined with its high-efficiency and robust design, High Frequency Online UPS is the perfect solution for any organizations looking for a reliable high frequency online uninterrupted power supply.

Features:

• Product Name: High Frequency Online UPS
• Efficiency: ≥95.5%
• Transfer Time: 0ms
• Output Power Factor: 1.0
• Power Capacity: 1kVA-10kVA
• Display: LCD
• High Frequency Online Electrical Protection
• High Frequency Online Power Supply System
• High Frequency Online Uninterrupted Power Supply

Technical Parameters:

Model #			PT-6KS		PT-6KL	PT-10KS	PT-10KL
Capacity			6KVA/6000W			10KVA/10000W
Front panel
Rear panel
Display			LCD
INPUT
Input voltage range			110~300VAC,110~176VAC,280~300VAC(power limited)
Input frequency range			50/60Hz±6Hz,± 10Hz (setable)
OUTPUT
Output voltage range			208/220/230/240VAC
Output frequency			AC mode: same as AC ,Battery mode:50/60Hz±1%
Wave form			Pure Sinewave
Transfer time			0ms
BATTERY
QTY & capacity of battery			20pcs*12V7Ah			----------	20pcs*12V7Ah	-----------
Charging period			4~6 hours recover to 90% capacity
PROTECTION & FUNCTION
PROTECTION			1. Battery low voltage protection 2. Overload protection 3. Short circuit protection
MANAGEMENT
RS232 & USB & EPO			Optional
PHYSICAL
Unit dimension (mm)			461*200*800		461*200*360	461*200*800	461*200*360
Master box dimension (mm)			605*300*989		585*300*520	605*300*989	585*300*520
Pcs in one master carton			1		1	1	1
Gross weight (1pc, kg)			61		14	61.5	14.8
Net weight (1pc, kg)			55		12.4	55.25	12.7

Support and Services:

High Frequency Online UPS product technical support and services include:

• 24/7 technical support
• Remote monitoring and diagnostics
• Timely and efficient repair service
• Software and firmware updates
• Easy and secure online access
• Replacement parts and components
• On-site maintenance and troubleshooting
